JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: JIANGSU HUACHENG
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: HC
Minimum Order Quantity: 5MT
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Application: Machinery Certificate: PED, ISO, BV, TUV
Product Name: Bearing Steel Tube Section Shape: Round
Standard: GB, SKF, ASTM, DIN, JIS, BS Technique: Seamless, Hot Rolled, Cold Drawn
High Light:

carbon steel tubing

,

thin wall steel tube


Product Description

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing





Quick Detail:



Products: JIS G4805 SUJ2 Stainless Bearing Steel Tube
Standard: GB / SKF/ ASTM / DIN / JIS / BS
Size(mm):

OD:8mm ~ 101.6mm

WT:1.0mm ~ 10mm

Length: Fixed(6m,9m,12,24m) or normal length(5-12m)





Description:



1. JIS G4805 SUJ2 main features and application
JIS G4805 SUJ2 is a kind of high-carbon chromium bearing steel. It has good synthesis performance.Quenching and tempering will make SUJ2 steel high and even hardness, and excellent abrasive resistance and fatigue strength. Good hot workability,after spheroidizing annealing, SUJ2 has good machinability, sensitive to white dot.
JIS G4805 SUJ2 is mainly used to manufacture internal-combustion engine,electric locomotive,machine tool,tractor,steel rolling equipment,driller,steel balls,roller,and axle sleeve of rail truck, mining machine spiale.
2. The equal material of  JIS G4805 SUJ2 in different standard.




JIS G4805

GB/T18254

ΓOCT 801

ASTM
A295

ISO683-17

DIN 17230

NF A35-565

SUJ2

GCr15

IIIX15

  52100

1

 100Cr 6

100Cr 6



JIS G4805 SUJ2 chemical composition by %:



C

Si

Mn

Cr

Mo

P

S

others

0.95-1.05

0.15-0.35

0.25-0.45

1.4-1.65

≤0.1

≤0.025

≤0.02

Ni≤0.30
Cu≤0.25
Ni+Cu≤ 0.5



JIS G4805 SUJ2 mechanical property and delivery condition:



 Category

Standard

Delivery  Condition

Anneal (soften or spheroidizing ) hardness  HBW

Hot rolled bar

JIS G4805

Hot rolled,hot rolled soften annealing,hot rolled spheroidizing annealing,hot rolled spheroidizing annealing skin,hot rolled soften annealing skin.

179-207

Forging bar

Cold drawn bar

Cold drawn or burnishing

Hot rolled tube/pipe

Hot rolled,hot rolled annealing burnishing

Cold drawn tube/pipe

Cold drawn

Steel  wire rod

Hot rolled or spheroidizing annealing

Wire

Annealing

Quenching HRC≥62

Wire

Annealing

φ≤10mm
Rm :590-760MPa
Φ>10mm
HBW≤229

Phosphorus cold drawn

φ≤10mm
Rm :≤ 850MPa
Φ>10mm
HBW≤229

Cold drawn,burnishing

--

Hot rolled or Forging bar,cold drawn bar and wire

Hot rolled,cold drawn,annealing

HBW 179-207





Applications:

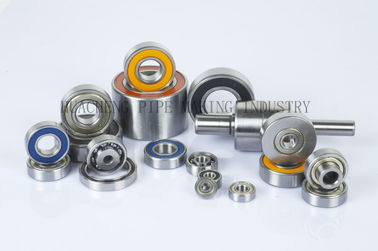

1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.





Competitive Advantage:



Huacheng Pipe Making Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.





Factroy Pictures:

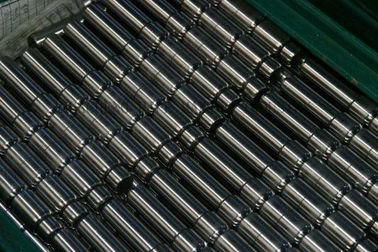

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 0



Pipe & Tube Processing

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 1

Factory Equipments:

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 2



Production Line:

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 3

Quality Control:



JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 4



Steel Pipe & Tube Application:

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 5

Package:

Export Standard / Wooden Box

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 6

Main Certificates:

PED ISO BV TUV etc.

JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 7

Main Customers:



JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 8JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing 9
