| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WUXI SYLAITH |
| Certification: | SGS ISO ROHS |
| Model Number: | A192 / A192M |
| Minimum Order Quantity: | 1MT |
| Price: | Negotiable |
| Packaging Details: | Standard waterproof package |
| Delivery Time: | 7-10 Days |
| Payment Terms: | TT / LC |
| Supply Ability: | 50000MT/Year |
| Surface Treatment: | Black Paiting Or Oil Painting | Model NO: | ASTM A192 Boiler Steel Pipe/Tube |
|---|---|---|---|
| Prodsuction Proces: | Cold Drawn With Heatreatment | Type: | Seamless Steel Pipe |
| Special Pipe: | API Pipe, Other, EMT Pipe, Thick Wall Pipe, Boiler Tube | Thickness: | 2.11-59.54 Mm |
| Length: | 5.8m, 6m, 12m | Tolerance: | ±1% |
| High Light: | seamless stainless steel tube,round steel tubes |
||
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released
Product Description:
Boiler seamless steel pipe application:
①General boiler tubes are mainly used to manufacture water wall tubes, boiling water tubes, superheated steam tubes, superheated steam tubes for locomotive boilers, large and small smoke tubes and arch brick tubes, etc.
②High-pressure boiler tubes are mainly used to manufacture superheater tubes, reheater tubes, gas guide tubes, main steam tubes, etc. of high-pressure and ultra-high-pressure boilers.
type.
|
Product Name
|
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released
|
|
Material
|
A53(A.B)A106 (A. B).0345,16Mn, 10#, 20#,45# S235JR. S355JR, Q320,Q360,Q410,Q460,Q490 ASTMA252, Gr.2,Gr.3.ST37, ST42, ST52, GrB, X42 X46 X52 X5 X6 X65 X70. 30CrMo .etc
|
|
Wall Thickness
|
2.11-59.54MM
|
|
Outer Diameter
|
13.7-1219.2MM
|
|
General size:
|
6×1 18×5 32×7-8 48×9-10 70×4-5 83×4-5 102×25-26 127×30-32
6×2 20×1-1.5 32×9-10 48×12-14 70×6-7 83×6-7 102×28-30 127×34-35 7×1 20×2-2.5 34×2-3 51×3-3.5 70×8-9 83×8-10 102×32 133×4-4.5 7×2 20×3-3.5 34×4-5 51×4-6 70×10-12 83×12-14 108×4-4.5 133×5-6 ....Can choose |
|
Length |
Length:Single random length/Double random length
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques |
|
Standard |
API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS ANSI B36.1
6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711 |
|
Grade
|
10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52 Grade A, Grade B, Grade C
|
|
Section Shape
|
Square, Rectangular, Round,
|
|
Technique
|
hot cold/hot cold Seamless steel pipe
|
|
Pipe Ends
|
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
|
|
Surface Treatment |
1. Galvanized,bare
2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
|
Naadloze stalen buis gewicht formule
|
[(buitendiameter - wanddikte)* wanddikte]* 0,02466 =kg/ m (gewicht per meter)
|
Chemical Composition:
|
Grade |
Mfg. Process |
Chemical composition(%) |
||||
|
C |
Si |
Mn |
P |
S |
||
|
ASTM A192 |
S |
0.06~0.18 |
0.25Max |
0.27~0.63 |
0.035Max |
0.035Max |
|
Grade |
Elongation % |
Tensile Test MPa or N/mm2 |
Hardness |
|
|
A |
Min Yield point |
Tensile Strength |
Rockwell |
|
|
ASTM A192 |
=35 |
=180 |
=325 |
77 HRB |
Factroy Pictures:
Pipe & Tube Processing:

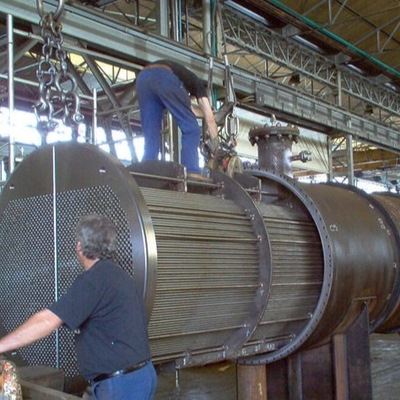

Application:
Packaging & Shippping:
Certificates:
FAQ:
