P265GH P235GH 25MnG Thick Wall Pressure Alloy Seamless Steel Pipe P195 TR2 P235 TR1 For Boiler Tube
Product Description:
Alloy seamless steel pipe is a kind of seamless steel pipe, and its performance is much higher than that of ordinary seamless steel pipe. Alloy seamless steel pipe contains elements such as silicon, manganese, chromium, nickel, molybdenum, tungsten, vanadium, titanium, niobium, zirconium, cobalt, aluminum, copper, boron, rare earth, etc.
| Product Name | Seamless Alloy steel pipe | |
| Material | Alloy Steel | |
| Surface | oiled, Polished, Brightness, Metallic color | |
| Standard | ASTM A106 A53 A192 A179 A210 A519 DIN17175 1629 2391 EN10216-1 10216-2 10305-1 and GB,JIS |
|
| Grade | P265GH,P235GH,P195 TR2,P235 TR1.etc | |
| Technique | Cold drawn & cold rolled | |
| Application | 1. Automotive and mechanical pipes | |
| 2. Petroleum cracking pipes | ||
| 3. High Pressure Boiler Pipe | ||
| 4. Low and middle pressure fluid transportation pipeline | ||
| 5. Chemical fertilizer equipment pipes | ||
| 6. Heat exchanger pipes | ||
|
Delivery Conditions |
1. BK (+C) | No heat treatment after last cold forming process. |
| 2. BKW (+LC) | After last heat treatment there is a light finishing pass (cold drawing) | |
| 3. BKS (+SR) | After the final cold forming process the tubes are stress relieve annealed. | |
| 4. GBK (+A) | After the final cold forming process the tubes are annealed in a controlled atmosphere. | |
| 5. NBK (+N) |
After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere. |
|
Chemical analysis [%]:
|
Steel |
Chemical analysis [%] |
||||||||||||
|
grade |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Ni |
V |
Nb |
Ti |
Al |
Cu |
|
P195TR1 |
<0,13 |
<0,35 |
<0,70 |
<0,025 |
<0,02 |
<0,30 |
<0,08 |
<0,30 |
<0,02 |
<0,01 |
<0,04 |
- |
<0,30 |
|
P195TR2 |
<0,13 |
<0,35 |
<0,70 |
<0,025 |
<0,02 |
<0,30 |
<0,08 |
<0,30 |
<0,02 |
<0,01 |
<0,04 |
>0,02 |
<0,30 |
|
P235TR1 |
<0,16 |
<0,35 |
<1,20 |
<0,025 |
<0,02 |
<0,30 |
<0,08 |
<0,30 |
<0,02 |
<0,01 |
<0,04 |
- |
<0,30 |
|
P235TR2 |
<0,16 |
<0,35 |
<1,20 |
<0,025 |
<0,02 |
<0,30 |
<0,08 |
<0,30 |
<0,02 |
<0,01 |
<0,04 |
>0,02 |
<0,30 |
|
P265TR1 |
<0,20 |
<0,40 |
<1,40 |
<0,025 |
<0,02 |
<0,30 |
<0,08 |
<0,30 |
<0,02 |
<0,01 |
<0,04 |
- |
<0,30 |
|
P265TR2 |
<0,20 |
<0,40 |
<1,40 |
<0,025 |
<0,02 |
<0,30 |
<0,08 |
<0,30 |
<0,02 |
<0,01 |
<0,04 |
>0,02 |
<0,30 |
Mechanical properties:
|
Code |
Tensile property |
Impact property |
|||||||||
|
Yield Strength(Mpa) |
Tensile strength Mpa |
Elongation % |
Min. impact absorbing energy (J) |
||||||||
|
Lengthways |
Crosswise |
||||||||||
|
W.T≤16 |
16<W.T≤40 |
40<W.T≤60 |
Lengthways |
Crosswise |
20°C |
0°C |
-10°C |
20°C |
0°C |
||
|
P195GH |
195 |
|
|
320-440 |
27 |
25 |
|
40 |
28 |
|
27 |
|
P235GH |
235 |
225 |
215 |
360-500 |
25 |
23 |
|
40 |
28 |
|
27 |
|
P265GH |
225 |
255 |
245 |
410-570 |
23 |
21 |
|
40 |
28 |
|
27 |
|
16Mo3 |
280 |
270 |
260 |
450-600 |
22 |
20 |
40 |
|
|
27 |
|
|
13CrMo4-5 |
290 |
290 |
280 |
440-590 |
22 |
20 |
40 |
|
|
27 |
|
|
10CrMo9-10 |
280 |
280 |
270 |
480-630 |
22 |
20 |
40 |
|
|
27 |
|
|
Steel |
Properties |
||||
|
grade |
ReH min [MPa] |
Rm min [MPa] |
A [%] |
Impact test [J] |
|
|
|
TN ≤ 16 |
16 < TN ≤ 25 |
|
|
at 0° C |
|
P195TR1 |
195 |
185 |
320 - 440 |
27 |
- |
|
P195TR2 |
195 |
185 |
320 - 440 |
27 |
40 |
|
P235TR1 |
235 |
225 |
360 - 500 |
25 |
- |
|
P235TR2 |
235 |
225 |
360 - 500 |
25 |
40 |
|
P265TR1 |
265 |
255 |
410 - 570 |
21 |
- |
|
P265TR2 |
265 |
255 |
410 - 570 |
21 |
40 |

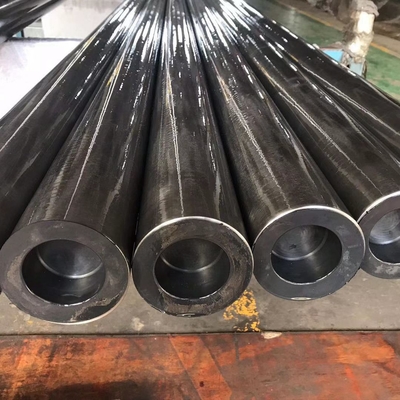

Detail photo:
Applications:
Factroy Pictures:
Pipe & Tube Processing:
Packaging & Shipping:
Certificates:
FAQ:
