ASME SA179 A179 A192 A213 A519 Galvanized Seamless Steel Tubes Cold - Drawn Petroleum Pipe

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: ASME SA179 A179 A192 A213 A519
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: 30%T/T in advance , T/T
Supply Ability: 8000 MT/Month
Detail Information
Application: Fluid Pipe Delivery Condition: Annealed Normalized Tempered Heat Treatment|BK|BKS|BKW|NBK|GBK
Ends Type: Plain Ends Bevel Ends Grade: Grade A|A179|SA179|A192|T4|T5|T11|T22|T2|St35|St45|St52|E235|T12|E355
Material: Carbon Steel Type: Seamless Steel Tubes
Standard: ASME SA179 ASTM A179 Surface Treatment: Varnish Galvanized
Technique: Seamless Cold Drawn
High Light:

seamless stainless steel tube

,

Seamless Steel Tubing


Product Description

ASME SA179 A179 A192 A213 A519 Galvanized Seamless Steel Tubes Cold - Drawn Petroleum Pipe



Quick Detail:



Standards: ASTM A179 (ASME SA179)

Grade: A179 SA179

Size: (mm)

OD: 6mm to 114mm;

WT: 0.5mm to 15 mm;

Length: 6 m ~ 25m



Related Specification Details



Name

SA179 cold drawn straight seamless steel tubes and pipes

Standard

Meet or exceed ASTM,ASME,API,ANSI and DIN standards.

ASTM A106/A179/A192/A210/A213/A519 etc.

DIN2391/DIN17175/EN10305 etc

GB8162/GB8163/GB3639 etc

Material

A179,St35,St45,St52,E215,E235,E355,10,20,

A106,A179,A192,A210,T11,T22,T12 etc

Size

Outer diameter:6-114.0mm

Wall thickness:0.5-15mm

Length:max 2400mm,generally 6000mm

Application

Cold drawn or cold rolled precision seamless steel tubes for hydraulic pressure and pneumatic

services.
For Auto use,machinery use,oil cylinder tube,motorcycle shock reducer use,auto shock reducer

inner cylinder,etc.

Seamless steel pipes for low and medium pressure boiler, high pressure boiler, ship-building,

Liquid service, petroleum cracking, chemical fertilizer equipment,Drawing-oil-equipment and structure purposes.

Business scope

DIN series cold drawn precision seamless steel tubes

DIN series cold rolled precision seamless steel tubes

Related coated and galvanized steel tubes

Rustproof phosphyorylated tube

Main characteric

No Oxidation Layer on the outer and inner walls;

No Leakage under high pressure;

No Crake under flating and flattening;

No distortion after cold bending;

High precision high cleanness;

Excellent brightness

cold drawn and hot finished

Superior performance for high pressure and temperature uses

Black finish and hot dip galvanized

Excellent corrosion resistance

Coating for protection

black painting,anti-rust oiled or varnish,also can be required according to customers' requirements



Grade and Chemical Composition (%)



STANDARD

GRADE

                           CHEMICAL COMPOSITION

C

Si

Mn

P

S

Cr

Mo

Cu

Ni

V

         ASTM A179

  A179

≤0.06-0.18

/

0.27-0.63

≤0.035

≤0.035











         ASME SA106

SA106B

0.170.25

≥0.1

0.701.00

≤0.030

≤0.030

≤0.035









         ASTM A106

    A

≤0.25

≤0.10

0.270.93

≤0.035

≤0.035

≤0.40

≤0.15

≤0.40

≤0.40

≤0.08

    B

≤0.30

≤0.10

0.291.06

≤0.035

≤0.035

≤0.40

≤0.15

≤0.40

≤0.40

≤0.08

    C

≤0.35

≤0.10

0.291.06

≤0.035

≤0.035

≤0.40

≤0.15

≤0.40

≤0.40

≤0.08

ASTM A53

    A

0.25

/

0.95

0.05

0.045

0.40

0.15

0.40

0.40

0.08

    B

0.3

/

1.2

0.05

0.045

0.40

0.15

0.40

0.40

0.08



Mechanical Properties



Mechanical properties

Material

Min Tensile strenght

 N/mm2

Min. Yield strengh

 N/mm2

Min Elongation

  %

A179

325

180

35



Tolerance Control



OD  In(mm)

+

-

WT  In(mm)

+

-

<1(25.4)

0.10

0.10

≤1.1/2(38.1)

20%

0

1∼1.1/2(25.4∼38.1)

0.15

0.15

>1.1/2(38.1)

22%

0

>1.1/2∼<2(38.1∼50.8)

0.20

0.20

/

/

/

2∼<2.1/2(50.8∼63.5)

0.25

0.25

/

/

/

2.1/2∼<3(63.5∼76.2)

0.30

0.30

/

/

/

3∼4(76.2∼101.6)

0.38

0.38

/

/

/



Factory test and other terms



1.Hydrostatic or Nondestructive Electric Test

2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking

6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.



Applications



1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.

2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field

3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;

4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc

5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc



Factroy Pictures

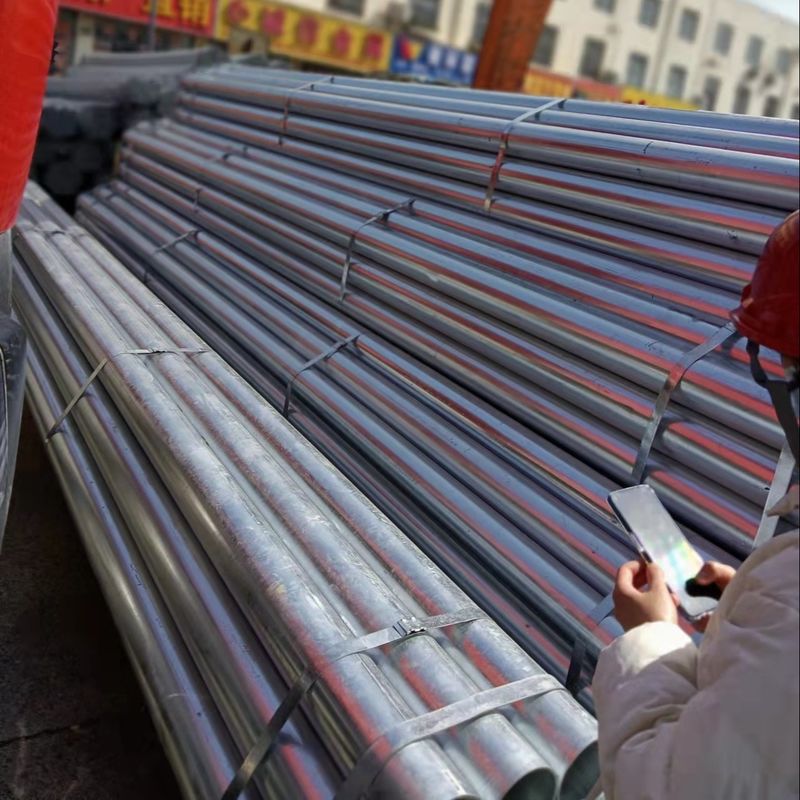

ASME SA179 A179 A192 A213 A519 Galvanized Seamless Steel Tubes Cold - Drawn Petroleum Pipe 0



Pipe & Tube Processing



ASME SA179 A179 A192 A213 A519 Galvanized Seamless Steel Tubes Cold - Drawn Petroleum Pipe 1

Quality Control



ASME SA179 A179 A192 A213 A519 Galvanized Seamless Steel Tubes Cold - Drawn Petroleum Pipe 2

Package



ASME SA179 A179 A192 A213 A519 Galvanized Seamless Steel Tubes Cold - Drawn Petroleum Pipe 3



Main Certificates

ASME SA179 A179 A192 A213 A519 Galvanized Seamless Steel Tubes Cold - Drawn Petroleum Pipe 4
