St52 E235 E355 Seamless Galvanized Steel Tube EN10305-4 E215 For Railway Industry

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: St52 E235 E355
Minimum Order Quantity: 5MT
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Application: Machinery|Automobile|Atuo|Oil Cylinder Tube|Military|Railway Industry Certificate: PED|ISO|BV|TUV
Delivery Condition: Annealed|Normalized|Heat Treatment|BK|BKS|BKW|NBK|GBK Grade: St52/ E235/ E355
Product Name: Galvanized Steel Tube Section Shape: Round
Standard: EN 10305-4|EN 10305-1|DIN 2391|ASTM B633-07 Surface Treatment: Galvanized
Technique: Seamless|Cold Drawn
High Light:

galvanized steel tubing

,

round steel tubing


Product Description



St52 E235 E355 Seamless Galvanized Steel Tube EN10305-4 E215 For Railway Industry



Different color of zinc such as white, yellow, army-green, black is evenly distributed in the surface of the tube,

good brightness and antirust and antisepsis could improve after zinc coated.


Product Name Galvanized Steel Pipe/Tube
Standard ASTM A53, BS1387-85, GB/T3091-08, DIN2440, JIS-G3444, EN10240, EN10255
Grade St52 E235 E355
Type & Zinc Coating Hot dip galvanized steel pipe (zinc coating: 60g/m2-275g/m2)
Pre-painted galvanized steel pipe (zinc coating: 80g/m2-275g/m2)
Outside diameter Round pipe: 17mm-273mm
Square pipe:15mm x 15mm - 400mm x 400mm
Rectangular pipe: 10mm x 20mm -200mm x 400mm
Wall thickness Round pipe: 0.6mm-12mm
  Square pipe:0.6mm-20mm
  Rectangular pipe: 0.6mm-20mm
Length 2m-5.8m/6m/12m ( We can adjust length according to your request)



Types of galvanized steel pipe



STANDARDS PRODUCTS RANGES
IS:1239 (Part-I) Mild Steel Tubes, Tubulars 15mm NB – 150mm NB
IS:1161 Mild Steel Tubes for Structural purpose 15mm NB – 200mm NB
IS:3601 Mild Steel tubes for Mechanical & General Engg. purpose 20mm x 0.80mm to 165.10 x 7.00 mm
IS:3589 ERW Pipes for water Gas & Sewrage 168.3 x 4.00 mm to 219.1 x 7.00mm
IS:9295 Steel Tubes for Idlers for Belt conveyors 63.5 x 4.00 mm to 219.1 x 7.0 mm
IS:4270 Steel Tubes for Water Wells 114.3 x 5.00mm to 219.1mm x 7.1mm
IS:7138 Steel Tubes for furniture 20.0 x .60mm to 60.0 x 2.0mm
IS:4923 Hollow Steel sections for structural purpose 12.5 x 12.5 x 0.80 to
150 x 150 x 6.0mm
10 x 20 x 0.80mm to
150 x 200 x 6.0mm
IS:3074 Steel Tubes for Automobile purpose 19.7 x 1.00mm to 101.6 x 6.0mm
BS:1387 Screwed & Socketed Steel Tubes & Tubulars ½”NB to 6″NB 2.00 mm – 5.40 mm wall thick
BS:3601 Steel Pipes & Tubes for pressure purpose ½”NB to 6″NB 2.00 mm – 7.00 mm wall thickness
BS:6323 Steel tubes for mechanical & general engineering purposes 21.3″ to 219.1mm OD wall thickness-1.60-7.00 mm

Mechanical Properties (Mpa):



Grade Yield strengtha Rehmin Mpa Tensile strengtha Rmmin Mpa Elongation A min %
E215 215 290-430 30
E235 235 340-480 25
E355 355 490-630 22



Applications:



Zinc coated precision steel tubes (galvanized tubes) are destined for hydraulic and pneumatic pressure distribution (so called HPL tubes), production of automobile components, utility vehicles as well as for production of machine products such as fittings and joints. Cold drawn precision tubes are used as the semi-finished product and they are made from rolled seamless tubes. Precision tubes HPL types are made from carbon and alloyed steel.


Application areas:



Automotive, military, railway industry, with high requirement of the tubes brightness, cleanness, antirust, and antisepsis.

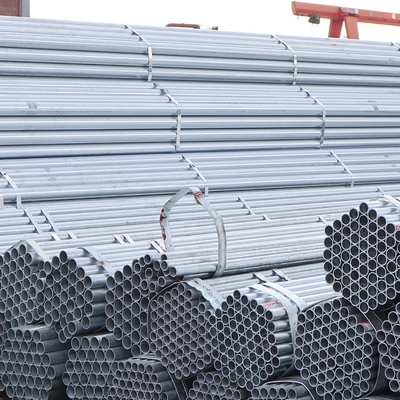

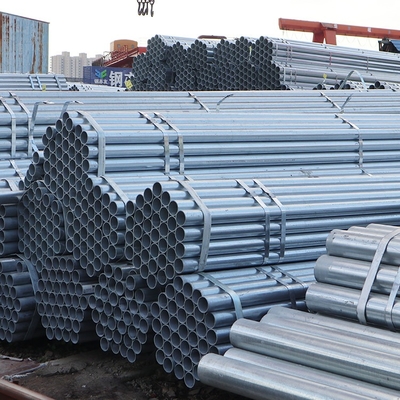

Product Photo



Hot Dip Galvanized Steel Pipe Pre-Painted Galvanized Steel Pipe Round Square Rectangular pipe tube 0



Factroy Pictures



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1



Pipe & Tube Processing



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2



Application



EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3

Packaging & Shippping



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 5





Certificates



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6

FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples,you need to send us you detailed receiving address (including post code) and your

DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
