| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | Wuxi Sylaith |
| Certification: | ISO |
| Model Number: | Din2391 ST52 |
| Minimum Order Quantity: | 1MT |
| Price: | NRGOTIABLE |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 3-15 days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Length: | 12M, 6m, 6.4M, 5.8m-12m | Thickness: | 2 - 20 Mm |
|---|---|---|---|
| Grade: | St52 16Mn | Section Shape: | Round Square Rectangle |
| OD: | 21-406mm | Processing Service: | Bending, Punching, Cutting |
| Special Pipe: | API Pipe | ||
| High Light: | Cold Drawn steel Pipe,Round Steel Pipes |
||
ASE 4140 E355 DIN2391 ST52 Precision Brightness Honed Cylinder Seamless Steel Pipes
We have got two complete production line as:
|
Honed tube for hydraulic cylinder
|
||
|
Standard
|
DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713...
|
|
|
Material
|
ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45...
|
|
|
Heat treatment
|
BK+S
|
|
|
Specification
|
Outer diameter(mm)
|
Inner diameter(mm)
|
|
40-400mm
|
30-320
|
|
|
I.D Tolerance
|
H8-H9
|
|
|
Length
|
3-9m (Customers usually choose the 4~5.8m)
|
|
|
Straightness
|
1/1000
|
|
|
ID roughness
|
RA 0.4micron(max)
|
|
|
Technology
|
Honed & SRB(SKIVED AND ROLLER BURNISHED )
|
|
|
Scope
|
Honed tube for hydraulic cylinder, swivel crane, injection machine and
construction machine application |
|
|
Supply Ability:
|
40000MT/month
|
|
|
Coil weight:
|
3-8MT/Coil or as your request
|
|
|
Packaging:
|
Export standard, seaworthy
|
|
|
Substrate:
|
Cold rolled Substrate,Hot rolled Substrate
|
|
|
Payment terms:
|
T/T, L/C at sight,West Union,D/P,D/A,Paypal
|
|
|
Delivery time:
|
10-20days after confirmed order
|
|
|
Loading port:
|
Tianjin, Qingdao and Shanghai port
|
|
|
Container size:
|
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
|
|
|
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
|
||
|
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
|
||

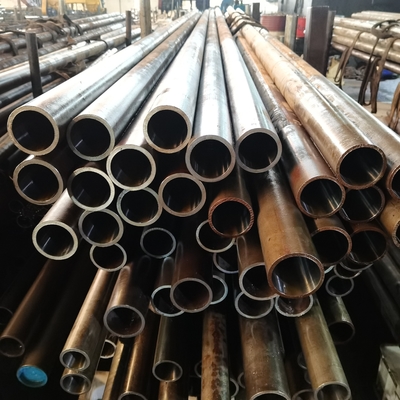

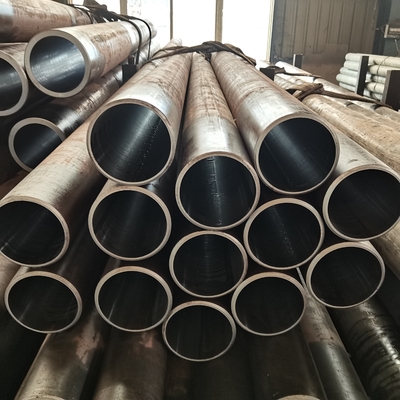

Product Photo
Application
Packing & Delivery
Our Factory
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
