RHS EN 10296-1 Cold Drawn ERW Steel Tube Round / Square Shape For Engineering

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO
Model Number: EN 10296-1
Minimum Order Quantity: 5MT
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Out Dimensions: 6mm -350mm (Round) Application: Engineering
OD: 20mm*20mm – 400mm*400mm(Rectangular) Wall Thickness: 0.8mm –35mm
Section Shape: Round Square Rectangle Standard: EN 10296-1
High Light:

erw steel tubing

,

round steel tubes


Product Description

 RHS EN 10296-1 Cold Drawn ERW Steel Tube Round / Square Shape For Engineering


Quick Detail:


Standard: EN 10296-1
Size:(mm)
Out Dimensions:

6mm -350mm (Round)

20mm*20mm – 400mm*400mm(Rectangular)
Wall Thickness: 0.8mm –35mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)



Description:

EN 10296-1 Welded steel tubes for pressure purposes

Standard:
EN 10296-1, GB700-88, EN10219, JIS G3101

Material Grade:
Q235, Q345, S235JR, S275JR, SS400,20# ,16MN, ST37 ST52, etc

Packing:
Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection

Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test

Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark:
Marking or mechanical stamp on each piece of tube to be confirmed or as requested

Method of manufacture:
Electric-Resistance-Welded / Cold Drawn





Delivery condition:



The tubes shall be supplied in one of the following delivery conditions

a) Cold finished/hard (cold finished as drawn): BK;

b) Cold finished/soft (lightly cold worked): BKW

c) Annealed: GBK

d) Annealed (including de-scaling): GZF;

e) Normalized: NBK

f) Normalized (including de-scaling): NZF.


Applications:

EN 10296-1 Welded circular steel tubes for mechanical and general engineering purpose,Non-alloy and alloy steel tubes.



Competitive Advantage:

1) Fast delivery
2) Non-standard sizes and made-to-order
3) Small min order quantity
4) Economical Pricing
5) Quality confirming to International Standards
6) Material Test Certificates for Quality Assurance
7) Technical Qualified After Sales
8) Excellent Delivery Conditions

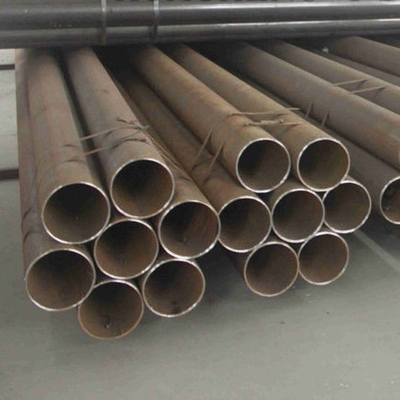

Detailed Photo:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 0



Factroy Pictures:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 1



Pipe & Tube Processing:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 2



Steel Pipe & Tube Application:

1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.

DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 3



Packaging and Shipping:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 4

DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 5



Certificates:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 6



FAQ:

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
