| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | JIANGSU HUACHENG |
| Certification: | ISO9001 14001 BV TUV PED DNV etc |
| Model Number: | HC |
| Minimum Order Quantity: | 5MT |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 25~35days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Features: | Thick Wall | Application: | Machinery |
|---|---|---|---|
| Certificate: | PED, ISO, BV, TUV | Product Name: | Bearing Steel Tube |
| Section Shape: | Round | Standard: | GB, SKF, ASTM, DIN, JIS, BS |
| Technique: | Seamless, Hot Rolled, Cold Drawn | ||
| High Light: | steel round tube,carbon steel tubing |
||

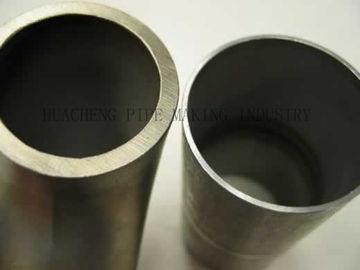

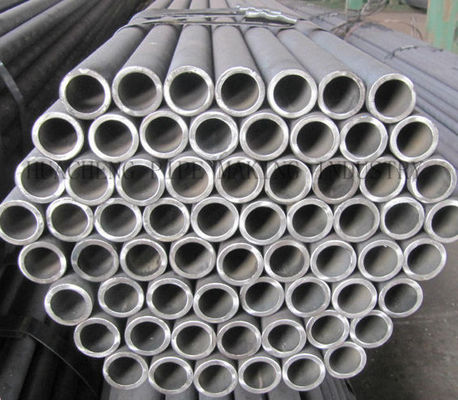

GBT 18254 GCr18Mo 100CrMo 7 Hot Rolled Seamless Bearing Thick Wall 1.0mm ~ 10mm
Quick Detail:
Products: GBT 18254 GCr18Mo Stainless Bearing Steel Tube
Standard: GB / SKF/ ASTM / DIN / JIS / BS
Size(mm):
OD:8mm ~ 101.6mm
WT:1.0mm ~ 10mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)
Description:
GB/T 18254 GCr18Mo is a kind of high-carbon chromium bearing steel,also a new high abrasive resistance steel. GCr18Mo is equivalent to SKF24 at Swedish standard. Compared with GCr15 and GCr15SiMn, GCr18Mo has more percent of Cr element which improves the abrasive resistance ,and is added Mo element.
GCr18Mo is mainly used to manufacture various bearing inner rings (wall thickness up to 20mm,not the 16mm),making a wide use. Except that, GCr18Mo can also be used to manufacture internal-combustion engine,electric locomotive,machine tool,tractor,steel rolling equipment,driller,steel balls,roller,and axle sleeve of rail truck, mining machine spiale.
The equal material of GB/T 18254 GCr18Mo in different standard.
|
GB/T 18254 |
DIN 17230 |
SKF D33 |
|
GCr18Mo |
100CrMo 7 |
SKF24 |
GB/T 18254 GCr18Mo chemical composition:
|
C |
Si |
Mn |
Cr |
Mo |
P |
S |
others |
|
0.95-1.05 |
0.2-0.4 |
0.25-0.4 |
0.65-1.95 |
0.15-0.25 |
≤0.025 |
≤0.02 |
Ni≤0.25 |
GB/T 18254 GCr18Mo mechanical property and delivery condition:
|
|
Standard |
Delivery Condition |
Anneal (soften or spheroidizing ) hardness HBW |
|
|
Technical conditions |
Specification |
|||
|
Hot rolled bar |
GB/T 18254 |
GB/T 702 |
Hot rolled,hot rolled soften annealing,hot rolled spheroidizing annealing,hot rolled spheroidizing annealing skin,hot rolled soften annealing skin. |
179-207 |
|
Forging bar |
GB/T 908 |
|||
|
Cold drawn bar |
GB/T 905 |
Cold drawn or burnishing |
||
|
Hot rolled tube/pipe |
GB/T 18254 |
Hot rolled,hot rolled annealing burnishing |
||
|
Cold drawn tube/pipe |
Cold drawn |
|||
|
Steel wire rod |
GB/T 18254 |
GB/T 14981 |
Hot rolled or spheroidizing annealing |
|
Applications:
1,Mainly used for manufacturing ordinary rolling bearing ring.
2,other applications such as used for automotive industry and bearings in rotating machinery.
Competitive Advantage:
Huacheng Pipe Making Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.
Factroy Pictures:
Pipe & Tube Processing
Factory Equipments:
Production Line:
Quality Control:
Steel Pipe & Tube Application:
Package:
Export Standard / Wooden Box
Main Certificates:
PED ISO BV TUV etc.
