ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

Basic Information
Place of Origin: China
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: A106B A53B
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: T/T, L/C
Supply Ability: 8000MT/Month
Detail Information
Ends: Bevel Or Plain Coating: Internally Bare, Externally Varnished
OD: 21 - 900 Mm OR Customized Tolerance: ±1%
Section Shape: Round, Round Thickness: 3.91mm-59.54 OR Customized
High Light:

carbon steel tubing

,

thin wall steel tube


Product Description



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4



Carbon steel tubes are made of steel ingot or solid round steel which are perforated into wool tubes and then rolled hot, cold or cold



Product Name Hot Rolled / Hot expansion Seamless Carbon Steel Pipe
Brand Wuxi Silaishi
Standard ASTM / DIN / EN / GOST / SAE / JIS etc
Process method Hot rolled/ Hot expansion/ Cold drawn
O.D  21 - 900 mm
W.T 3.91mm-59.54mm
Length 5-12m as per customer's requirements
Material

A53, A106 Grade B, A106 Grade C, Q235, Q345, ASTM A519 37Mn, 34CrMo4.

(10, 20, 30, 35, 45,16Mn, 5MnV, 40Cr, 30CrMnSi, 45Mn2, 40MnB, etc)

Tolerance OD :+1% / -1% WT: +12.5% / -10%
Technique hot rolled or cold rolled
Package bundles,seaworthy wooden cases,container
Coating Internally bare, externally varnished
Ends bevel or plain



Regular Hot Rolled Pipe Sizes:



(Or per customers’ requirements)



OD × WT (mm) OD × WT (mm) OD × WT (mm) OD × WT (mm) OD × WT (mm)
12×1.5 133 ×4~12 406.4×6~25 73×4-4.5-5-6-7-8-9-10-12-15 219×30-40
14×1.5-2.5-3 141.3×4~12 426 ×6~25 76×4-4.5-5-6-7-8-9-10-12-14 245×8-10-14-17-20-22
16×1.5-2.5-4 159 ×4~12 457 ×6~38 83×4.5-5-10/ 12 14 16 18 20 245×25-28-30-34-40
18×2.3-4-5 165 ×4~20 508 ×6~38 89×4.5-8-10/12-14 16 -18 20 273×7-9-12-15-18-20-25
20×2.5-3-5 168.3×4~20 530 ×6~40 95×4.5-6-8/10-12-14-16-20 273×30-35-38-40
24×2.5-3-4-5-6 177.8×4~22 559 ×6~40 102×4.5-5-6-7-8-10-12-14-16-20 299×8-12-16-20-24-28
25×2.5-3-4-5-6 323.8×6~25 610 ×6~40 108×4.5-5-6-7-8-10/12-14-18-20-22 299×30-32-36-38-40
28×3-3.5-4-5-6 340 ×6~25 630 ×6~40 114×4.5-5-6-7-8-10-12-14-18-20 325×8-12-14-18-38
32×3.5-4-5-6-8 355.6×6~25 >630×6~44 121×4.5-5-6-7-8-10-12-14-16-20 325×28-32-34-38
34×4-5-6-8 377 ×6~25 <914×6~60 127×4.5-5-6-7-8-10-12-14-16-20 351×10-16-20-25-40

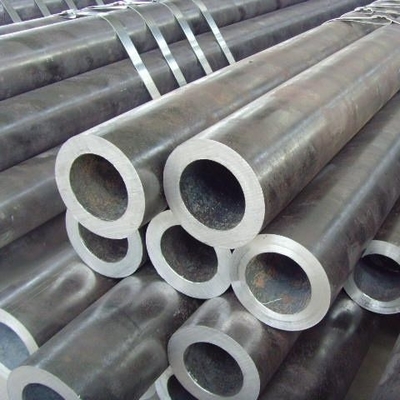

Product Photo



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 0

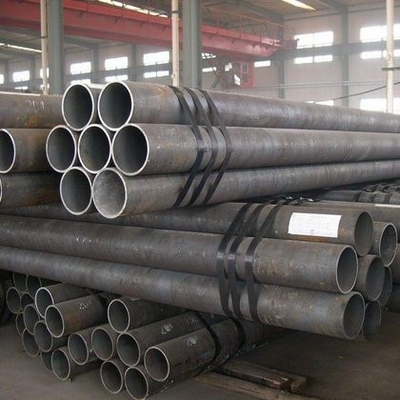

Production process of hot rolled tubes


Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 1



Advantages


Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed. This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.



Applications



Transportation of oil,gas or fluid,Construction,Electricity,Machine building industy,Chemical industy,Petroleum,Traffic, etc



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 2



Factroy Picture



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 3



Quality Control



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 4

Packing & Delivery

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 5

Main Certificates



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 6



FAQ


Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
