EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: EN10305-4
Minimum Order Quantity: 1MT
Price: Negotiable
Packaging Details: standard waterproof package
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month
Detail Information
Delivery Condition: Annealed Material: Carbon Steel
Product Name: Seamless Carbon Steel Tube Section Shape: Round
Surface Treatment: Varnish|Galvanized Technique: Seamless|Cold Drawn|Weld
Wall Thickness: 1mm - 15mm Feature: Precision
High Light:

seamless steel tubes

,

cold drawn seamless tube


Product Description



EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm



Product Description:

Seamless carbon steel tube is one pipe the surface has the steel pipe joint, which is use the steel belt or steel plate material through the bending deformation into round, square ect then Seamless into shape. Which can meet customer requirements, the special specifications Seamless carbon pipe can be processed according to user requirements. Seamless carbon pipes for conveying water, sewage, gas, air, heating, steam and other low-pressure fluid and other uses.



Standard
JIS G3463-2006, JIS G3462-2004, DIN 17175, ASTM A106-2006, ASTM A213-2001, ASTM A312-2001, ASTM A53-2007, ASTM A210-1996, API 5CT, API 5L, GB 5310-1995, GB/T 8162-1999, BS 1387, BS EN10305-4
Grade
ASTM A213 pipe T91 T22 P22 P11 P12 P22 P91 Seamless Pipe, API J55, API L80, API P110, 20#, 45#, 16mn, ST37, ST52, ST42, ST45, STPG42, Q235, Q345, 30CrMo
Thickness
1mm - 15mm
Section Shape
Round

10mm - 1420mm
Place of Origin
China

WUXI
Application
Boiler Pipe,Gas and oil pipe, liquid linepipe, casing pipe
Technique
Hot Rolled
Certification
API
Surface Treatment
Black or Galvanized
Special Pipe
API Pipe
Alloy Or Not
Non-Alloy
Tolerance
±1%


 Grade and Chemical Composition ( % ):



Grade

C ≤

Si ≤

Mn ≤

P ≤

S ≤

Al ≥

E215

0.10

0.05

0.70

0.025

0.025

0.025

E235

0.17

0.35

1.20

0.025

0.025

-

E355

0.22

0.55

1.60

0.025

0.025

-


Mechanical Properties:


Grade

Yield strengtha Reh min Mpa

Tensile strengtha Rm min Mpa

Elongation A min %

E215

215

290-430

30

E235

235

340-480

25

E355

355

490-630

22



Detailed Photo:

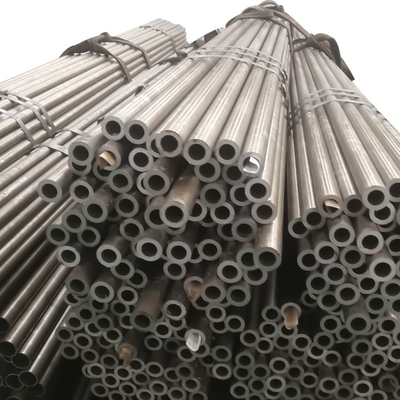

 EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm 0



Factroy Pictures:

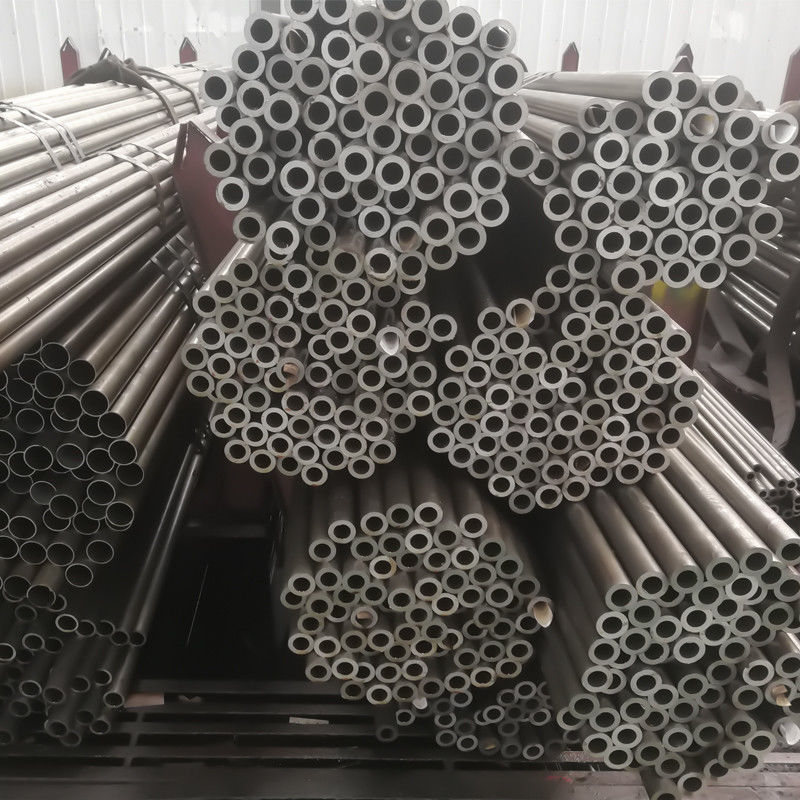

EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm 1

Pipe & Tube Processing:
EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm 2

Steel Pipe & Tube Application:
hydraulic system
automobile
precision machinery parts for cars and cylinder.
Auto industry
Oil cylinder tube

precision tubes for locomotives

EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm 3



Packaging & Shipping:
EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm 4
EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm 5
Certificates:

EN10305-4 Hydraulic Seamless Carbon Steel Tube 4 Inch , Wall Thickness 1mm - 15mm 6

FAQ:

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
