T92 Seamless Alloy Steel Tube
Product Details
| Application: | Boiler|Superheater|Heat-exchanger Tubes | Certificate: | API|ISO|PED |
|---|---|---|---|
| Ends Type: | Beveled | Grade: | T2|T5|T5b|T5c|T9|T11|T12|T17|T21|T22|T23|T24|T36|T91|T92|T122|T911 |
| Product Name: | Seamless Alloy Steel Tube | Section Shape: | Round |
| Standard: | ASTM A213|ASME A213 | Surface Treatment: | Bare|Painting Black|Varnish|Galvanized|Varnished|anti-corrosion|FBE Coating |
| Technique: | Cold-Drawn|Hot-expanded | ||
| Highlight |
Seamless Steel Tubes,Alloy Steel Pipe |
||
Product Description

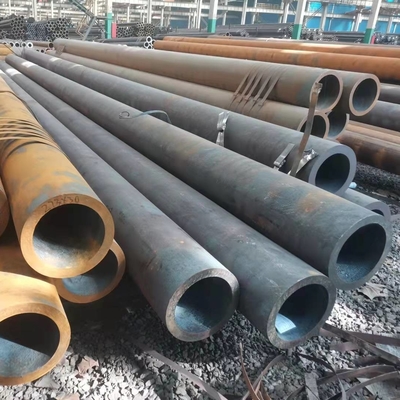

Round Beveled T9 T11 T12 T91 T92 Seamless Alloy Steel Tube 25000mm Length Hot Rolled for Superheater
Quick Detail:
Standard: ASTM/ASME A213
Grade: T2, T5, T5b, T5c, T9, T11, T12,
T17, T21, T22, T23, T24, T36,T91, T92, T122, T911
Size: (mm)
OD. Range:12.7 mm – 114.3 mm
Wall thickness: 0.8 mm-15 mm
Length: Max length 25000mm
Description:
|
Executive Standard |
ASTM A213 |
|
|
Materials |
T2, T5, T5b, T5c, T9, T11, T12,T17, T21, T22, T23, T24, T36,T91, T92, T122, T911 |
|
|
Size |
Outer Diameter |
12.7 mm – 114.3 mm |
|
Wall Thickness |
0.8mm -15mm |
|
|
Length |
Single random length/Double random length 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request |
|
|
Ends |
Plain end/Beveled,protected by plastic caps on both ends,cut quare, grooved, threaded and coupling,etc |
|
|
Surface Treatment |
Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating |
|
|
Technical Methods |
Cold-drawn/Hot-expanded |
|
|
Testing Methods |
Eddy current testing, Hydrostatic testing or Ultrasonic examination, NDT and also with chemical and physical property inspection |
|
|
Packaging |
Small pipes in bundles with strong steel strips,large in loose pieces; Covered with plastic woven bags; Suitable for lifting operation; Loaded in 40ft or 20ft container or in bulk Also according to customer's requests |
|
|
Application |
boiler,superheater,and heat-exchanger tubes |
|
|
Origin |
Zhangjiagang Jiangsu Prov.China |
|
|
Certificates |
API ISO PED |
|
|
Third Party Inspection |
SGS BV TUV etc. |
|
Grade and Chemical Composition(％):
|
Grade |
C |
Mn |
P≤ |
S≤ |
Si |
Cr |
Mo |
V≥ |
|
T11 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.50-1.00 |
0.50-1.00 |
1.00-1.50 |
|
|
T12 |
0.05-0.15 |
0.30-0.61 |
0.025 |
0.025 |
≤0.50 |
0.80-1.25 |
0.44-0.65 |
|
|
T13 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
1.90-2.60 |
0.87-1.13 |
|
|
T2 |
0.10-0.20 |
0.30-0.61 |
0.025 |
0.025 |
0.10-0.30 |
0.50-0.81 |
0.44-0.65 |
|
|
T5 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
4.00-6.00 |
0.45-0.65 |
|
|
T5b |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
1.00-2.00 |
4.00-6.00 |
0.45-0.65 |
|
|
T5c |
≤0.12 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
4.00-6.00 |
0.45-0.65 |
|
|
T9 |
≤0.15 |
0.30-0.60 |
0.025 |
0.025 |
0.25-1.00 |
8.00-10.00 |
0.9-1.0 |
|
|
T22 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
1.90-2.60 |
0.87-1.13 |
|
|
T91 |
0.08-0.12 |
0.30-0.60 |
0.020 |
0.010 |
≤0.50 |
8-9.50 |
0.85-1.05 |
0.18-0.25 |
|
T92 |
0.07-0.13 |
0.30-0.60 |
0.020 |
0.010 |
≤0.50 |
8-9.50 |
0.3-0.60 |
0.15-0.25 |
|
T21 |
0.05-0.15 |
0.30-0.60 |
0.025 |
0.025 |
≤0.50 |
2.65-3.35 |
0.80-1.06 |
|
Mechanical Properties:
|
Standard |
Steel grade |
Tensile(MPa) |
Yield(MPa) |
Elongate(%) |
Hardenss |
|
20MnG |
20MnG |
≥415 |
≥240 |
≥22 |
|
|
25MnG |
25MnG |
≥485 |
≥275 |
≥20 |
|
|
15CrMoG |
15CrMoG |
440～640 |
≥235 |
≥21 |
|
|
12Cr2MoG |
12Cr2MoG |
450～600 |
≥280 |
≥20 |
|
|
12Cr1MoVG |
12Cr1MoVG |
470～640 |
≥255 |
≥21 |
|
|
12Cr2MoWVTiB |
12Cr2MoWVTiB |
540～735 |
≥345 |
≥18 |
|
|
10Cr9Mo1VNb |
10Cr9Mo1VNb |
≥585 |
≥415 |
≥20 |
|
|
ASME SA210 |
SA210A-1 |
≥415 |
≥255 |
≥30 |
≤143HB |
|
SA210C |
SA210C |
≥485 |
≥275 |
≥30 |
≤179HB |
|
ASME SA213 |
SA213 T11 |
≥415 |
≥205 |
≥30 |
≤163HB |
|
SA213 T12 |
SA213 T12 |
≥415 |
≥220 |
≥30 |
≤163HB |
|
SA213 T22 |
SA213 T22 |
≥415 |
≥205 |
≥30 |
≤163HB |
|
SA213 T23 |
SA213 T23 |
≥510 |
≥400 |
≥20 |
≤220HB |
|
SA213 T91 |
SA213 T91 |
≥585 |
≥415 |
≥20 |
≤250HB |
|
SA213 T92 |
SA213 T92 |
≥620 |
≥440 |
≥20 |
≤250HB |
|
DIN17175 |
ST45.8/Ⅲ |
410～530 |
≥255 |
≥21 |
/ |
|
15Mo3 |
15Mo3 |
450～600 |
≥270 |
≥22 |
|
|
13CrMo44 |
13CrMo44 |
440～590 |
≥290 |
≥22 |
|
|
10CrMo910 |
10CrMo910 |
480～630 |
≥280 |
≥20 |
|
Permitted tolerance for OD:
|
OD |
Plus tolerance(+) |
Minus tolerance (-) |
|
10.29—48.3 |
0.4 |
0.4 |
|
<48.3—-≤114.3 |
0.79 |
0.79 |
|
<114.3—≤219.1 |
1.59 |
0.79 |
|
<219.1—≤323.9 |
2.38 |
0.79 |
|
<323.9 |
±1% |
|
Applications
High pressure, low & medium pressure boiler steel pipestubes are suitable for making super-heaters, re-heaters, water wall, and economizer in large-scale power plant.
Product Process
Packing & Delivery
Container information:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details :
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
