Round ASTM A369 A369 FP1 A369 FP2 Mild Steel Tubing , Seamless Alloy Steel Pipe
Quick Detail:
Standard: ASTM A369 , ASME SA-369/SA-369M
Grade: A369 FP1, A369 FP2, A369 FP5, A369 FP9, A369 FP11, A369 FP12, A369 FP21, A369 FP22, A369 FP91, A369 FP92
SIZE:(mm)
OD: 6mm ~ 350mm
Thickness: 0.8mm ~ 35mm
Description:
Product name : alloy steel pipe/tube, seamless alloy steel pipe/tube ,A369 seamless alloy steel tube
Standard : ASTM A369 , ASME SA-369/SA-369M
Steel grade : A369 FP1, A369 FP2, A369 FP5, A369 FP9, A369 FP11, A369 FP12, A369 FP21, A369 FP22, A369 FP91, A369 FP92
Type :Hot rolled or cold drawing Seamless steel tube / pipe
Dimension range: Out Diameter 6mm—350mm ; Wall Thickness : 0.8mm—35mm; Length: Random length, Fixed Length, SRL, DRL
Application : resistant high and low temperature or resistant Corrosion-resistant in the oil, chemical, electric powder industry
Package : grooving, pipe cap, black paint, bundles , mark or depend on the buyer requirement.
ASTM A369 or ASME SA-369/SA-369M is a kind of Ferritic Alloy steel forged and bored steel pipe/tube for high temperature service.
The alloy grades of A369 are FP1, FP2, FP5, FP9, FP11, FP12, FP21, FP22, FP91, FP92.
|
Grade |
C≤ |
Mn |
P≤ |
S≤ |
Si≤ |
Cr |
Mo |
|
FP1 |
0.10~0.20 |
0.30~0.80 |
0.025 |
0.025 |
0.10~0.50 |
- |
0.44~0.65 |
|
FP2 |
0.30~0.61 |
0.30~0.61 |
0.025 |
0.025 |
0.10~0.30 |
0.50~0.81 |
0.44~0.65 |
|
FP5 |
0.15 |
0.30~0.60 |
0.025 |
0.025 |
0.50 |
4.00~6.00 |
0.45~0.65 |
|
FP9 |
0.15 |
0.30~0.60 |
0.030 |
0.030 |
0.50~1.00 |
8.00~10.00 |
0.90~1.10 |
|
FP11 |
0.05~0.15 |
0.30~0.60 |
0.025 |
0.025 |
0.50~1.00 |
1.00~1.50 |
0.44~0.65 |
|
FP12 |
0.05~0.15 |
0.30~0.60 |
0.025 |
0.025 |
0.50 |
0.80~1.25 |
0.44~0.65 |
|
FP21 |
0.05~0.15 |
0.30~0.60 |
0.025 |
0.025 |
0.50 |
2.65~3.35 |
0.80~1.60 |
|
FP22 |
0.05~0.15 |
0.30~0.60 |
0.025 |
0.025 |
0.50 |
1.90~2.60 |
0.87~1.13 |
|
FP91 |
0.08~0.12 |
0.30~0.60 |
0.025 |
0.025 |
0.20~0.50 |
8.00~9.50 |
0.85~1.05 |
|
FP92 |
0.07~0.13 |
0.30~0.60 |
0.020 |
0.010 |
0.50 |
8.50~9.50 |
0.30~0.60 |
Chemical Properties
Note: SA369 FP91 other chemical composition are : V 0.18~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.06~0.10
SA369 FP92 other chemical composition are : V 0.15~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.04~0.09; Cb 0.04~0.09 ; B 0.001~0.006
Applications
ASTM A369 , ASME SA-369/SA-369M Steel Tubes are mainly used for Resistant high and low temperature or resistant Corrosion-resistant in the oil, chemical, electric powder industry

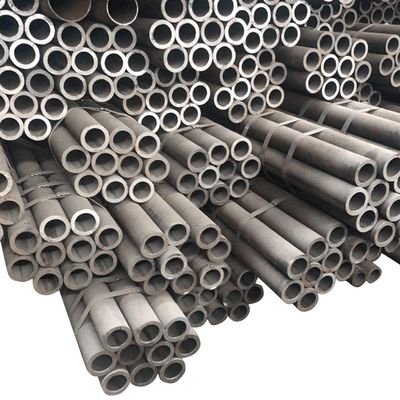

Product Photo
Factroy Pictures
Pipe & Tube Processing
Steel Pipe & Tube Application
Packaging and Shipping
Certificates
