BS 6323 CFS4 CFS6 CFS7 CSF8 Thin Wall Mild Steel Tubing , Seamless Mechanical Fluid Pipe 0.8mm 35mm Thick

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: CFS4 CFS6 CFS7 CSF8
Minimum Order Quantity: 1MT
Price: negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3-15 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thin Wall Application: Fluid Pipe|Structure Pipe|Oil Pipe|Gas Pipe|Drill Pipe|Hydraulic Pipe|Chemical
Delivery Condition: Annealed|BK|BKW|NBK|GBK|Normalized|Cold Finished Grade: CFS4 CFS6 CFS7 CSF8
Product Name: Mild Steel Tubing Section Shape: Round
Standard: BS 6323 Technique: Seamless
High Light:

mild steel tube

,

mild steel piping


Product Description



BS 6323 CFS4 CFS6 CFS7 CSF8 Thin Wall Mild Steel Tubing , Seamless Mechanical Fluid Pipe 0.8mm 35mm Thick



Quick Detail:



Standard: BS 6323
Size:(mm)

Out Dimensions: 6mm ~ 350mm
Wall Thickness: 0.8mm ~ 35mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)



Description:



BS6323 Seamless Mechanical Tubing



Steel Grde:
BS6323-1 CFS3, CFS4, CFS6, CFS7, CSF8, CFS10, CFS11 and equivalents like ASTM A519 SAE1020, SAE1035, SAE1045, SAE1026, SAE1541, SAE4130, SAE4140, etc.

Packing:
Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection

Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.

Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting

Mark

Marking or mechanical stamp on each piece of tube to be confirmed or as requested.



Method of manufacture



The tubes shall be manufactured by a seamless process and shall be cold finished.

It is permissible for cold finished tubes to have on internal or external surfaces an adherent layer of residual lubricant originating from the drawing process. If phosphate or other residues are

detrimental to subsequent processing, then their removal shall be the subject of an agreement

between the manufacturer and the purchaser.





Delivery condition



The tubes shall be supplied in one of the following delivery conditions

a) Cold finished/hard (cold finished as drawn): BK;

b) Cold finished/soft (lightly cold worked): BKW

c) Annealed: GBK

d) Annealed (including de-scaling): GZF;

e) Normalized: NBK

f) Normalized (including de-scaling): NZF.



BS6323 Steel grades & other equivalents



Standard Tubes

BS

BS 6323

CFS3
CFS4
CFS5
CFS6
CFS7

Standards

TDR Standards

Steel Grades

DIN

1629

1630

2391-2

17204



17210

ST 37 / 44 / 52

ST 37.4 / 44.4 / 52.4

ST 35 /  45 / 52

C22 – Ck 22 – Cm22 –
C35 – Ck 35 – Cm 35
C45 -  Ck 45 – Cm 45 – 34 CrMo4

C15 – Ck 15 – Cm 15 – 16MnCr5

EN

10305-1

E215/235/355/255
26Mn 5
C35E
C45E
20V1 (E410)
26Mo2
25CrMo4
42CrMo4

ASTM

A 519

1010
1020
1035

NFA

49310

TU 37 b
TU 52  XC



Many other steel grades and customized – modified steel grades are available on request


Applications



BS6323-1 CFS3, CFS4, CFS6, CFS7, CSF8, CFS10, CFS11 for Structure Pipe, Fluid Pipe, Oil Pipe, Chemical Fertilizer Pipe, Gas Pipe, Hydraulic Pipe, Drill Pipe

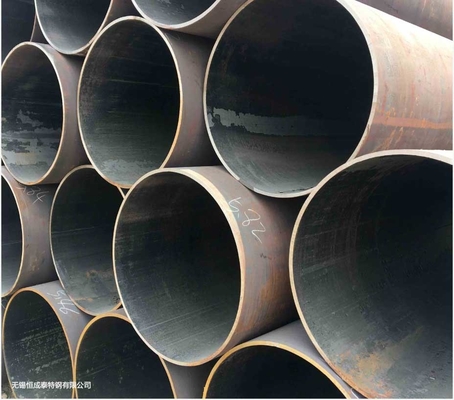

Product Photo



BS 6323 CFS4 CFS6 CFS7 CSF8 Thin Wall Mild Steel Tubing , Seamless Mechanical Fluid Pipe 0.8mm 35mm Thick 0



Factroy Pictures



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 1



Pipe & Tube Processing



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 2



Steel Pipe & Tube Application



BS 6323 CFS4 CFS6 CFS7 CSF8 Thin Wall Mild Steel Tubing , Seamless Mechanical Fluid Pipe 0.8mm 35mm Thick 3

Packaging and Shipping



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 4

BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 5



Certificates



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 6
