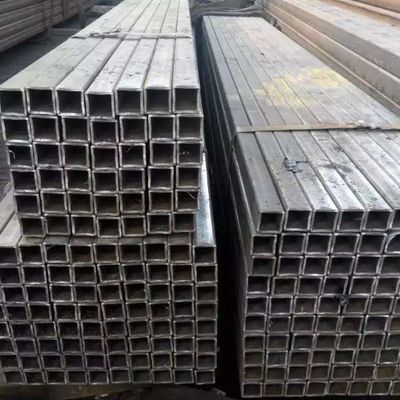

E355 EN 10297 Square Seamless Mild Steel Tubing 350mm OD , Annealed Steel Tube

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: E355 EN 10297
Minimum Order Quantity: 1MT
Price: negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3~15days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thin Wall Application: Greenhouse Pipes|Scaffolding Pipes|Chemical
Delivery Condition: Annealed|Normalized|Tempered|+AR/+N Grade: E355
Material: Alloy Steel Product Name: Mild Steel Tubing|Seamless Steel Tubes
Section Shape: Round|Square|Rectangle Standard: EN 10297
Surface Treatment: Oil-dip|Varnish|Passivation|Phosphating|Shot Blasting Technique: Seamless
High Light:

mild steel tube

,

mild steel piping


Product Description



E355 EN 10297 Square Seamless Mild Steel Tubing 350mm OD , Annealed Steel Tube



Quick Detail:

Standard: EN 10297

Mechanical Seamless steel tubes
Size:(mm)
Out Dimensions: 6mm ~ 350mm
Wall Thickness: 0.8mm ~ 35mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)



Description

Mechanical Seamless steel tubes EN10297
Steel Grde:
E235, E275, E315, E355, E470
Tolerance:

According to EN10297-1: 2003
Tolerance: According to EN10297-1: 2003.

Packing:
Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark:
As requested.

Delivery Condition:

Annealed, Normalized, Normalized and Tempered, +AR/+N


GENERAL INFORMATION

Seamless steel tubes made of non-alloy steels for mechanical and general engineering purposes
Quality Control:
Our quality control department consists of experienced technicians. These personnel strictly control the whole production procedure, from introduction of raw materials to finish products. They ensure high quality products for our customers.



Delivery condition

Steel grade

Delivery condition

E235

+AR or H15+N

E275

+AR or H16+N

E315

+AR or H17+N

E355

+AR or H18+N

E470

+AR



CHEMICAL COMPOSITION (CAST ANALYSIS) IN%

Steel
grade

C

Si

Mn

P

S

min

max

min

max

min

max

max

max

E235

--

0.17

--

0.35

--

1.20

0.030

0.035

E275

--

0.21

--

0.35

--

1.40

0.030

0.035

E315

--

0.21

--

0.30

--

1.50

0.030

0.035

E355

--

0.22

--

0.55

--

1.60

0.030

0.035

E470

--

0.22

--

0.50

--

1.70

0.030

0.035



MECHANICAL PROPERTIES

Steel
grade

Yield strength
Min (Mpa)

Tensile strength
Min(Mpa)

Elongation A
Min(%)

T in mm

T in mm

|

≤16

16
≤40

≤16

16
≤40

E235

235

225

360

360

25

E275

275

265

410

410

22

E315

315

305

450

450

21

E355

355

345

490

490

20

E470

470

430

650

600

17



Applications



Mainly used for greenhouse pipes, scaffolding pipes, transportation the ocean oil and gas,

mechanical tube of ocean platform, power station, chemical industry and building, construction foundation piles, steel structure building, for low-pressur fluid service, steel structure bridges etc.



Factroy Pictures



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 1



Pipe & Tube Processing



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 2



Steel Pipe & Tube Application



E355 EN 10297 Square Seamless Mild Steel Tubing 350mm OD , Annealed Steel Tube 2

Packaging and Shipping



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 4

BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 5



Certificates



BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 6
