ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: ISO
Model Number: ASTM A178
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: 30%T/T in advance , T/T
Supply Ability: 8000MT/Month
Detail Information
Application: Fluid Pipe Delivery Condition: Annealed|Normalized|Tempered|Heat Treatment|BK|BKS|BKW|NBK|GBK
Ends Type: Plain Ends|Bevel Ends Grade: Grade A|Grade C|Grade D
Material: Carbon Steel Product Name: Seamless Steel Tubes
Section Shape: Round Standard: ASTM A178|ASME SA178
Surface Treatment: Varnish Technique: Weld/ Seamless
High Light:

round steel tubes

,

Seamless Steel Tubing


Product Description

ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 mm

Welded steel pipes refer to steel pipes with seams on the surface that are welded by bending and deforming steel strips or steel plates into round, square and other shapes. The blanks used for welded steel pipes are steel sheets or strips.


Product nameASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 mm
StandardsASTM A178 (ASME SA178)
TypeElectric-Resistance-Welded Carbon Steel and Carbon-Manganese Steel Boiler and Superheater Tubes
GradeGrade A Grade C Grade D.
OD15.88mm to 114.3mm
WT1.5mm to 6.0 mm;
Length6 m ~ 25m or as  customers' requirements
EndsPlain ends or bevel ends
Delivery ConditionsBK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. As per Standard.
Coating for protectionblack painting,anti-rust oiled or varnish,also can be required according to customers' requirements


Factory test and other terms

1. Hydrostatic or Nondestructive Electric Test
2. Heat Treatment: according to Standard
3. Surface Condition:According to Standard.
4. Grain Size:According to standard
5. Sampling:flattening,flaring,grain size,Marking
6. we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 0

Applications

ASTM A178 tubes are a kind of frequently-used tubes in our life,they are mainly used in manufacturing heating pipelines,containers,coal-saving devices,superheaters,arch tube,reheater tube,airway tube etc.

Chemical Requirements




Composition%

Element



Grade A

Low-Carbon Steel

Grade C

Medium-Carbon Steel

Grade D

Carbon-Manganese Steel

Carbon

Managanese

Phosphorus,max

Sulfur,max

Silicon

0.06-0.18

0.27-0.63

0.035

0.035

0.35max

0.08max

0.035

0.035

0.27max

1.00-1.50

0.030

0.015

0.01 min


Mechanical Property

Grade C & Grade D tubes shall conform to the requirements -tensile properties prescribed below:


TensileRequirements



GradeC

GradeD

Tensilestrength,min,ksi[MPa]
Yieldstrength,min,ksi[MPa]
Elongationin2in.or50mm,min,%
For longitudinal strip tests a deduction for
Each1⁄32-in[0.8mm]decreaseinwallthicknessbelow5⁄16in.[8mm]
From the basic minimum elongation of the following percentage points shall be made

60[415]
37[255]
30
1.50A

70[485]
40[275]
30
1.50A



Grade A

Tensilestrength,min,ksi[MPa]
Yieldstrength,min,ksi[MPa]
Elongationin2in.or50mm,min,%

47[325]
26[180]
35


Outside diameter and Wall ThicknessTolerance


Outside Diameter tol

Wall thickness tol

OD < 50

±0.05mm

S < 4mm

±12.5%

OD > 50

±1%

4--20mm

+15/-12.5%

S≧20mm

±12.5%



Main Product Photo

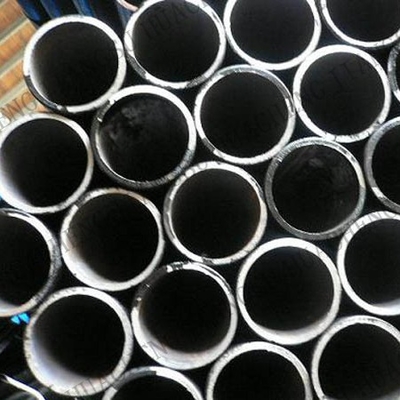

ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 1

Factroy Picture

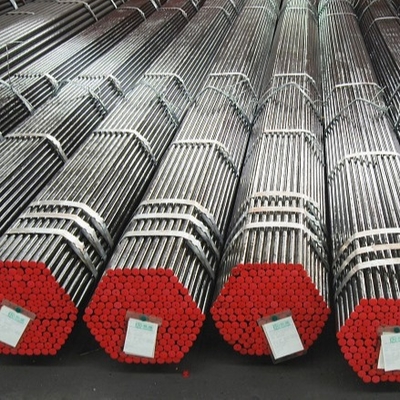

ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 2

Factory Production Line

ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 3
Quality Control

ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 4

Steel Pipe & Tube Application
ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 5
Package

ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 6

Main Certificates

ASTM A178 Weld Seamless Carbon Steel Pipe , Boiler Steel Tube Thickness 1.5mm - 6.0 Mm 7
