High Temperature Resistant Oiled Seamless Steel Tubes Round For Metallurgy

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: DIN 1626 DIN 2448 DIN 1629
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: T/T, L/C
Supply Ability: 8000MT/Month
Detail Information
Application: Fluid Pipe Grade: A179|A192|T4|T5|P1|P11|St35|St45|St52
Product Name: Seamless Steel Tubes Section Shape: Round
Standard: DIN1626|DIN1629|DIN2448 Technique: Hot Rolled
High Light:

Oiled Seamless Steel Tubes

,

Seamless Steel Tubes For Metallurgy

,

high temperature resistant Seamless Steel Tubes


Product Description



Thin Wall DIN 1626 DIN 2448 DIN 1629 Seamless Hot Rolled Steel Tubes Round 6mm - 350mm



Seamless steel pipe: Seamless steel pipe is made of steel ingot or solid tube blank through perforation to make capillary, and then hot-rolled, cold-rolled or cold-drawn.



Commodity Specification

DIN1626 / ST52.4 / ST42.2

DIN1629 / St45-4,St52,St35,St37,St44

DIN 2448 / EN 10217 / BS 1387

Process Method

Cold draw or Hot rolled

Surface Finish

Oiled or black painted to prevent rust.

Size

a) NPS:1/8-20

b) Schedule: sch20,sch30,sch40,STD,sch80

c) OD: 6 mm ~ 350 mm

d) WT: 0.8 mm ~30 mm

OD Tollerance

D≤48.3mm,±0.4mm/-0.79mm,D48.3-114.3mm, ±0.79%,D≥114.3mm ±1.59/-

0.79mm

WT Tollerance

WT ±12.5%

Chemail

C0.3% , Si≥0.1%,Mn:.29-1.06%, P≤0.035%,S≤0.035%,

Cu<0.4%,,Cr<0.4%,Mo:0.15%,V:0.08%

Tenslle Strength

415MPA

Yield Point

240 MPA

Length

5.8-12m or above

Ends

Beveled or square cut plastic caped.

Delivery

FOB/CIF/CFR

Delivery Time

According to the customers’ request.

Application Range

Petroleum,chemical,power,gas,water,metallurgy,shipbuilding,construction,etc.

Others

a) Special design available according to requirement.

b) Anti-corrosion and high-temperature resistant with black painting.


Chemical composition



Standard

Grade

Chemical Composition(%)(max)

C

Si

Mn

P

S

Cr

DIN1629

St37.0

0.17

/

/

0.04

0.04

/

St44.0

0.21

/

/

0.04

0.04

/

St52.0

0.22

0.55

1.7

0.04

0.04

/



Mechanical properties



Standard

Grade

Mechanical Properties

TS (Mpa)

YS(Mpa)

Elongation(%)

DIN1629

St37.0

350-480

235min

25min

St44.0

420-550

255min

21min

St52.0

550-650

270min

21min



Related Standard For Reference



Commodity

ASTM

DIN-17175

OD-WT (mm)

China Grade

Alloy pipe

Fluid pipe

CS pipe

Hydraulic pillar pipe

Line pipe

Marine pipe

Structure pipe

ASTM A106-A

ASTM A53-A

ASTM A179-C

ASTM A214-C

ASTM A192

ASTM A226

DIN-17175St 37.2

DIN-17175St 35.8

DIN-17175St 35.4





21--457*2.77—60

(1/2”—18”)

(SCH10—XXS)







10#

ASTM A106-B

ASTM A53-B

ASTM A178-C

ASTM A315-B

ASTM A210-A-

DIN1629 ST42

DIN1629 ST45



21--457*2.77—60

(1/2”—18”)

(SCH10—XXS)





20#

GB 8163

ASTM 1045

 CK45

21--457*2.77—60

(1/2”—18”)

(SCH10—XXS)

45#

ASTM A210-C

DIN1629 ST52.3

DIN1629 ST52.4

DIN1629 ST52



21--457*2.77—60

(1/2”—18”)

(SCH10—XXS)





16Mn

API

J55

K55

N80

L80

P110

4 1/2”—20”

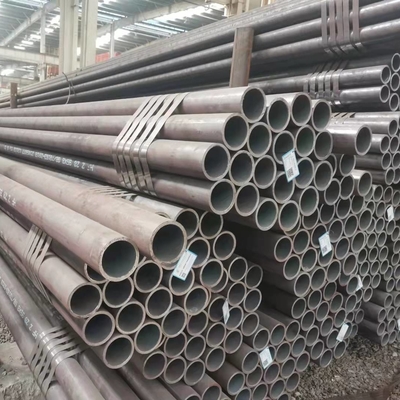

Product Photo



High Temperature Resistant Oiled Seamless Steel Tubes Round For Metallurgy 0

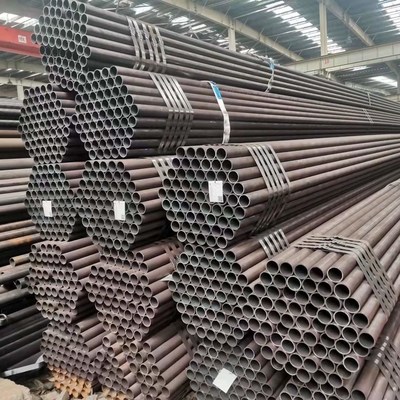

Factroy Pictures



High Temperature Resistant Oiled Seamless Steel Tubes Round For Metallurgy 1



Pipe & Tube Processing



High Temperature Resistant Oiled Seamless Steel Tubes Round For Metallurgy 2



Packing & Delivery

High Temperature Resistant Oiled Seamless Steel Tubes Round For Metallurgy 3
