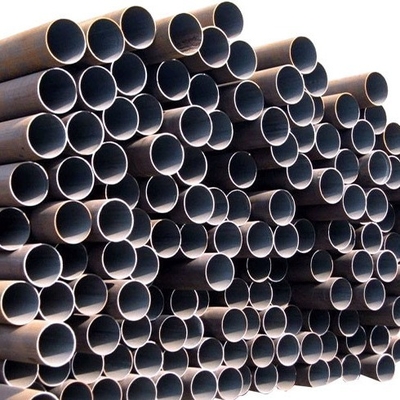

DIN 2448 / DIN1626 / DIN17175 Seamless Carbon Steel Tubes For Construction 12CrMo195
Product Description
The raw material of seamless carbon steel pipe is a round tube blank, which is cut by a cutting machine into a billet with a length of about 1 meter, and sent to a furnace for heating through a conveyor belt. The billets are fed into the furnace and heated at about 1200 degrees Celsius.
|
Type |
DIN 2448 / DIN1626 / DIN17175 |
|
Pipe Size |
6 mm ~ 350 mm |
|
Wall Thickness |
0.8 mm ~30mm |
|
Length |
5.8m,5.85m,6m,11.8m,12m Random length: 5-24m |
|
Standard |
DIN 2448,DIN1626,DIN17175, DIN1629 ASME B36. 10M-1996,API 5L JIS G3461, JIS G3456, JIS G3452,JIS G3454,JIS G3455,JIS G3457, |
|
Material |
ST37.0,ST35.8,St37.2,St35.4/8,St42,St45,St52,St52.4 A53B, A106B, API 5L B,X42,X46,X52,X60, X65 STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49 |
|
Application |
petroleum, construction ,shipbuilding, smelting, aviation, power, foodstuff, papermaking, chemical, medical equipment, boiler heat, exchanger, gas metallurgy, etc. |
|
Surface |
Hot galvanized, Cold galvanized, Painted black, varnish paint, anti rust oil, 3PE, or as per customers' requirements |
|
Package |
Steel strips bundled, Woven bag packed, Plastic caps on both ends, or as per customers' requirements. |
|
Certificate |
SGS ISO ROHS |
|
Advantages |
1.High quality and prompt delivery 2.Competitive price and attentive services 3.Reliable partner |
Chemical Composition:
|
STANDARD |
GRADE |
CHEMICAL COMPOSITION |
|||||
|
C |
Si |
Mn |
P,S |
Cr |
Mo |
||
|
DIN 17175 |
St35.8 |
≤0.17 |
0.10-0.35 |
0.40-0.80 |
≤0.030 |
/ |
/ |
|
St45.8 |
≤0.21 |
0.10-0.35 |
0.40-1.20 |
≤0.030 |
/ |
/ |
|
|
15Mo3 |
0.12-0.20 |
0.10-0.35 |
0.40-0.80 |
≤0.030 |
/ |
0.25-0.35 |
|
|
13CrMo44 |
0.10-0.18 |
0.10-0.35 |
0.40-0.70 |
≤0.030 |
0.70-1.10 |
0.45-0.65 |
|
|
10CrMo910 |
0.08-0.15 |
≤0.50 |
0.40-0.70 |
≤0.030 |
2.00-2.50 |
0.90-1.20 |
|
Mechanical properties:
|
STANDARD |
GRADE |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
elongation (%) |
|
DIN 17175 |
St35.8 |
360-480 |
≥235 |
≥25 |
|
St45.8 |
410-530 |
≥255 |
≥21 |
|
|
15Mo3 |
450-600 |
≥270 |
≥20 |
|
|
13CrMo44 |
440-590 |
≥290 |
≥20 |
|
|
10CrMo910 |
450-600 |
≥280 |
≥18 |
Detail Photo:
Applications:
Mainly usd for petroleum, construction ,shipbuilding, smelting, aviation, power, foodstuff, papermaking, chemical, medical equipment, boiler heat, exchanger, gas metallurgy, etc.
Factroy Pictures:
Pipe & Tube Processing:
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
