ASTM A178 DIN JIS Welded ERW Steel Tube / Boiler Steel Pipe Wall Thickness 6mm
Product Details
| Oiled Or Non-oiled: | Non-oiled | Material: | Carbon Steel |
|---|---|---|---|
| Tolerance: | ±3% | Section Shape: | Round |
| Surface Treatment: | Varnish | Technique: | Weld|Welded|ERW |
| Highlight |
erw steel tubing,weld steel tube |
||
Product Description
ASTM A178 DIN JIS Welded ERW Steel Tube / Boiler Steel Pipe Wall Thickness 6mm
Product Description:
ERW stands for resistance welding. Resistance welding is widely used in aviation, aerospace, energy, electronics, automotive, light industry and other industrial sectors because of its high production efficiency, low cost, material saving and easy automation. It is one of the important welding processes.
| Product name | ASTM A178 DIN JIS Welded ERW Steel Tube / Boiler Steel Pipe Wall Thickness 6mm |
| Grade | Grade A, Grade C, Grade D. |
| Outside Diameter | 15.88mm~114.3mm |
| Wall Thickness | 1.5mm~6.0mm |
| Length | 6m-24m, also can be manufactured according to customers' requirements |
| Type | Electric-Resistance-WeldedCarbonSteel (ERW) |
| Ends | Plain ends or bevel ends |
| Delivery Conditions | BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. AS per Standard. |
| Coating for protection | black painting,anti-rust oiled or varnish,also can be required according to customers' requirements. |
Factory Test and Other Terms:
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Chemical Requirements:
|
|
Composition,% |
||
|
Element
|
Grade A, Low-Carbon Steel |
Grade C, Medium-Carbon Steel |
Grade D Carbon-Manganese Steel |
|
Carbon Managanese Phosphorus,max Sulfur,max Silicon |
0.06-0.18 0.27-0.63 0.035 0.035 … |
0.35max 0.08max 0.035 0.035 … |
0.27max 1.00-1.50 0.030 0.015 0.01 min |
Mechanical Property:
Grade C & Grade D tubes shall conform to the requirements -tensile properties prescribed below:
|
TensileRequirements |
||
|
|
GradeC |
GradeD |
|
Tensilestrength,min,ksi[MPa] Yieldstrength,min,ksi[MPa] Elongationin2in.or50mm,min,% For longitudinal strip tests a deduction for Each1⁄32-in[0.8mm]decreaseinwallthicknessbelow5⁄16in.[8mm] From the basic minimum elongation of the following percentage points shall be made |
60[415] 37[255] 30 1.50A |
70[485] 40[275] 30 1.50A |
|
Grade A |
|
|
Tensilestrength,min,ksi[MPa] Yieldstrength,min,ksi[MPa] Elongationin2in.or50mm,min,% |
47[325] 26[180] 35 |
Outside Diameter and Wall ThicknessTolerance:
|
Outside Diameter tolerance |
Wall thickness tolerance |
||
|
OD < 50 |
±0.05mm |
S < 4mm |
±12.5% |
|
OD > 50 |
±1% |
4--20mm |
+15/-12.5% |
|
S≧20mm |
±12.5% |
||

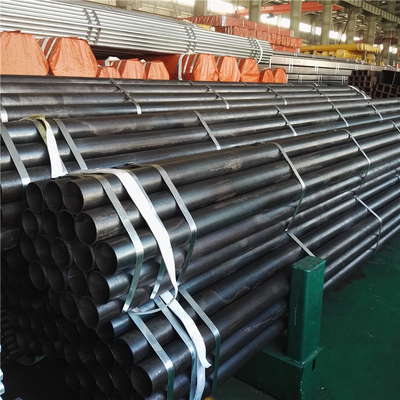

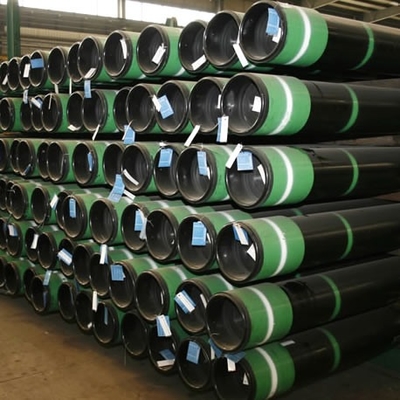

Detailed Photo:
Factroy Pictures:
Pipe & Tube Processing:
Steel Pipe & Tube Application:
ASTM A178 tubes are a kind of frequently-used tubes in our life,they are mainly used in manufacturing heating pipelines,containers,coal-saving devices,superheaters,arch tube,reheater tube,airway tube etc.
Packaging and Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
