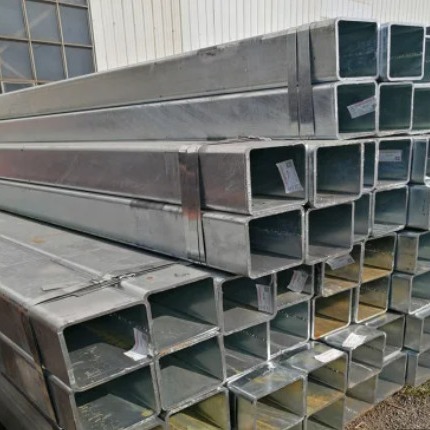

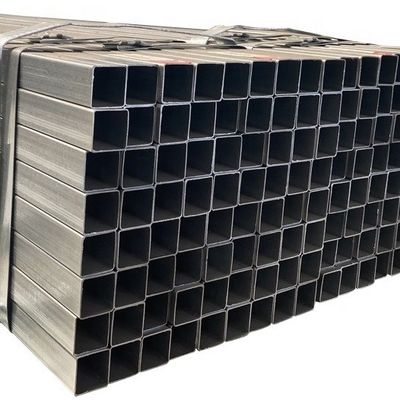

RHS SHS Thick Wall ERW Rectangular Steel Pipe / Seamless Steel Tube For Building Structure

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001
Model Number: RHS SHS
Minimum Order Quantity: 5MT
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Thickness: 0.8 - 2.2 Mm Application: Building|Construction|Building Structure
Grade: Q125 Q235 Q345 Q195,Q215 Ends: Ends: Plain(can Be Threaded,punch,shrink,extension... )
Section Shape: Square|Rectangle Surface Treatment: Galvanized
High Light:

erw steel tubing

,

weld steel tube


Product Description



RHS SHS Thick Wall ERW Rectangular Steel Pipe / Seamless Steel Tube for Building Structure



Material/characteristic:



1.WUXI SYLAITH is committed to long-term development, creating high-quality products and services, with the same pursuit of quality and service, stable, strong, long-term cooperation raw material suppliers, to maximize the consistency and stability of materials, product appearance and internal quality;

2.Raw materials grade : Q195, 235, 235B and Q345...

3.The zinc coating can customized for customers, up to 280 grams.

4.The purity of zinc wire is 99.99% zinc content with high purity.to remain the pipe welded seam antirust.

5.The diameter of zinc wire is 1.5mm which has great protection for welding.

6.The salt spray test can satisfy at least 8 hours without corrosion.

7.In the passivation process, we have own invention patents - galvanized pipe passivation liquid automatic spraying system to ensure even adhesion, high passivation efficiency, beautiful appearance.



Pre galvanized Hollow Section (Zinc coat:30-270g/m2)

Square and rectangular steel pipe

Standard Side Length(mm) Common Tube(mm)

Q195

Q215

Q235

DN Side Length
Tolerance
Thickness Length Length
Tolerance
16 16 ±0.5 0.7-2.2 3000-12000 +20, -0
19 19 ±0.5 0.7-2.2 3000-12000 +20, -0
20 20 ±0.5 0.7-2.2 3000-12000 +20, -0
20 40 ±0.5 0.7-2.2 3000-12000 +20, -0
25 25 ±0.5 0.7-2.2 3000-12000 +20, -0
25 50 ±0.5 0.7-2.2 3000-12000 +20, -0
25 75 ±0.5 0.7-2.2 3000-12000 +20, -0
30 30 ±0.5 0.7-2.2 3000-12000 +20, -0
30 40 ±0.5 0.7-2.2 3000-12000 +20, -0
30 50 +0.4, -0.5 0.7-2.2 3000-12000 +20, -0
32 32 ±0.5 0.7-2.2 3000-12000 +20, -0
35 35 ±0.5 0.7-2.2 3000-12000 +20, -0
37 57 +0.4, -0.5 0.8-2.3 3000-12000 +20, -0
37 77 ±0.5 0.8-2.3 3000-12000 +20, -0
38 38 +0.4, -0.5 0.8-2.3 3000-12000 +20, -0
38 75 +0.5, -0.6 1.0-2.3 3000-12000 +20, -0
50 75 +0.5, -0.6 1.0-2.3 3000-12000 +20, -0
40 40 +0.4, -0.5 0.8-2.3 3000-12000 +20, -0
40 60 ±0.5 0.8-2.3 3000-12000 +20, -0
50 50 ±0.5 1.0-2.3 3000-12000 +20, -0
40 80 +0.5, -0.6 1.0-2.3 3000-12000 +20, -0
50 75 +0.5, -0.6 1.0-2.3 3000-12000 +20, -0
60 60 +0.5, -0.6 1.0-2.3 3000-12000 +20, -0
50 100 ±0.7 1.0-2.3 3000-12000 +20, -0
50 150 ±0.8 1.0-2.3 3000-12000 +20, -0



Applications:



Square Tubes are widely used in building structure and other fields.

We can produce other specifications according to customers’ requirements.





Competitive Advantage:

1) Fast delivery
2) Non-standard sizes and made-to-order
3) Small min order quantity
4) Economical Pricing
5) Quality confirming to International Standards
6) Material Test Certificates for Quality Assurance
7) Technical Qualified After Sales
8) Excellent Delivery Conditions





Detailed Photo:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 0



Factroy Pictures:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 1



Pipe & Tube Processing:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 2



Steel Pipe & Tube Application:

1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.

DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 3



Packaging and Shipping:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 4

DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 5



Certificates:



DIN 17230 100Cr6 Seamless Bearing Stainless Steel Tube ASTM GB DIN JIS Standard 6



FAQ:

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
