ASTM B633-07 Annealed Galvanized Steel Tube , Thin Wall Cold Drawing E355 Steel Pipe

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: E355
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month
Detail Information
Features: Thin Wall Length: 1-12m Or As Required
Certificate: SGS ISO ROHS Out Dimensions: 6mm – 350mm
Standard: ASTM B633-07 Wall Thickness: 0.8mm - 30mm
High Light:

galvanized steel tubing

,

round steel tubing


Product Description


ASTM B633-07 Annealed Galvanized Steel Tube , Thin Wall Cold Drawing E355 Steel Pipe

Application areas: Automotive, military, railway industry, with high requirement of the tubes brightness, cleanness, antirust, and antisepsis.

Product Name
Galvanized Steel Tube
Material
10#, 20#, 45#, 16Mn, A53(A,B), Q235, Q345, Q195, Q215, St37, St42, St37-2, St35.4, St52.4, ST35
Wall Thickness
1.4-14mm or as required
Outer Diameter
20mm~508mm or as required

Length
Length:Single random length/Double random length

5m-14m,5.8m,6m,10m-12m,12m or as customer's actual requirements

Standard
API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS 6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711

Grade
10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52
Grade A, Grade B, Grade C
Technique
Hot Dip Galvanized Round Steel Pipe
Packing
Standard SeaWorthy Package or as your requirements
Pipe Ends
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
Surface Treatment
1. Galvanized

2. PVC,Black and color painting

3. Transparent oil,anti-rust oil

4. According to clients requirement
Product Application
1. Fence, greenhouse, door pipe,greenhouse

2. Low pressure liquid, water, gas, oil, line pipe

3. For both indoor and outdoor the building construction

4. Widely used in scaffolding construction which is much cheaper and convenient
Origin
Shinghai China
Certificates
API ISO9001-2008,SGS.BV
Delivery Time
Usually within 7-10 days after receipt of advance payment


Dimensions of the galvanized tubes for hydraulic and pneumatic lines

Outside diameter ranges from 6 to 350 mm and the wall thickness ranges from 0.8 to 30 mm.
Precision steel tubes are delivered according to EN 10305-4, DIN 2391-1, STN 42 6711 and 42 6712, ČSN 42 6711 and 42 6712.

Synopsis of Process Routing
DIN highly accurate cold drawn bright seamless steel tube is used as the tube to be galvanized, the outer wall is electroplated, caps are covered at two ends of tube to prevent from the dust.
Main Features
Different color of zinc such as white, yellow, army-green, black is evenly distributed in the surface of the tube, good brightness and antirust and antisepsis could improve after zinc coated.

Length of the galvanized tubes
in diameter <= 16 mm  >=6000 + 100 mm
in diameter >= 16 mm  <=24000 + 50 mm

Tolerances of the zinc coated tubes

- tolerances of the outside diameter:

diameter between 4 - 30 mm

±0,08 mm

diameter between 35 - 38 mm

±0,15 mm

diameter above 42 mm

±0,20 mm


  • tolerances of the inside diameter are according to EN 10305-4
    - tolerance of the wall thickness ± 10%

Grade and Chemical Composition(%)


Grade


Chemical Composition(%):

C max

Si max

Mn

P max

S max

E355

0.22

0.55

1.6

0.025

0.025

E235

0.17

0.35

1.2

0.025

0.025

E215

0.10

0.05

0.70

0.025

0.025


Mechanical Properties (Mpa)


Grade

Yield strengtha Rehmin Mpa

Tensile strengtha Rmmin Mpa

Elongation A min %

E215

215

290-430

30

E235

235

340-480

25

E355

355

490-630

22


Final supply conditions


Designation

Symbol

Description

Cold finished (hard)

BK

Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.

Cold finished (soft)

BKW

The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding).

Cold finished and stress-relieved

BKS

Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.

Annealed

GBK

The last cold forming process is followed by annealing in a controlled atmosphere.

Normalized

NBK

The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.


Galvanized tube category and related standard


Galvanized tube category and related standard

Galvanized tube category

Related Standard

Zinc coating thickness

Salt spray test

Gr3+ Galvanized tube with blue and white zinc

ASTM B633-07
(Type III,SC 1/2/3/4)

5-25um

24--72 hours without white rust;48--168 hours without red rust

Gr3+ Galvanized tube with color zinc

ASTM B633-07
(Type II,SC 1/2/3/4)

5-25um

48--96 hours without white rust;48--240 hours without red rust

Gr6+ Galvanized tube with color zinc

ASTM B633-98
(Type II,SC 1/2/3/4)

5-25um

24--96 hours without white rust;48--124 hours without red rust


Applications

Zinc coated precision steel tubes (galvanized tubes) are destined for hydraulic and pneumatic pressure distribution (so called HPL tubes), production of automobile components, utility vehicles as well as for production of machine products such as fittings and joints. Cold drawn precision tubes are used as the semi-finished product and they are made from rolled seamless tubes. Precision tubes HPL types are made from carbon and alloyed steel.

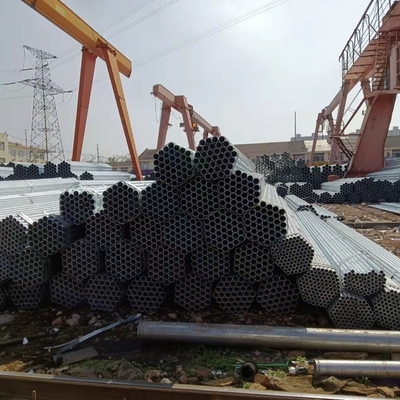

Product Photo

ASTM B633-07 Annealed Galvanized Steel Tube , Thin Wall Cold Drawing E355 Steel Pipe 0

Factroy Pictures

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1

Pipe & Tube Processing

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2

Application

EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3
Packaging & Shippping

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 5


Certificates

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6
