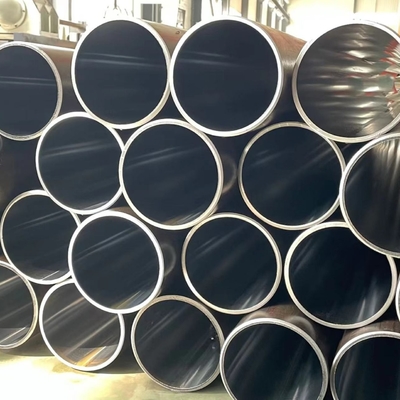

ASTM A519 SAE1026 25Mn Hydraulic Cylinder Pipe Cold-Drawn Tube with Thick Wall
Product Details
| Application: | Hydraulic Cylinder | Product Name: | Hydraulic Cylinder Pipe |
|---|---|---|---|
| Section Shape: | Round | Standard: | E355|DIN2391|ST52|ST45|ASTM A519 |
| Surface Treatment: | Oil-dip|Varnish|Passivation|Phosphating|Shot Blasting | Technique: | Seamless|Cold Drawn |
| Highlight |
Cold Drawn steel Pipe,Precision Seamless Steel Tube |
||
Product Description
ASTM A519 SAE1026 25Mn Hydraulic Cylinder Pipe Cold-Drawn Tube with Thick Wall
Product Description:
Advantage of Product
1)Professional & skilled, reliable.
2)One-stop total solution
3)ready stock goods with fast delivery
4)Customizable: Non-standard sizes are also available
5)Small quantity is acceptable
6)Cashback: Refund or replacement for any product faulty
| Hydraulic Cylinder Pipe | ||
| Standard | DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713... | |
| Material | ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45... | |
| Heat treatment | BK+S | |
| Specification | Outer diameter(mm) | Inner diameter(mm) |
| 40-400mm | 30-320 | |
| I.D Tolerance | H8-H9 | |
| Length | 3-9m (Customers usually choose the 4~5.8m) | |
| Straightness | 1/1000 | |
| ID roughness | RA 0.4micron(max) | |
| Technology | Honed & SRB(SKIVED AND ROLLER BURNISHED ) | |
| Scope |
Honed tube for hydraulic cylinder, swivel crane, injection machine and construction machine application |
|
Processing Range And Precision:
|
Cold Drawn Tubes: ID:45mm-630mm Length:14,000mm Straightness:0.3-1.0 Precision:H8-H10 Roughness:Ra0.8-Ra1.6 |
Honing Tubes: ID:25mm-500mm Length:10,000mm Straightness:0.3 Precision:H7-H8 Roughness:Ra0.2-Ra0.8 |
ID Tolerance of Precision Honed Tubes:
|
SIZE of I.D |
I.D.Tolerance |
Tolerance of wall thickness |
||
|
H8 |
H9 |
H10 |
||
|
30 |
+0.0330 |
+0.0520 |
+0.0840 |
<120mm(O.D) ±5% ≥120mm(D.D) to 210mm ±7.5% >210mm ±10% |
|
>30-50 |
+0.0390 |
+0.0620 |
+0.1000 |
|
|
>50-80 |
+0.0460 |
+0.0740 |
+0.1200 |
|
|
>80-120 |
+0.0540 |
+0.0870 |
+0.1400 |
|
|
>120-180 |
+0.0630 |
+0.1000 |
+0.1600 |
|
|
>180-250 |
+0.0720 |
+0.1150 |
+0.185 |
|
|
>250-315 |
+0.0810 |
+0.1300 |
+0.2100 |
|
|
>315-400 |
+0.0890 |
+0.1400 |
+0.2300 |
|
Mechanical Propety:
Material: 20# 45#,16Mn St45, St52, 25Mn,27SiMn, SAE1026.SAE1518 etc.
STANDARD: GB/T8713 GB/T3639 DIN2391 EN10305 ASTM A519
|
Delivery condition |
cold finished(hard)(BK) |
cold drawn and stress relieved(BK+S) |
|||
|
STEEL GRADE |
Rm MPa |
Elongation (%) |
Rm MPa |
ReH MPa |
Elongation (%) |
|
20# |
≥550 |
≥ 8 |
≥ 520 |
≥ 375 |
≥ 15 |
|
45# |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 520 |
≥ 10 |
|
16Mn |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 520 |
≥ 14 |
|
25Mn |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 510 |
≥ 15 |
|
27SIMn |
≥ 800 |
≥ 5 |
≥ 760 |
≥ 610 |
≥ 10 |
|
ST45 |
≥ 550 |
≥ 5 |
≥ 520 |
≥ 375 |
≥ 15 |
|
E355(ST52) |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 520 |
≥ 14 |
|
SAE1026 |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 510 |
≥ 15 |

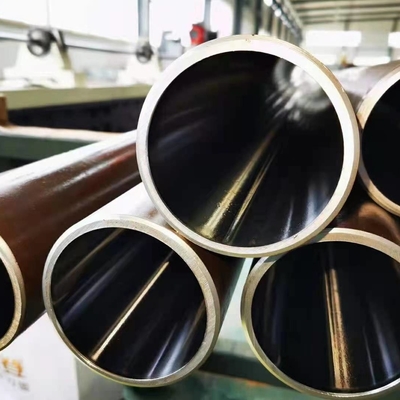

Detailed Photo:
Factroy Pictures:
Pipe & Tube Processing:
Steel Pipe & Tube Application:
Packaging and Shipping:
Certificates:
Company Profile:
WUXI SYLAITH SPECIALSTEEL CO., LTD is located in Wuxi, the largest steel distribution center in east China.Our company has been committed to providing customers with high-quality steel materials and has become the leading supplier of comprehensive material solutions in China. Our company has 20,000 square meters of indoor storage, more than 20,000 tons of spot inventory. Spot product standard involves European standard, American standard, British standard, Australian standard, German standard, Russian standard and so on.
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4.CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
