Tempered BK EN 10305-1 E355 Hydraulic Cylinder Pipe Round Honed Steel Tube
Product Details
| Surface Treatment: | Varnish|Oil-dip|Passivation|Phosphating|Shot Blasting | Application: | Hydraulic Cylinder |
|---|---|---|---|
| Outer Diameter: | 30-600mm | Processing Service: | Welding, Decoiling, Punching, Cutting |
| End Protector: | End Protector | Special Pipe: | API Pipe |
| Highlight |
Precision Seamless Steel Tube,Round Steel Pipes |
||
Product Description
Tempered BK EN 10305-1 E355 Hydraulic Cylinder Pipe Round Honed Steel Tube
Product Description:
Hydraulic and pneumatic cylinders for mining, agricultural and farm machinery, hoists, automotive and transport lifting equipment, waste disposal transport, food processing equipment, mechanical tools and equipment, compressors and earth moving equipment etc.
| Name | Hydraulic Cylinder Pipe |
| Grade | Q355B,Q355D,C20,ST52,E355,SAE1026,CK45 4130 4140 ,STKM 13C,ST52,etc... |
| Technology | Cold Rolled/Hot Rolled |
| Thickness | Cold Rolled 0.25-3mm;Hot Rolled 3-200mm |
| Length | 1-12m or as customer's requires |
| Packing | Export sea worthy package + water proof paper+wooden pallet |
| Sample | Free sample are available |
| MOQ | 1 Ton |
| Payment | TT/LC etc |
| Delivery | within 7-21 working days after reveiving the deposit or according to your order quantity |
Processing Range And Precision:
|
Tubes: ID:45mm-630mm Length:14,000mm Straightness:0.3-1.0 Precision:H8-H10 Roughness:Ra0.8-Ra1.6 |
Honing Tubes: ID:25mm-500mm Length:10,000mm Straightness:0.3 Precision:H7-H8 Roughness:Ra0.2-Ra0.8 |
ID Tolerance of Precision Honed Tubes:
|
SIZE of I.D |
I.D.Tolerance |
Tolerance of wall thickness |
||
|
H8 |
H9 |
H10 |
||
|
30 |
+0.0330 |
+0.0520 |
+0.0840 |
<120mm(O.D) ±5% ≥120mm(D.D) to 210mm ±7.5% >210mm ±10% |
|
>30-50 |
+0.0390 |
+0.0620 |
+0.1000 |
|
|
>50-80 |
+0.0460 |
+0.0740 |
+0.1200 |
|
|
>80-120 |
+0.0540 |
+0.0870 |
+0.1400 |
|
|
>120-180 |
+0.0630 |
+0.1000 |
+0.1600 |
|
|
>180-250 |
+0.0720 |
+0.1150 |
+0.185 |
|
|
>250-315 |
+0.0810 |
+0.1300 |
+0.2100 |
|
|
>315-400 |
+0.0890 |
+0.1400 |
+0.2300 |
|
Mechanical Propety:
Material: 20# 45#,16Mn St45, St52, 25Mn,27SiMn, SAE1026.SAE1518 etc.
STANDARD: GB/T8713 GB/T3639 DIN2391 EN10305 ASTM A519
|
Delivery condition |
cold finished(hard)(BK) |
cold drawn and stress relieved(BK+S) |
|||
|
STEEL GRADE |
Rm MPa |
Elongation (%) |
Rm MPa |
ReH MPa |
Elongation (%) |
|
20# |
≥550 |
≥ 8 |
≥ 520 |
≥ 375 |
≥ 15 |
|
45# |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 520 |
≥ 10 |
|
16Mn |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 520 |
≥ 14 |
|
25Mn |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 510 |
≥ 15 |
|
27SIMn |
≥ 800 |
≥ 5 |
≥ 760 |
≥ 610 |
≥ 10 |
|
ST45 |
≥ 550 |
≥ 5 |
≥ 520 |
≥ 375 |
≥ 15 |
|
E355(ST52) |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 520 |
≥ 14 |
|
SAE1026 |
≥ 640 |
≥ 5 |
≥ 600 |
≥ 510 |
≥ 15 |

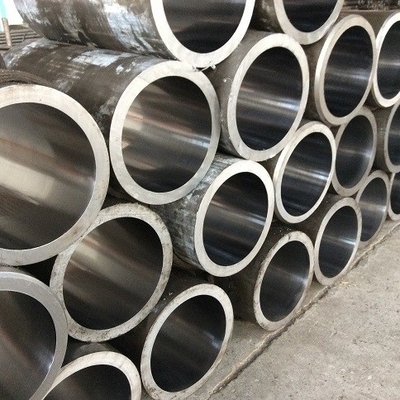

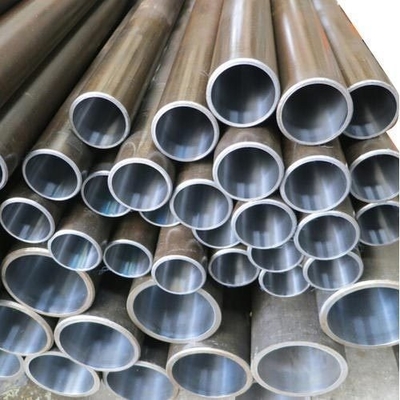

Detailed Photo:
Factory Pictures:
Pipe & Tube Processing:
Steel Pipe & Tube Application:
Our products are widely used in hydraulic and pneumatic power systems,petro-chemical and metallurgical fields, CNG cylinder productions and so on.
Packaging and Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4.CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
