ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: ASTM A179 ASTM A199
Minimum Order Quantity: 1MT
Price: Negotiable
Packaging Details: standard waterproof package
Delivery Time: 7-10 Days
Payment Terms: 30%T/T in advance
Supply Ability: 8000MT/Month
Detail Information
Section Shape: Round Standard: ASTM A179 A199
Technique: Seamless|Cold Drawn|ERW Processing Service: Welding, Punching, Cutting, Bending, Decoiling
Invoicing: By Theoretical Weight Outer Diameter: 10 - 910 Mm
High Light:

cold drawn seamless tubing

,

cold drawn tubes


Product Description

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall

Product Description:

Cold-drawn precision seamless steel pipe is used for high dimensional precision and good surface finish of mechanical structure and hydraulic equipment. The choice of precision seamless tube manufacturing machinery structure or hydraulic equipment, can greatly save the machining hours, improve the utilization rate of materials, and help to improve product quality.



Product Name
ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall
(O.D) Outer Diameter
10MM-910MM
(W.T)Wall thickness
0.6MM-20MM
Length
1M, 4M, 6M, 8M, 12M (accroding to the buyer's request)
Ends
Plain, Beveled, Thread With Couplings Or Sockets;
Plastic Caps And Steel Rings Can Be Provided If Possible
Standard
GB/T3091-2001 , BS 1387-1985 , DIN EN10025 , EN10219 , JIS G3444:2004 , ASTM A53 SCH40/80/STD , ASTM A179 A199,BS- EN10255-2004
Grade
Q195/Q215/Q235/Q345/S235JR/GR.B-D/STK500
Technique
Hot Rolled Or Cold Rolled ERW
Package
Covered With Tarpaulin, Containers Or In Bulk
Certification
CE, BV, SGS, ISO9001, API
Delivery Time
stock or Usually within 10-25 days after receipt of advance payment



Factory test and other terms:

1.Hydrostatic or Nondestructive Electric Test

2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking

6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.



Delivery condition:



Designation

Symbol

Description

Cold finished (hard)

BK

Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.

Cold finished (soft)

BKW

The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding).

Cold finished and stress-relieved

BKS

Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.

Annealed

GBK

The last cold forming process is followed by annealing in a controlled atmosphere.

Normalized

NBK

The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.



All other tubes applicable for boiler and heat exchanger tube we can produce:



Chinese Standard

Steel Grade/ No.

American Standard

Steel Grade/ No.

GB5310

20G,15MoG,12CrMoG,

12Cr2MoG,15CrMoG,

12Cr1MoVG,

ASTM A106

GR. A,B,C

GB9948

10,20,12CrMo,15CMo

ASTM A53

GR.A,B

GB3087

10,20

ASTM A192







ASTM A179







ASTM A210

A-1,C





ASTM A333

GR.1,GR3,GR6





ASTM A334

GR.1,GR3,GR6





ASTM A209

T1, Ta, Tb

German standard

Steel Grade/ No.

Japanese standard

Steel Grade/ No.

DIN17175

ST35.8, ST45.8

JIS G3454

STPG370,STPG410

DIN1629

ST37.0, ST44.0, ST52.0

JIS G3461

STB340, STB410, STB440

British Standard

Steel Grade/ No.

European standard

Steel Grade/ No.

BS3059-Ⅰ

320

EN10216-1

P195TR1/TR2,P235TR1/TR2,
P265TR1/TR2

BS3059-ⅡS1/S2; TC1/TC2

360,440,

EN10216-2
TC1,TC2

195GH,P235GH,
P265GH,

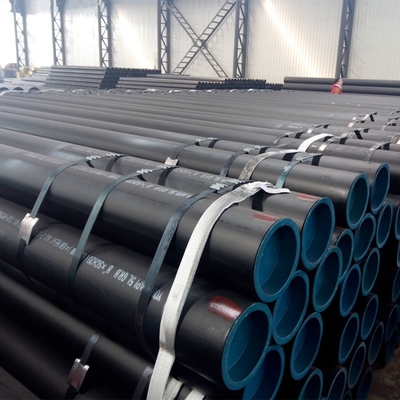

Detailed Photo:

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall 0

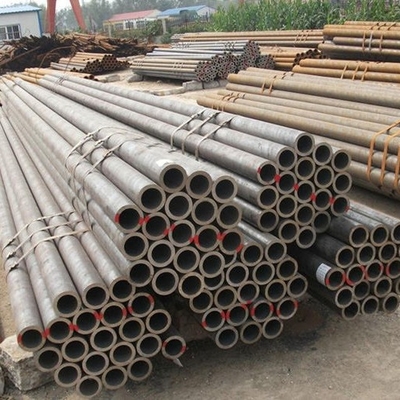

Factroy Pictures:

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall 1



Pipe & Tube Processing:

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall 2



Steel Pipe & Tube Application:

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall 3

Packaging and Shipping:

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall 4

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall 5

Certificates:

ASTM A179 ASTM A199 Cold Drawn Seamless Heat Exchanger Tube Thin Wall 6

FAQ:

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4.CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
