Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: GB8162 / GB8163
Minimum Order Quantity: 1MT
Price: Negotiable
Packaging Details: standard waterproof package
Delivery Time: 7-10 Days
Payment Terms: 30%T/T in advance
Supply Ability: 8000MT/Month
Detail Information
Section Shape: Round Alloy Or Not: Non-Alloy
Special Pipe: Thick Wall Pipe Processing Service: Bending, Welding, Decoiling, Punching, Cutting
Out Diameter: 6-114mm Tolerance: ±3%
High Light:

cold drawn seamless tubing

,

cold drawn seamless steel tube


Product Description



Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163

Product Description:

GB8162 standard seamless steel pipe is a hollow section, no joints around the strip steel. The steel pipe has a hollow section and is widely used for conveying fluid pipelines, such as conveying oil, natural gas, gas, water and some solid materials.

Name Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163
Certificate SGS,ISO
 Wall Thickness 0.15-6mm
Out Diameter 6-114mm
Length 1-12m or as required
Delivery time 15-20 days after the deposit or LC.
Feature Good cost performance,price stability
Good shaping capability,weld bending capability,high thermal conductivity,low thermal expansion
Shipment Within 10-15 workdays,25-30days when the quality beyond 1000tons

Factory Test and Other Terms:

1.Hydrostatic or Nondestructive Electric Test

2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking

6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.



Delivery Condition:



Designation

Symbol

Description

Cold finished (hard)

BK

Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.

Cold finished (soft)

BKW

The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding).

Cold finished and stress-relieved

BKS

Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.

Annealed

GBK

The last cold forming process is followed by annealing in a controlled atmosphere.

Normalized

NBK

The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.



All Other Tubes Applicable:



Chinese Standard

Steel Grade/ No.

American Standard

Steel Grade/ No.

GB5310

20G,15MoG,12CrMoG,

12Cr2MoG,15CrMoG,

12Cr1MoVG,

ASTM A106

GR. A,B,C

GB9948

10,20,12CrMo,15CMo

ASTM A53

GR.A,B

GB3087

10,20

ASTM A192







ASTM A179







ASTM A210

A-1,C





ASTM A333

GR.1,GR3,GR6





ASTM A334

GR.1,GR3,GR6





ASTM A209

T1, Ta, Tb

German standard

Steel Grade/ No.

Japanese standard

Steel Grade/ No.

DIN17175

ST35.8, ST45.8

JIS G3454

STPG370,STPG410

DIN1629

ST37.0, ST44.0, ST52.0

JIS G3461

STB340, STB410, STB440

British Standard

Steel Grade/ No.

European standard

Steel Grade/ No.

BS3059-Ⅰ

320

EN10216-1

P195TR1/TR2,P235TR1/TR2,
P265TR1/TR2

BS3059-ⅡS1/S2; TC1/TC2

360,440,

EN10216-2
TC1,TC2

195GH,P235GH,
P265GH,

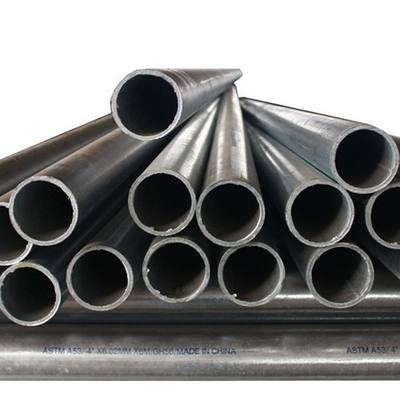

Detailed Photo:



Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163 0

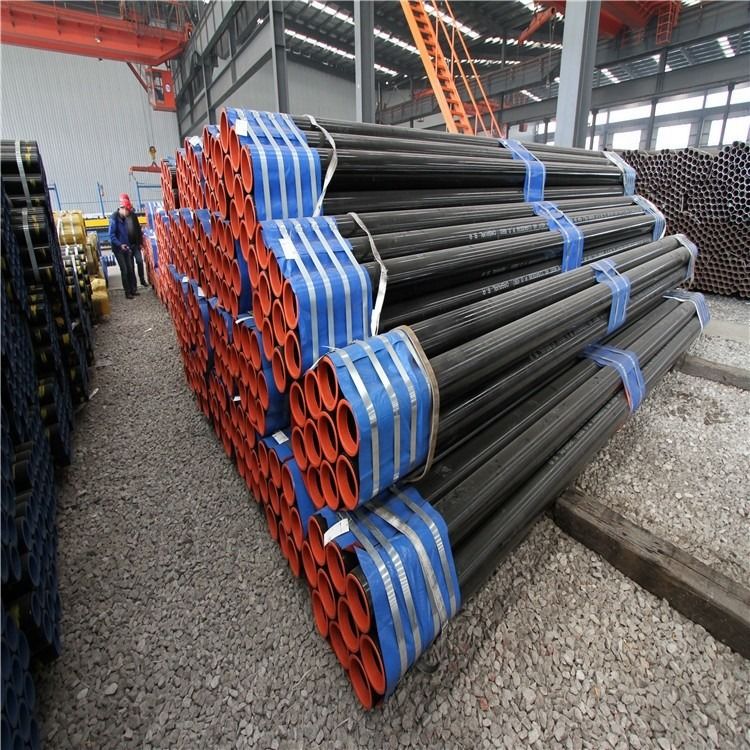

Factroy Pictures:



Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163 1



Pipe & Tube Processing:



Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163 2



Steel Pipe & Tube Application:

1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.

2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field

3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;

4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc

5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc.

Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163 3



Packaging and Shipping:



Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163 4

Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163 5



Certificates:



Thin Wall Cold Drawn Seamless Tubes for Building , Heat Exchanger Pipe GB8162 / GB8163 6

FAQ:

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
