ASTM A179 Galvanized Steel Round Tube Oil Cylinder Tube For Heat Exchanger

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO
Model Number: ASTM A179
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3~10 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thick Wall|Thin Wall Application: Machinery|Oil Cylinder Tube|Building|Construction
Certificate: PED|ISO|BV|TUV Delivery Condition: Annealed|Normalized|Heat Treatment|BK|BKS|BKW|NBK|GBK|Tempered
Material: Carbon Steel|Alloy Steel Product Name: Cold Drawn Seamless Tube|Seamless Steel Tubes|Galvanized Steel Tube
Section Shape: Round Standard: ASTM A179
Surface Treatment: Varnish|Galvanized Technique: Seamless|Cold Drawn|ERW
High Light:

cold drawn tubes

,

cold drawn seamless steel tube


Product Description

ASTM A179 Galvanized Steel Round Tube Oil Cylinder Tube For Heat Exchanger



Quick Detail:



1,Standards: ASTM / DIN / EN / GOST / SAE / JIS etc

2,Material Grade: Carbon Steel / Alloy Steel or According to requirements.

Size: (mm)

OD: 19.05 mm

WT: 2.77 mm;

Length: max 25m



Description



Product name Heat Exchanger Tubes / Cold Drawn / ERW
Standard executived

ASTM / DIN / EN / GOST / SAE / JIS etc

(ASTM A179,ASTM A199, ASTM A200, ASTM A213, DIN 17175,JIS G3462,JIS G3458 )

Outside diameter 19.05mm or as required
Wall Thickness 2.77mm  or as required
Length 6m-25m also can be manufactured according to customers' requirements
Type Cold Drawn or ERW
Ends Plain ends or bevel ends
Delivery Conditions BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. AS per Standard.
Coating for protection black painting,anti-rust oiled or varnish,also can be required according to customers' requirements



Factory test and other terms



1.Hydrostatic or Nondestructive Electric Test

2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking

6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.



Main Specification Details



Name

Cold drawn or ERW straight steel tubes and pipes for heat exchanger

Standard

Meet or exceed ASTM,ASME,API,ANSI and DIN standards.

ASTM A106/A179/A192/A210/A213/A519 etc.

DIN2391/DIN17175/EN10305 etc

GB8162/GB8163/GB3639 etc

Material

A179,St35,St45,St52,E215,E235,E355,10,20,

A106,A179,A192,A210,T11,T22,T12 etc

Size

Outer diameter:6-114.0mm

Wall thickness:0.5-15mm

Length:max 2400mm,generally 6000mm

Application

Cold drawn or cold rolled precision seamless steel tubes for hydraulic pressure and

pneumatic services.


For Auto use,machinery use,oil cylinder tube,motorcycle shock reducer use,auto

shock reducer inner cylinder,etc.



Seamless steel pipes for low and medium pressure boiler, high pressure boiler,

ship-building,Liquid service, petroleum cracking, chemical fertilizer equipment,

Drawing-oil-equipment and structure purposes.

Business scope

DIN series cold drawn precision seamless steel tubes

DIN series cold rolled precision seamless steel tubes

Related coated and galvanized steel tubes

Rustproof phosphyorylated tube

Main characteric

No Oxidation Layer on the outer and inner walls;

No Leakage under high pressure;

No Crake under flating and flattening;

No distortion after cold bending;

High precision high cleanness;

Excellent brightness

cold drawn and hot finished

Superior performance for high pressure and temperature uses

Black finish and hot dip galvanized

Excellent corrosion resistance



Delivery condition



Designation

Symbol

Description

Cold finished (hard)

BK

Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.

Cold finished (soft)

BKW

The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding).

Cold finished and stress-relieved

BKS

Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.

Annealed

GBK

The last cold forming process is followed by annealing in a controlled atmosphere.

Normalized

NBK

The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.



All other tubes applicable for boiler and heat exchanger tube we can produce



Chinese Standard

Steel Grade/ No.

American Standard

Steel Grade/ No.

GB5310

20G,15MoG,12CrMoG,

12Cr2MoG,15CrMoG,

12Cr1MoVG,

ASTM A106

GR. A,B,C

GB9948

10,20,12CrMo,15CMo

ASTM A53

GR.A,B

GB3087

10,20

ASTM A192







ASTM A179







ASTM A210

A-1,C





ASTM A333

GR.1,GR3,GR6





ASTM A334

GR.1,GR3,GR6





ASTM A209

T1, Ta, Tb

German standard

Steel Grade/ No.

Japanese standard

Steel Grade/ No.

DIN17175

ST35.8, ST45.8

JIS G3454

STPG370,STPG410

DIN1629

ST37.0, ST44.0, ST52.0

JIS G3461

STB340, STB410, STB440

British Standard

Steel Grade/ No.

European standard

Steel Grade/ No.

BS3059-Ⅰ

320

EN10216-1

P195TR1/TR2,P235TR1/TR2,
P265TR1/TR2

BS3059-ⅡS1/S2; TC1/TC2

360,440,

EN10216-2
TC1,TC2

195GH,P235GH,
P265GH,



Applications



1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.

2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field

3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;

4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc

5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc

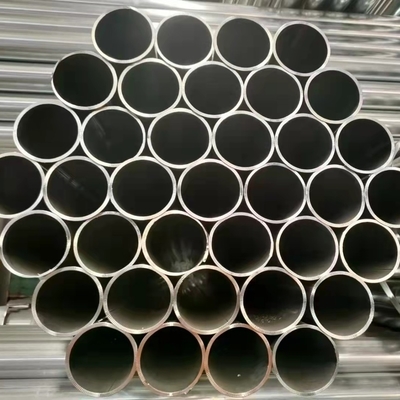

Product Photo



ASTM B633-07 Annealed Galvanized Steel Tube With Thin Wall , Cold Drawing E355 Steel Pipe 0

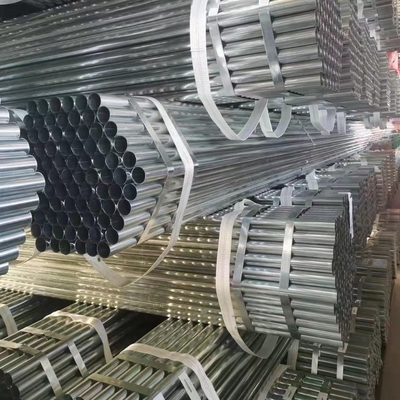

Factroy Pictures



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1



Pipe & Tube Processing



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2



Application



EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3

Packaging & Shippping



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4





Certificates



A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6
