Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WX SYLAISHI
Certification: SGS ISO ROHS
Model Number: DIN 2391 ISO 8535
Minimum Order Quantity: 1MT
Price: Negotiable
Packaging Details: standard waterproof package
Delivery Time: 7-10 Days
Payment Terms: 30%T/T in advance
Supply Ability: 8000MT/Month
Detail Information
Product Name: Precision Steel Tube Thickness: 0.5 - 10 Mm
Secondary Or Not: Non-secondary Delivery Condition: BK, GBK, BKW, BKS Or NBK
Section Shape: Round Type: Precision Steel Tube
High Light:

Galvanized Steel Tube

,

Mechanical Steel Tube


Product Description



Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic



Product Description:

The tubes can be produced in the following delivery conditions:

BK (+C) Cold finished/hard (cold finished as drawn).

No heat treatment after the last cold forming process.



BKW (+LC) Cold finished/soft (lightly cold worked)

After the last heat treatment there is a light finishing pass (cold drawing).



BKS (+SR) Cold finished/stress relieve annealed.

After the final cold forming process the tubes are stress relieve annealed.



GBK (+A) Annealed.

After the final cold forming process the tubes are annealed in a controlled atmosphere.



NBK (+N) Normalized. (Mainly focus on)

After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere.

Product name Precision Steel Tube
Place of Origin Wuxi, China
Brand ISO
Length 4 meters/piece(can be cstomized)
Thickness 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.1mm, 1.2mm, 1.5mm
Outer diameter 28mm±0.2mm
Whether alloy Non-alloy
Surface treatment Chrome-plated
Application Production line, workbench, production workshop
Color Silver
Technology ERW(Straight Seam Resistance Welded Pipe)
Section shape Round
Can it be reused Yes
Welding process High frequency welding
Special Pipe API Pipe
Packing 10 pieces/bundle(package)



Chemical Composition:



Steel grade

Chemical composition, as a percentage by mass

Symbol

Material number

C
max.

Si
max.

Mn

P
max.

S
max.

St 30 Si

1.0211

0.10

0.30

<=0.55

0.025

0.025

St 30 Al

1.0212

0.10

0.05

<=0.55

0.025

0.025

St 35

1.0308

0.17

0.35

<=0.40

0.025

0.025

St 45

1.0408

0.21

0.35

<=0.40

0.025

0.025

St 52

1.0580

0.22

0.55

<=1.60

0.025

0.025

The following alloying elements may be added: Nb: <=0,03%; Ti: <=0,03%; V: <=0,05%; Nb + Ti + V: <=0,05%.



Final Supply Conditions:



Designation

Symbol

Description

Cold finished (hard)

BK

Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.

Cold finished (soft)

BKW

The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding).

Cold finished and stress-relieved

BKS

Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.

Annealed

GBK

The last cold forming process is followed by annealing in a controlled atmosphere.

Normalized

NBK

The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.



Condition on Delivery:



Steel Grade

BK

BKW

GBK

NBK

Code No.

Tensile

Strength

N/mm2 min

Elongation at rupture N/mm2 min

Tensile

Strength

N/mm2 min

Elongation at rupture N/mm2 min

Tensile

Strength

N/mm2 min

Elongation at rupture N/mm2 min

Tensile

Strength

N/mm2 min

Elongation at rupture N/mm2 min

St30 Si

400

8

330

12

280

30

290-420

30

St30 Al

400

8

330

12

280

30

290-420

30

St 35

440

6

370

10

315

25

340-470

25

St 45

540

5

470

8

390

21

440-570

21

St 52

590

4

540

7

490

22

490-630

22

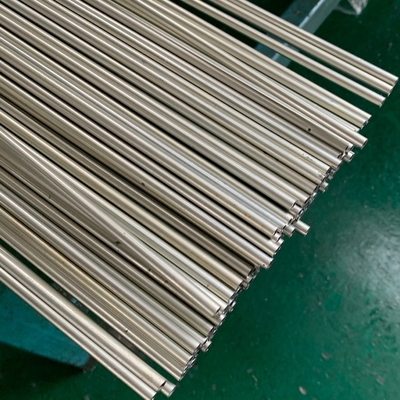

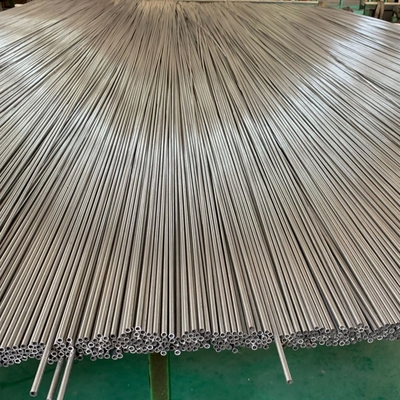

Detailed Photo:

Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic 0



Factroy Pictures:

Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic 1



Pipe & Tube Processing:

Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic 2



Steel Pipe & Tube Application:

Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic 3

Packaging and Shipping:

Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic 4



Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic 5

Certificates:

Galvanized DIN 2391 ISO 8535 Precision Steel Tube for Automotive , Hydraulic 6
