| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | WUXI SYLAITH |
| Certification: | ISO9001 |
| Model Number: | EN10305-1 EN10305-4 |
| Minimum Order Quantity: | 1MT |
| Price: | negotiable |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 3-15 days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Standard: | DIN 2391, EN10305-1, EN10305-4, BS 6323, ISO 8535 | Technique: | Cold Drawn |
|---|---|---|---|
| Surface Treatment: | Bright Annealed, Black Phosphated Or Galvanized | Thickness: | 0.5 - 10 Mm |
| Type: | Seamless Steel Pipe | Outer Diameter: | 1.5 - 60 Mm |
| High Light: | Galvanized Steel Tube,thin wall steel Tube |
||
DIN 2391 EN10305-1 EN10305-4 Mechanical Steel Tube Round For Automotive BS 6323, ISO 8535
SIZE:
Outer Diameter: 1.5mm-60mm
Wall Thickness: 0.3mm to 10mm
Certificates: according to EN 10204 3.1
Inspection Items: Tensile stength, Yield stength, Elongation, Flattenging, Flaring
Chemical analysis
Eddy Current Test 100%, Size and surface checking 100%
Other test item can be arranged as per request
DELIVERY CONDITIONS
The tubes can be produced in the following delivery conditions:
BK (+C) Cold finished/hard (cold finished as drawn).
No heat treatment after the last cold forming process.
BKW (+LC) Cold finished/soft (lightly cold worked)
After the last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed.
After the final cold forming process the tubes are stress relieve annealed.
GBK (+A) Annealed.
After the final cold forming process the tubes are annealed in a controlled atmosphere.
NBK (+N) Normalized. (Mainly focus on)
After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere.
Additional surface treatment:
1. Black phosphated
2. Galvanizing ( White/silver galvanizing, Yellow or Olive green galvanizing is avaible)

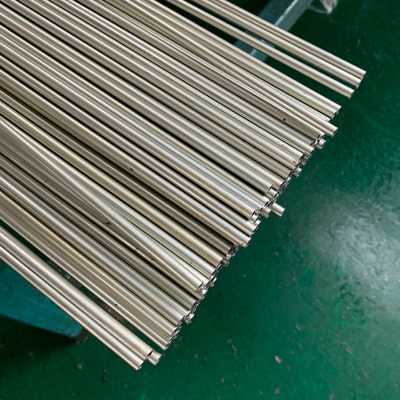

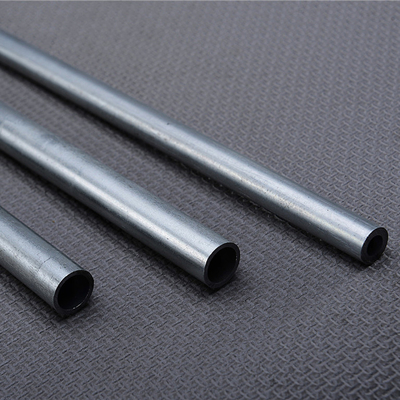

Product Photo
Factroy Pictures
Pipe & Tube Processing
Steel Pipe & Tube Application
Packaging and Shipping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4:CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
