JIS G3461 JIS G3462 Thin Wall Seamless Carbon Steel Tube Heat Treatment 24000mm
Product Details
| Application: | Boiler|Chemical|Fluid Pipe|Exchanger | Delivery Condition: | Heat Treatment |
|---|---|---|---|
| Grade: | A179|X20CrMoV12|Grade A|A192|T5|T9|T11|T21|T22|T2|T5b|T5c|T12|T17|T23|15Mo3|10CrMo910|13CrMo44|19Mn5 | Material: | Carbon Steel|Alloy Steel |
| Product Name: | Seamless Carbon Steel Tube | Section Shape: | Round |
| Surface Treatment: | Varnish | Technique: | Seamless|Weld |
| Highlight |
seamless steel tubes,cold drawn Steel Tube |
||
Product Description
JIS G3461 JIS G3462 Thin Wall Seamless Carbon Steel Tube Heat Treatment 24000mm
Product Description:
Thin-walled seamless steel pipes are made of steel ingots or solid tube blanks through perforation to make capillaries, which are then hot-rolled, cold-rolled or cold-drawn.
|
Product Name
|
JIS G3461 JIS G3462 Thin Wall Seamless Carbon Steel Tube Heat Treatment 24000mm
|
|
Material
|
GR.B,ST52, ST35, ST42, ST45,X42, X46, X52, X56, X60, X65, X70,SS304, SS316 etc.
|
|
Size
|
Size 1/4" to 24" Outside Diameter 13.7 mm to 610 mm
|
|
Standard
|
API5L , ASTM A106 Gr.B, ASTM A53 Gr.B,ANSI A210-1996, ANSI B36.10M-2004 , ASTM A1020-2002,ASTM A179-1990 ,BS 3059-2,DIN 17175 ,DIN 1630 ,DIN 2448
|
|
Certificates
|
API5L, ISO 9001:2008,SGS, BV,CCIC
|
|
Wall thickness
|
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
|
|
Surface Treatment
|
black paint, varnish, oil, galvanized, anti corrosion coatings
|
|
Marking
|
Standard marking, or according to your request. Marking Method: Spray white paint
|
|
Pipe Ends
|
Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
|
|
Pipe Length
|
1. Single Random Length and double Random Length.
2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length
3. fixed length(5.8m, 6m, 12m)
|
|
Packaging
|
Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.
|
|
Test
|
Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
|
|
Application
|
liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe.
|
|
Advantages
|
1.Reasonable price with excellent quality
2.Abundant stock and prompt delivery
3.Rich supply and export experience, sincere service
4.Reliable forwarder, 2-hour away from port.
|
JIS Standards For Reference:
|
OSUN STEEL Boiler Tube and Material/Steel Grade |
|
|
JIS |
JIS G 3461 (STB340, STB410, STB510) |
|
JIS G 3462 (STBA12, STBA13, STBA20, STBA22, STBA23, STBA24, STBA25, STBA26) |
|
|
JIS G 3463 (SUS304TB,SUS304HTB,SUS304LTB,SUS309TB,SUS309STB,SUS310TB,SUS310STB, |
|
|
SUS316TB,SUS316HTB,SUS316LTB,SUS316TiTB etc) |
|
|
SUS316TB,SUS316HTB,SUS316LTB,SUS316TiTB etc) |
|
|
JIS G 3464 (STBL380, STBL450, STBL690) |
|
|
ASTM |
ASTM A178/A178M (GRADE A, C, D) |
|
ASTM A179/A179M |
|
|
ASTM A192/A192M |
|
|
ASTM A213/A213M (T2,T5,T5b, T5c,T9,T11,T12,T17,T21,T22,T23 etc) |
|
|
ASTM A214/A214M |
|
|
ASTM A250/A250M |
|
|
ASTM A1020/A1020M (GRADE A, C, D) |
|
|
DIN |
DIN17175(St 35.8, St 45.8, 17Mn4, 19Mn5, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63, X20CrMoV121) |
|
GB |
GB3087(10#, 20#), GB5310(20G, 20MnG, 25MnG, 15MoG, 20MoG, 15CrMoG, 12Cr1MoVG, 10Cr9Mo1VNbN etc) |
Grade and Chemical Composition (%):
|
Standard |
Steel Grade |
Chemical Coposition |
|||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Cu |
Ni |
V |
||
|
JIS G3461 |
STB340 |
≤0.18 |
≤0.3 |
0.30-0.60 |
≤0.035 |
≤0.035 |
/ |
/ |
/ |
/ |
/ |
|
STB410 |
≤0.32 |
≤0.35 |
0.30-0.80 |
≤0.035 |
≤0.035 |
/ |
/ |
/ |
/ |
/ |
|
|
JIS G3462 |
STBA22 |
≤0.15 |
≤0.50 |
0.30-0.60 |
≤0.035 |
≤0.035 |
0.80-1.25 |
0.45-0.65 |
/ |
/ |
/ |
|
STBA23 |
≤0.15 |
0.50-1.00 |
0.30-0.60 |
≤0.030 |
≤0.030 |
1.00-1.50 |
0.45-0.65 |
/ |
/ |
/ |
|
Mechanical Properties:
|
Standard |
Steel Grade |
Tensile Strength(MPa) |
Yield Point(MPa) |
Elongation(%) |
|
JIS G3461 |
STB340 |
≥340 |
≥175 |
≥35 |
|
STB410 |
≥410 |
≥255 |
≥25 |
|
|
JIS G3462 |
STBA22 |
≥415 |
≥210 |
≥30 |
|
STBA23 |
≥415 |
≥210 |
≥30 |

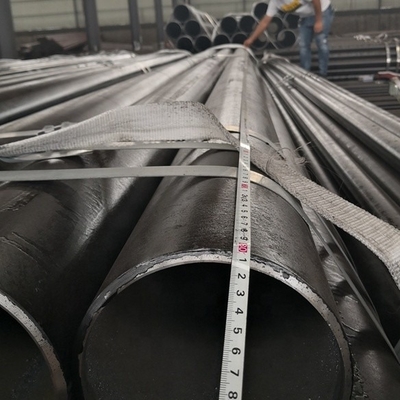

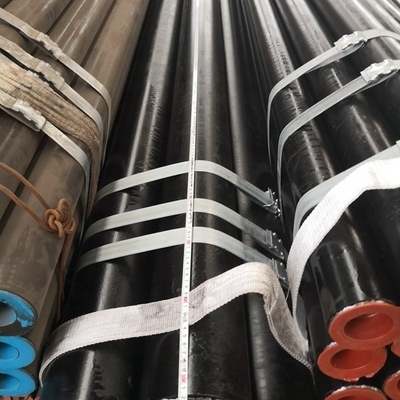

Detailed Photo:
Factory Photo:
Processing:
Applications:
JIS 3461: Carbon steel tubes for boiler and heat exchanger
JIS 3462: Alloy steel for Boiler and heatexchanger tubes
JIS 3464: Steel heat exchanger tubes for low temperature service
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
