ASTM A210 A210M 5" Round Seamless Carbon Steel Tube , Thin Wall Superheater Tubes
Product Description
It is used for boiler and boiler flue tubes. Including safe end, vault and supporting tube and super heater min wall thickness seamless medium--carbon steel tube
|
Product name
|
Seamless steel pipe; SMLS steel pipes
|
|
Standards & Grades |
GB/T8162 20#, 35#, 45# Q345, Q345B, Q345C, Q345D, Q345E, 20Mn2, 30Mn2, 40Mn2, 20CrMo, 30CrMo, 35CrMo, 42CrMo; GB/T8163 20#;
GB/T3087 10#, 20#; GB/T5310 20G, 20MnG, 25MnG, 15CrMoG, 12Cr1MoVG; GB/T9948 20#, 16Mn,12CrMo, 15CrMo; GB6479 20#, 16Mn, 12CrMo, 15CrMo; ASME SA213 T5, T9; API 5L, A, B, X42, X46, X56, X60, X65; ASTM A106, ASTM A53 Gr B; SA210, SA178, SA192, SA335, T2/P2, T11/P11, T12/P12, T22/P22, T91/P91; DIN 17175 ST35.8, ST45.8, DIN1629; API 5L Gr.B, X42-X70; ISO 11960, GOST, API 5CT J55 K55 N80-1 N80-Q L80-1 L80-9Cr P110, etc. |
|
Structural pipe
|
20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2, SAE1018, SAE1020, SAE1518, SAE1045.
|
|
Liquid pipe
|
20# q295b-e, q345b-e
|
|
Alloy pipe
|
4140, 42CrMo, 32CrMo, 15CrMo
|
|
Outer Diameter |
21~610mm |
|
Wall Thickness
|
1.5~75mm
|
|
Length
|
6m,12m, or as required
|
|
Delivery conditions
|
N-(normalizing); A-(annealing); T-(tempering); Q-(quenching); N+T; Q+T.etc
|
|
Processing
|
Galvanizing; cutting; making thread outside the pipe; Machining.
|
|
Ends
|
Flat end or beveled end, threaded end. Protected by plastic caps or steel rings
|
|
Packing
|
Black paint, Varnish painting, Tarpaulin packing
|
|
Standard export packaging, suitable for various modes of transportation,Or provided on request.
|
|
|
Pricing Term
|
FOB,CFR,CIF,
|
|
Payment term
|
TT, L/C, etc.
|
|
MOQ
|
1 Ton
|
Chemical Composition:
|
STANDARD |
GRADE |
CHEMICAL COMPOSITION |
|||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Cu |
Ni |
V |
||
|
ASTM A210 |
A-1 |
≤0.27 |
≥0.10 |
≤0.93 |
≤0.035 |
≤0.035 |
|
|
|
|
|
|
C |
≤0.35 |
≥0.10 |
0.291.06 |
≤0.035 |
≤0.035 |
|
|
|
|
|
|
Mechanical Properties:
|
Grade |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
|
A-1 |
≥255 |
≥415 |
30 |
|
C |
≥275 |
≥485 |
30 |
Wall Thickness Tolerance:
|
ASME SA-210 |
OD |
WT |
WT Tolerance |
|
<=38.1 |
/ |
+20%,-0% |
|
|
>38.1 |
/ |
+20%,-0% |

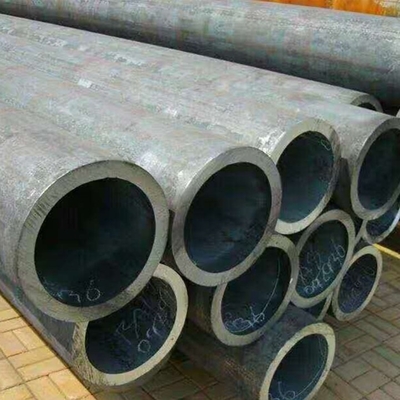

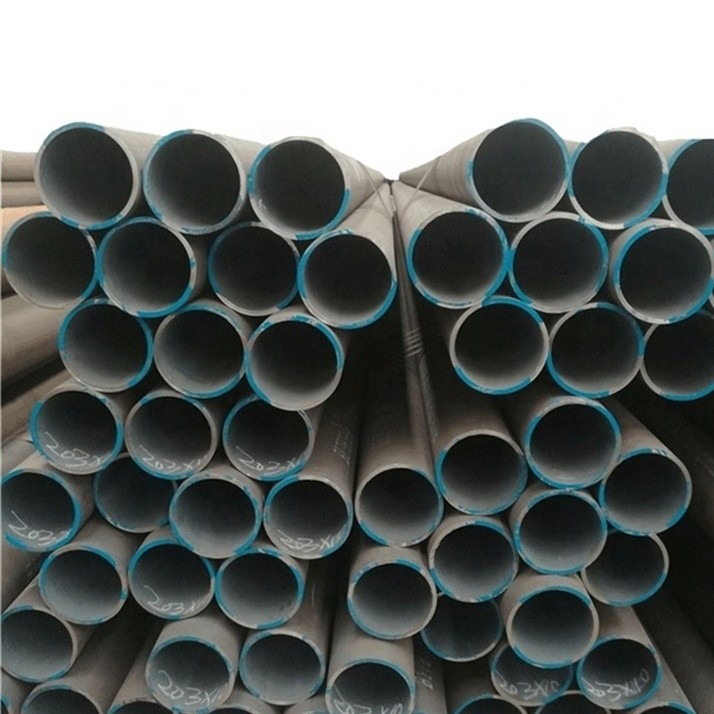

Detailed Photo:
Factroy Pictures:
Pipe & Tube Processing:
Application:
Packaging & Shipping:
Certificates:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
