ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10

1MT
MOQ
Negotiable
Price
ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Boiler|Chemical|Fluid Pipe
Delivery Condition: Annealed|BK|BKS|Normalized|Tempered|Heat Treatment|BKW|NBK|GBK
Ends Type: Bevel Ends|Plain Ends
Grade: Grade A|Grade C|Grade D
Material: Carbon Steel
Product Name: Seamless Carbon Steel Tube
Section Shape: Round
Standard: ASTM A178|ASME SA178
Surface Treatment: Varnish
Technique: Weld
Highlight:

seamless steel Carbon Fluid tubes

,

A178 cold drawn Steel Tube

,

Weld Thin Wall Carbon Steel Tube

Basic Infomation
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: ASTM A178 SCH10 SCH30
Payment & Shipping Terms
Packaging Details: standard waterproof package
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month
Product Description



ASTM A178  3.1 / 2" Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 SCH30



Product Description:

ASTM A178 tubes are a kind of frequently-used tubes in our life,they are mainly used in manufacturing heating pipelines,containers,coal-saving devices,superheaters,arch tube,reheater tube,airway tube etc.

OD

10mm-610mm(1/8”-24”)

WT

2mm-60mm

Length

Random Length: 3.5m-12m,

or fixed length 5.8m, 6m, 11.8m, 12m, or as the customer’s requirement.

Standard

ASTM A178, ASTM A106, API 5L, DIN 17175, SA106B

GOST8731/8732, G3457/G3452 etc.

Material

Q235B, 10#,20#,45#, 16Mn, 15MnV.

A53B, A106B, SA106B, API5L B, A192, A179C, A213-T12, A213-T22,

A335-P1, A335-P2, A333

ST37, ST33, ST37-2, ST35.8 ST52 etc.

Certificate

API certificate and ISO certificate.

Surface

Rust remove, black painting, antirust oil, varnish, 3PE,

hot-dip galvanized etc.

Package

By bundles, plastic caps or steel caps, woven,

wooden cases or as requirement.

Capability

6000tons/month.

End

BE/PE.as per your request

Advantage

Big diameter and thick wall pipes.

Best price with good quality.

The partner you can trust.

Good service and very patient.



Chemical Composition:



Composition,%

Element



Grade A,

Low-Carbon Steel

Grade C,

Medium-Carbon Steel

Grade D

Carbon-Manganese Steel

Carbon

Managanese

Phosphorus,max

Sulfur,max

Silicon

0.06-0.18

0.27-0.63

0.035

0.035

0.35max

0.08max

0.035

0.035

0.27max

1.00-1.50

0.030

0.015

0.01 min



Mechanical Properties:



ensileRequirements



GradeC

GradeD

Tensilestrength,min,ksi[MPa]

Yieldstrength,min,ksi[MPa]

Elongationin2in.or50mm,min,%

For longitudinal strip tests a deduction for

Each1⁄32-in[0.8mm]decreaseinwallthicknessbelow5⁄16in.[8mm]

From the basic minimum elongation of the following percentage points shall be made

60[415]

37[255]

30

1.50A

70[485]

40[275]

30

1.50A

Grade A

Tensilestrength,min,ksi[MPa]

Yieldstrength,min,ksi[MPa]

Elongationin2in.or50mm,min,%

47[325]

26[180]

35



Factory test and other terms:

1. Hydrostatic or Nondestructive Electric Test

2. Heat Treatment: according to Standard
3. Surface Condition:According to Standard.
4. Grain Size:According to standard
5. Sampling:flattening,flaring,grain size,Marking

6. we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.

Detailed Photo:

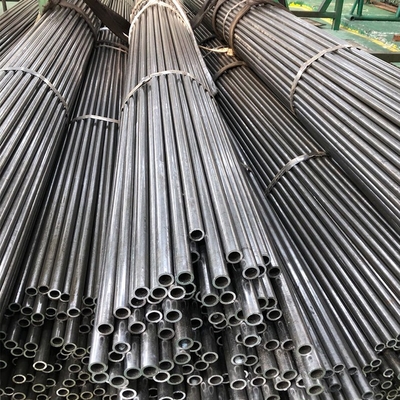

ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 0

Application:

ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 1

Factroy Pictures:

ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 2

Pipe & Tube Processing:

ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 3



Packaging & Shipping:

ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 4

ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 5

Certificates:

ASTM A178 Weld Thin Wall Seamless Carbon Steel Tube Fluid SCH10 6



FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
