St52 Hot Rolled Steel Gas Cylinder Seamless Tube For Construction

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: DIN1629 DIN2448
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month
Detail Information
Features: Thin Wall Application: Oil|Gas|Fluid|Construction|Chemical|Petroleum|Traffic
Certificate: API|PED|BV|ISO|TUV Ends: Bevel|Plain
Material: A53|A106 Grade B|Q235|Q345|34CrMo4|A106 Grade C Product Name: Hot Rolled Steel Tube|Seamless Steel Tubes
Section Shape: Round Standard: ASTM|DIN|EN|SAE|JIS|GOST
Surface Treatment: Varnish|Bare|Varnished Technique: Hot Rolled|Seamless|Cold Rolled
High Light:

Seamless Steel Tube For Construction

,

St52 Hot Rolled Steel Tube

,

Gas Cylinder Seamless Steel Tube


Product Description


 API St52 DIN1629 St52 DIN2448 Hot Rolled Steel Gas Cylinder Tube For Construction

 Its applications include transportation of oil,gas or fluid,Construction,Electricity,Machine building industy,Chemical industy,Petroleum,Traffic, etc.


Product Name Hot Rolled / Hot expansion Seamless Carbon Steel Pipe
O.D 60.3mm-914.4mm
W.T3.91mm-59.54mm
Process methodHot rolled/ Hot expansion/ Cold drawn
Length5-12m as per customer's requirements
Material

53, A106 Grade B, A106 Grade C, Q235, Q345, ASTM A519 37Mn, 34CrMo4.
(10, 20, 30, 35, 45,16Mn, 5MnV, 40Cr, 30CrMnSi, 45Mn2, 40MnB, etc)

Standard

ASTM A106-B ASTM A53-B API 5L-B
API 5L, X42, X52, and 5CT ,J55 ,K55
SAE1020 ,SAE1045
JIS G4051, S20C ,S45C, JIS G3454, JIS 3454 ,STPG42
DIN 17175 ST 45-8, ST 52

ToleranceOD :+1% / -1% WT: +12.5% / -10%
Endsbevel or plain
PackagePackage: bundles,seaworthy wooden cases,container
Coating Internally bare, externally varnished


Production process of hot rolled tubes

Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.
Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.

Advantages
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed. This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.

Regular Hot Rolled Pipe Sizes:


(Or per customers’ requirements)


OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

12×1.5

133 ×4~12

406.4×6~25

73×4-4.5-5-6-7-8-9-10-12-15

219×30-40

14×1.5-2.5-3

141.3×4~12

426 ×6~25

76×4-4.5-5-6-7-8-9-10-12-14

245×8-10-14-17-20-22

16×1.5-2.5-4

159 ×4~12

457 ×6~38

83×4.5-5-10/ 12 14 16 18 20

245×25-28-30-34-40

18×2.3-4-5

165 ×4~20

508 ×6~38

89×4.5-8-10/12-14 16 -18 20

273×7-9-12-15-18-20-25

20×2.5-3-5

168.3×4~20

530 ×6~40

95×4.5-6-8/10-12-14-16-20

273×30-35-38-40

24×2.5-3-4-5-6

177.8×4~22

559 ×6~40

102×4.5-5-6-7-8-10-12-14-16-20

299×8-12-16-20-24-28

25×2.5-3-4-5-6

323.8×6~25

610 ×6~40

108×4.5-5-6-7-8-10/12-14-18-20-22

299×30-32-36-38-40

28×3-3.5-4-5-6

340 ×6~25

630 ×6~40

114×4.5-5-6-7-8-10-12-14-18-20

325×8-12-14-18-38

32×3.5-4-5-6-8

355.6×6~25

>630×6~44

121×4.5-5-6-7-8-10-12-14-16-20

325×28-32-34-38

34×4-5-6-8

377 ×6~25

<914×6~60

127×4.5-5-6-7-8-10-12-14-16-20

351×10-16-20-25-40

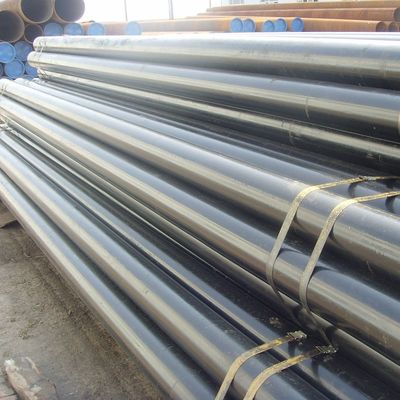

Product Photo

St52 Hot Rolled Steel Gas Cylinder Seamless Tube For Construction 0

Factroy Pictures


A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1

Pipe & Tube Processing Photo

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2

Application

EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3
Packaging & Shippping


A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 5

Certificates
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6
FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time
