ASTM A106 ASME SA106 Grade A Grade B Grade C Seamless Thin Wall Carbon Steel Tube Pipe
For petroleum/ natural gas pipeline , for conveying water,drainage,coal gas, mineral slurry and other low-middle
pressure liquids. Also for chemical industry, building structure,heat-supply and pile driving projects.
Standards | ASTM A106 , ASME SA106 |
Steel Grade | GradeA GradeB and GradeC |
Diameter | 6mm to 350mm |
Thickness | 1 - 30 mm |
Length | 1m~25m |
Application |
Temperature-resistant seamless steel pipe for high-pressure boiler |
Packing | Beveled / black painting / plastic caps / in bundles / steel strips / wooden protection |
Inspection and Test | Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test. |
Surface treatment | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
Mark | As requested |
Delivery Condition | Annealed, Normalized, Normalized and Tempered |
Chemical Composition
|
C≤ |
Mn |
P≤ |
S≤ |
Si≥ |
Cr≤ |
Cu≤ |
Mo≤ |
Ni≤ |
V≤ |
A |
0.25 |
0.27-0.93 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
B |
0.30 |
0.29-1.06 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
C |
0.35 |
0.29-1.06 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
Mechanical Properties
Grade |
Rm Mpa Tensile Strength |
Mpa |
Elongation |
Delivery Condition |
A |
≥330 |
≥205 |
20 |
Annealed |
B |
≥415 |
≥240 |
20 |
Annealed |
C |
≥485 |
≥275 |
20 |
Annealed |
Dimension Tolerances
Pipe Type |
Pipe Sizes |
Tolerances |
|
Cold Drawn |
OD |
≤48.3mm |
±0.40mm |
≥60.3mm |
±1%mm |
||
WT |
±12.5% |

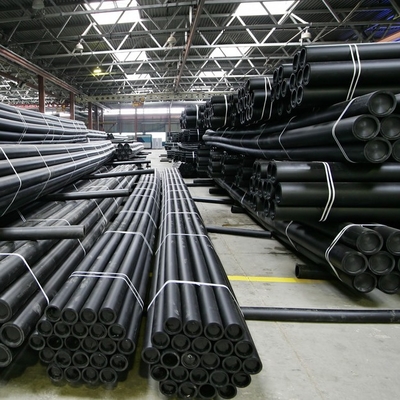

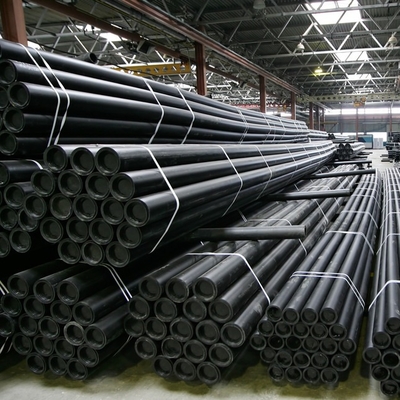

Product Photo
Factroy Picture
Pipe & Tube Processing Photo
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
