Thin Wall ERW Carbon Steel Tube ASTM A513 Carbon And Alloy Steel Pipe For Conveying Gas

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: ISO9001
Model Number: ASTM A513
Minimum Order Quantity: 1 MT
Price: negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thin Wall Application: Machinery|Automobile
Delivery Condition: Annealed|BKW|NBK|GBK|Normalized|BK Material: Carbon Steel
Product Name: ERW Steel Tube Section Shape: Round
Standard: ASTM A513 Technique: Seamless|Weld|Welded
High Light:

erw steel tubing

,

weld steel tube


Product Description

Thin Wall ERW Carbon Steel Tube ASTM A513 Carbon And Alloy Steel Pipe For Conveying Gas





Quick Detail:



Standard: ASTM A513
Size:(mm)
Out Dimensions:  6mm - 350mm
Wall Thickness:  0.8mm - 35mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)





Description:



The ASTM A513 is a kind of seamless steel pipes and is called Electric-Resistance-Welded Carbon Steel Pipe.

This seamless steel pipe has a round section shape.

The ASTM A513 steel pipe has some sorts , for example:ASTM A513 1010,ASTM A513 1020,ASTM A513 1025, ect.

ASTM A513 seamless steel pipe is widely used in Machinery and Automobile.

As an experienced China seamless steel pipe manufacturer, we manufacture our steel pipes according to ISO9001-2000, PED, API, TS16949,KR,LR so that we can be assure of the quality of steel pipes. Besides, we implemented the following inspections and tests: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test.





Main Steel Grade:





Q195 → Grade B, SS330,SPHC, S185

Q215 → Grade C,CS Type B,SS330, SPHC

Q235 → Grade D,SS400,S235JR,S235JO,S235J2

ASTM A178 Grade A, C, D

ASTM A179 Grade A, C, D

ASTM A192

ASTM A210 GradeA-1, C

BS3059-Ⅰ 320 CFS

BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2

EN10216-1 P195TR1/TR2, P235TR1/TR2, P265TR1/TR2

EN10216-2 P195GH, P235GH, P265GH, TC1, TC2

DIN17175 ST35.8, ST45.8

DIN1629 ST37.0, ST44.0, ST50.0

JIS G3454 STPG370, STPG410

JIS G3461 STB340, STB410, STB440

GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB

GB9948 10, 20, 12CrMo, 15CMo

GB3087 10, 20

(Or per customers’ requirement.)





Packing:


Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection


Inspection and Test:


Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test



Surface treatment:


Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting

Mark:


Marking or mechanical stamp on each piece of tube to be confirmed or as requested



Method of manufacture:



Electric-Resistance-Welded





Delivery condition:



The tubes shall be supplied in one of the following delivery conditions

a) Cold finished/hard (cold finished as drawn): BK;

b) Cold finished/soft (lightly cold worked): BKW

c) Annealed: GBK

d) Annealed (including de-scaling): GZF;

e) Normalized: NBK

f) Normalized (including de-scaling): NZF.





Related Steel Grade Chemical composition Limits(%) :



Grade

Carbon

Manganese

Phosphorus (Max)

Sulfur (max)

Silicon

Nickel

chromium

Molybdenum

1010

0.08~0.03

0.30~0.60

0.035

0.035

--

--

--

--

1020

0.18~0.23

0.30~0.60

0.035

0.035

--

--

--

--

1025

0.22~0.28

0.30~0.60

0.035

0.035

--

--

--

--

1035

0.32~0.38

0.60~0.90

0.035

0.035

--

--

--

--

1040

0.37~0.44

0.60~0.90

0.040

0.050

--

--

--

--





Applications:



ASTM A513 Carbon and Alloy seamless steel pipe is widely used in Machinery and Automobile.





Competitive Advantage:



1) Fast delivery
2) Non-standard sizes and made-to-order
3) Small min order quantity
4) Economical Pricing
5) Quality confirming to International Standards
6) Material Test Certificates for Quality Assurance
7) Technical Qualified After Sales
8) Excellent Delivery Conditions

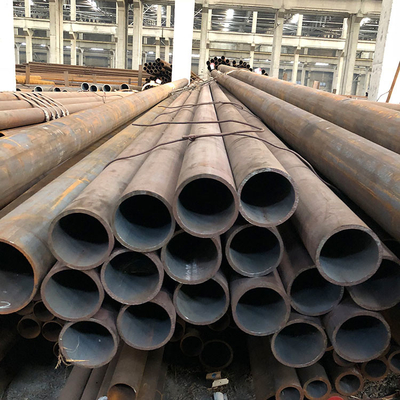

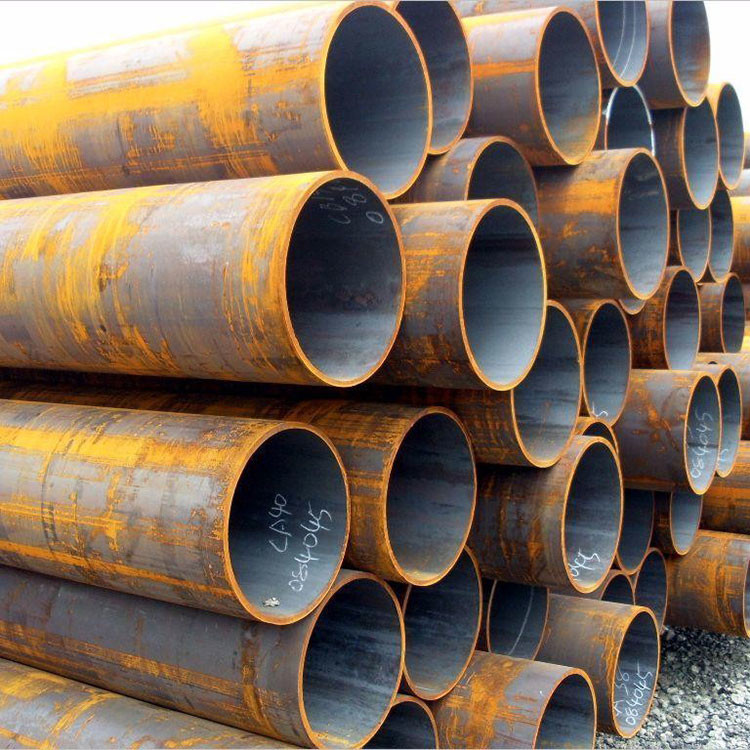

Product Photo

Thin Wall ERW Carbon Steel Tube ASTM A513 Carbon And Alloy Steel Pipe For Conveying Gas 0Thin Wall ERW Carbon Steel Tube ASTM A513 Carbon And Alloy Steel Pipe For Conveying Gas 1




Factroy Pictures

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 1




Pipe & Tube Processing Photo

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 2


Application



EN10305-1 E235C C35E Industrial Precision Carbon Seamless Steel Tube Small Diameter 6mm 3

Packaging & Shippping

A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 4
A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 5




Certificates


A192 / A192M Boiler Tubes Seamless Steel Tubes 0.8mm - 35mm Stress Released 6

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
