Cold Drawn Precision Seamless STKM11A Carbon Steel Round Tube Precision Steel Tube

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001
Model Number: STKM11A
Minimum Order Quantity: 1 MT
Price: negotiable
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 3-15 days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Application: Structure Pipe Outer Diameter: 1 - 48 Inch
Thickness: 2.77 - 60 Mm Length: 12M, 6m, 6.4M, 5.8m-12m
Grade: STKM11A, STPA24 Technique: Cold Drawn
Special Pipe: Thick Wall Pipe Alloy Or Not: Non-Alloy
High Light:

Mechanical Steel Tube

,

thin wall steel Tube


Product Description


Cold Drawn Precision Seamless STKM11A Carbon Steel Round Tube Precision Steel Tube

We are professional and experienced supplier of steel products in china.
We will provide you with high quality and low price, and we also offer good service.
If our products can meet your needs, please contact us freely.
We are looking forward to cooperating with you, and welcome your inquiry!

TypeSeamless Carbon Steel Pipe
Material and GradeSTKM 11A.
Manufacture MethodHot Rolled.& Cold Draw
Delivery ConditionHot Finished
Independence InspectionChemical Test, Mechanical Test.
ApplicationFor Mechanical Service
Third Party InspectionSGS, BV, INTERNET, etc.
PackingPallet with Waterproof Packing/in Bundles or as Your Requirement.
Payment TermsTT/LC
Delivery Time7-25 Days after Receiving the Deposit




STKM 11A Chemical Components and Mechanical Performance



Standard

Grade
Chemical ComponentsMechanical Performance
CSiMnPCuNiSCrTensile Strength
(Mpa)
Yield Strength
(Mpa)
Elongation
(%)

STKM11A
B0.07-0.140.17-0.340.35-0.65≤0.35≤0.25≤0.25≤0.04≤0.15≥335≥205≥31

Products Related to STKM 11A Seamless Carbon Steel Pipe 38.8 X 1.15mm Hot Rolled

Standard:(GB699-1988,GB700-1988,GB3077-1988,GB702-1986,QJ/HG02.17-199

Specifications

Thickness8~180mm
Width1300~2600mm
Length4000~12000mm


Standard Reference

Steel GradeStandardCorresponding Foreigh StandardsMain Function
Q235/Q275GB/T 700 GB/T 3274EN 10025-2ISO 630ASTM A283MJIS G3101 JIS G3106

Carbon constructional steel is an economic steel plate with low cost and wide usage.
It is widely used in manufacturing general components for automobiles, ships, bridges, boilers and large machineries.
It can also be used in manucaturing the cases and the bases of large motors and various pumps.


Product Size

Steel GradePlate Thickness mmPlate Width mmPlate Length mmCondition of Delivery
Q235/Q2758~180mm1300~26004000~12000

Normally delivered as hot rolled;
can also be delievered as per users' requirements(except Grade A steel)


Size & Appearance Tolerance: as per Standard GB/T 709-2006
Chemical Composition(wt%)

Steel GradeCSiMnPS
Q235A≤0.22≤0.35≤1.40≤0.045≤0.050
Q235B≤0.20≤1.40≤0.045
Q235C≤0.17≤1.40≤0.040≤0.040
Q235D≤0.17≤1.40≤0.035≤0.035
Q275A≤0.240.35≤1.50≤0.045≤0.050

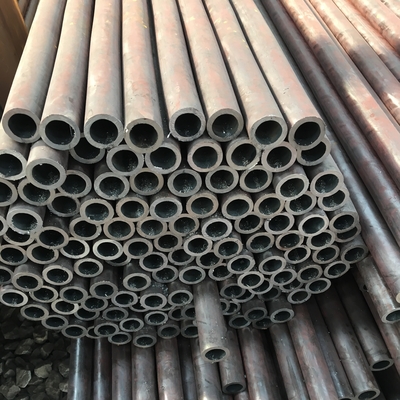

Product Photo

Cold Drawn Precision Seamless STKM11A Carbon Steel Round Tube Precision Steel Tube 0

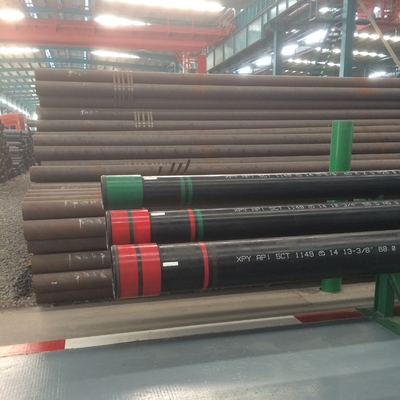

Factroy Pictures

BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 1

Pipe & Tube Processing

BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 2

Steel Pipe & Tube Application
BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 3
Packaging and Shipping

BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 4
BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 5

Certificates
BS 6323 DIN 2391 Precision Steel Tube Carbon Steel Seamless Tube 6

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4:CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
