Hydraulic Cylinder EN10305-2 6" Mechanical Welded Seamless Carbon Steel Tube Cold Drawn Steel Honed Tube For Car

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: EN10305-2
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~15days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Thickness: 1 - 8 Mm Grade:: ST52
Tolerance: ±5%, ±1% Material:: Q195/Q235/Q345
Surface Treatment: Cold Rolled Processing Service: Welding
High Light:

seamless steel tubes

,

cold drawn seamless tube


Product Description



Hydraulic Cylinder EN10305-2 6" Mechanical Welded Seamless Carbon Steel Tube Cold Drawn Steel Honed Tube For Car



Precision steel tubes

To be used in hydraulic system, automobile and precision machinery parts for cars and cylinder.



Product Name
China Honed Tube Suppliers Manufacturers Factory
Material
10#,20#,45#,Q345,A106-B,20Cr,15CrMo,St37,St42,ASTM 4140 etc.
Grade E155,E195,E235,E275,E355
Standard
JIS,GB,ASTM,DIN
Technique
Cold Rolled, cold drawn, honed
OD
10~335mm,1/2"~12"
Wall Thickness
2~25mm,SCH10~XXS
Length
5.8m~12m/customized design
Delivery status Delivery status: BK(+C), BKS(+SR), BKW(+LC), GBK(+A), NBK(+N)
Surface Treatment
black painting, varnish, oil, galvanized, anti corrosion coatings
Packaging
1. Bundle packing.
2. Bevelled end or plain end or warnished as per buyer's required.
3. Marking: as per customer's requests.
MOQ
1 ton for normal material
Payment Terms
T/T,L/C etc
Testing
Chemical Component Analysis, Mechanical Properties,
Exterior Size Inspection, hydraulic testing etc.
Application
Structure pipe; High and low pressure boiler tube; Liquid delivery; Seamless steel pipe for petroleum cracking ,Oil pipe,Gas pipe
Advantages
1.Reasonable price with excellent quality
2.Abundant stock and prompt delivery
3.Rich supply and export experience, sincere service
4.Reliable forwarder, 2-hour away from port.



Grade and Chemical Composition ( % )



Grade

Chemical Composition (%)

Steel Name

Steel Number

C(Max)

Si(Max)

Mn(Max)

P(Max)

S(Max)

Cr

NI

Cu

Mo

V



E155

1.0033

0.11

0.35

0.70

0.03

0.025

-

-

-

-

-



E195

1.0034

0.15

0.35

0.70

0.03

0.025

-

-

-

-

-



E235

1.0308

0.17

0.35

1.20

0.03

0.025













E275

1.0225

0.21

0.35

1.40

0.03

0.025













E355

1.0580

0.22

0.35

1.60

0.03

0.025















Mechanical properties



Steel Grade

Minimum values for the delivery condition

Steel Name

Steel Number

(+C c )

(+LC c )

(+SR)

(+A d )

(+N)NBK



Rm Mpa

A%

Rm Mpa

A%

Rm Mpa

ReH Mpa

A%

Rm Mpa

A%

Rm Mpa

ReH e Mpa

A%



E155

1.0033

400

6

350

10

350

245

18

260

28

28

270-410

155



E195

1.0034

420

6

370

10

370

260

18

290

28

28

300-440

195



E235

1.0308

490

6

440

10

440

325

14

315

25

25

340-480

235



E275

1.0225

560

5

510

8

510

375

12

390

21

21

410-550

275



E355

1.0580

640

4

590

6

590

435

10

450

22

22

490-630

355





A Rm: tensile strength; ReH: upper yield strength; A: elongation after fracture
B 1Mpa=1N/mm 2
C Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
D For calculation purposes the following relations are recommended:
For delivery condition +C: ReH≥ 0.8Rm for delivery condition +LC: ReH≥ 0.7Rm
E For calculation purposes the following relation is recommended: ReH≥ 0.5Rm
F For tubes with outside diameter≤ 30mm and wall thickness≤ 3mm the ReH minimum values are 10Mpa lower than the values given in this table.

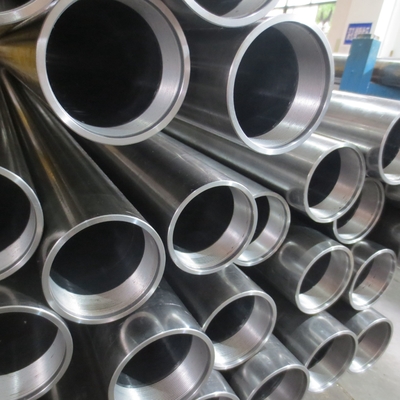

Product show



Hydraulic Cylinder EN10305-2  6" Mechanical Welded Seamless Carbon Steel Tube Cold Drawn Steel Honed Tube For Car 0



Application



ASTM A106 GR.B SCH 40 C20 Precision Hot Rolled Seamless Steel Pipe 1



Packing & Delivery



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 1



Our Factory



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 2



Certificates



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 3



FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.

We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available



Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.



Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
