ASTM 519-89/ASME SA519 Gr.1010,1015,1020,4140,5120 Seamless Carbon Steel Mechanical Tube
Carbon steel pipe or commonly known as carbon steel pipe is made of steel ingot or solid tube billet through perforation of wool pipe, and then made by hot rolling, cold rolling or cold dialing.
Carbon steel pipe plays an important role in China's steel pipe industry.
| Product Name | Seamless Carbon steel Mechanical tube |
| Standard | ASTM 519-89/ASME SA519 |
| Grade | 1010,1015,1020,4140,5120 |
| Application | Machinery, Automobiles, Bicycles,Furniture, Appliances and Other machine parts. |
| Size Range | O.D 12.7-322.8mm |
| W.T 1.2-40mm | |
| Length | 3-12M or according to your requirements |
Chemical Composition & Mechanical Properties
| Standard | Grade | Chemical Composition% | ||||||||
| C | Mn | P | S | Si | ||||||
| ASTM 519 | 1010 | ≤0.12 | ≤0.60 | ≤0.04 | ≤0.04 | ≤0.35 | ||||
| 1015 | ≤0.20 | ≤0.60 | ≤0.04 | ≤0.04 | ≤0.35 | |||||
| 1020 | ≤0.25 | 0.3~0.9 | ≤0.04 | ≤0.04 | ≤0.35 | |||||
| 4140 | 0.38~0.43 | 0.60~085 | ≤0.03 | ≤0.03 | 0.15~0.35 | |||||
| 5120 | 0.18~0.23 | 0.60~085 | ≤0.03 | ≤0.03 | 0.15~0.35 | |||||
| Standard | Grade | Mechanical Properties | ||||||||
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||||||||
| ASTM 519 | 1010 | ≥290 | - | ≥35 | ||||||
| 1015 | ≥340 | ≥175 | ≥35 | |||||||
| 1020 | ≥370 | ≥215 | ≥30 | |||||||
| 4140 | ≥383 | ≥544 | ≥44 | |||||||
| 5120 | ≥455 | ≥365 | ≥32 | |||||||
Delivery Condition
| Designation | Symbol | Description |
| Cold finished (hard) | BK | Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
| Cold finished (soft) | BKW | The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding). |
| Cold finished and stress-relieved | BKS | Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
| Annealed | GBK | The last cold forming process is followed by annealing in a controlled atmosphere. |
| Normalized | NBK | The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
Inspections and tests performed
Chemical Composition,Mechanical Properties,Visual appearance and dimensions Test,NDT,Grain Size Test.
Surface treatment
Oil-dip,varnish,Shot Blasting

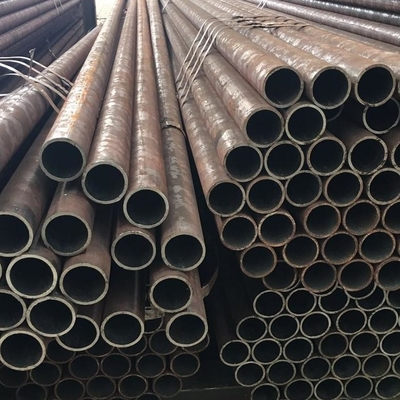

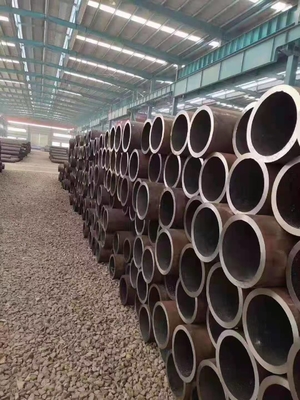

Product show
Application
Packing & Delivery
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
