Stainless Steel Seamless Pipe ISO Certificate 316L Cold Rolled 300 Series With Annealed Pickled
Product Details
| Type: | Seamless | Application: | For Fluid And Gas Transport |
|---|---|---|---|
| Processing Service: | Bending, Welding, Cutting | Technique: | Cold Rolled Hot Rolled |
| Payment Terms: | L/C T/T (30%DEPOSIT) | MOQ: | 1 Ton |
| Highlight |
Annealed Pickled Seamless Pipe,Steel 316L Cold Rolled Seamless Pipe,300 Series Seamless Pipe |
||
Product Description
Pipe Stainless Steel ISO Certificate 316L Seamless Cold Rolled Hot Rolled 300 Series With Annealed Pickled Surface
Our company has been dedicated to producing seamless stainless steel pipe since 2010 , owning complete producing technology and abundant managing experience
| Product name | stainless steel pipe/tube |
| Steel grade | 300 series |
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296 |
| Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N, |
| Surface | Polishing,annealing,pickling,bright |
| Technique | Cold Rolled, Hot Rolled |
| Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 6mm-2500mm (3/8"-100") |
| Delivery time | Prompt delivery or according to the order quantity |
| Package | Standard export seaworthy package,or as required. |
| Application | Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper |
| making,shipbuilding,boiler fields. | |
| Pipes also can be made according to the customer's required. | |
| Container size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM | |
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Chemical Composition
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A |
N/A |

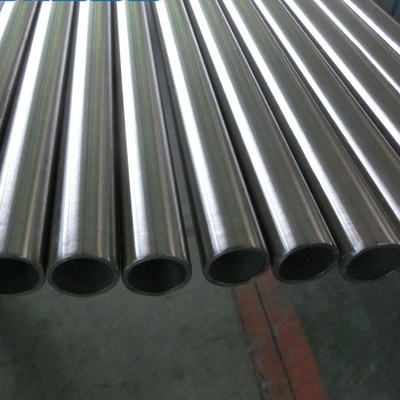

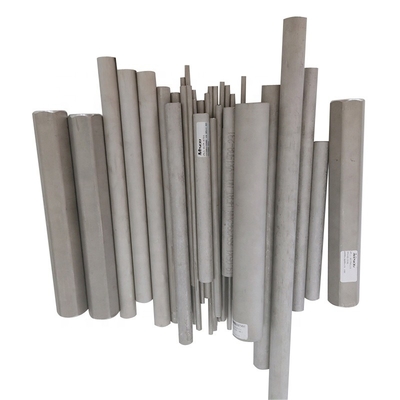

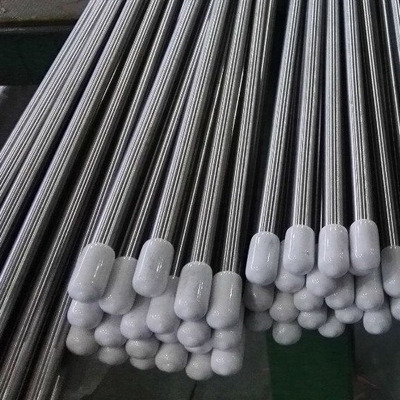

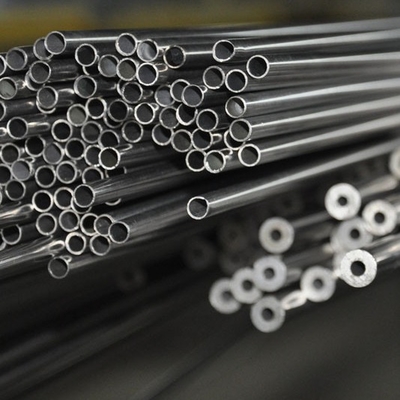

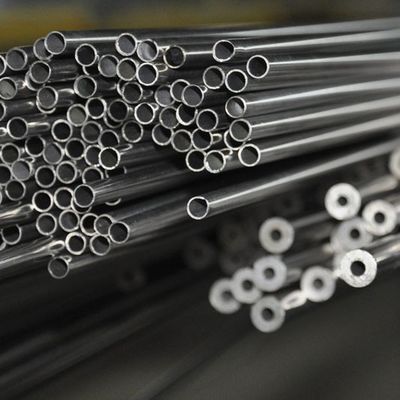

Product Photo
Application
a) For fluid & gas transport
b) Structure & machining etc
Product Process
Our Fcactory
Advantages
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc
Packing & Delivery
Packing Details:
Container information:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details :
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
