Hairline 25mm Stainless Steel Pipe For Boiler Water Heater SCH5S

Basic Information
Place of Origin: China
Brand Name: WUXI SYLAITH
Certification: SGS ISO ROHS
Model Number: 904l 202
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~15days
Payment Terms: T/T, L/C
Supply Ability: 1000 TONS PER MONTH
Detail Information
Outer Diameter: 254mm Or As Required Surface Finish:: 2B
Application: Boiler Water Heater Type: Seamless
Tolerance: ±1% Alloy Or Not: Non-Alloy
Length: 6000mm 5800mm 12000mm Or Customized Payment Terms: 30%TT Advance + 70% Balance
High Light:

Seamless Stainless Pipe For Boiler Water Heater

,

25mm Seamless Stainless Steel Pipe

,

Hairline Stainless Steel Pipe


Product Description



AISI JIS ASTM 904l 202 25mm Stainless Steel Pipe For Boiler Water Heater SCH5S,SCH10S



 What is a seamless tube?

It is a type of boiler tube and belongs to the category of seamless steel tubes.

The manufacturing method is the same as that of seamless steel pipes, but there are certain strict requirements on the steel grades used in the manufacture of steel pipes. Since seamless pipes are often in high temperature and high -pressure conditions when they are used, seamless pipes are mainly used to make superheater tubes, reheater tubes, steam guide tubes, and main steam seamless tubes for high pressure and ultra-high pressure boilers.

Product Name
seamless Stainless Steel pipe
Width
as customer's requirements
Thickness
SCH5S,SCH10S,SCH40S,STD,XS,XXS,SCH20,
SCH30,SH40,SCH60,SCH80,SCH160,XXS
Length
as customer's request
Surface
N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc
Material
201,202,301,302,303,304,304L,304N1,309S,
310S,316,316L,316Ti,316N,317,317L,321,409L,410,420,430,904,904L,etc
Grade
200/300/400/500/600/700/800/900 series/duplex stainless steel
Standards
AISI ASTM JIS SUS DIN GB
Certifications
ISO 9001
Packing
Industry standard packaging or according to client's requirement
Place of origin
Shandong China(mainland)
Payment
T/T,L/C,Western Union
Delivery time
Up to order quantity



Chemical Composition



Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -



Surface Treatment



Surface Definition Application
No.1 The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. Chemical tank, pipe etc.
No.3 Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. Kitchen utensils, Building construction etc.
No.4 Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. Kitchen utensils, Building construction, Medical equipment etc.
2B Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. Medical equipment, Food industry, Construction material, Kitchen utensils etc.
BA (No.6) Those processed with bright heat treatment after cold rolling. Kitchen utensils, Electric equipment, Building construction etc.
Mirror (No.8) Shinning like a mirror Building construction, decoration etc.
Hairline Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. Building Construction etc.



Product Photo

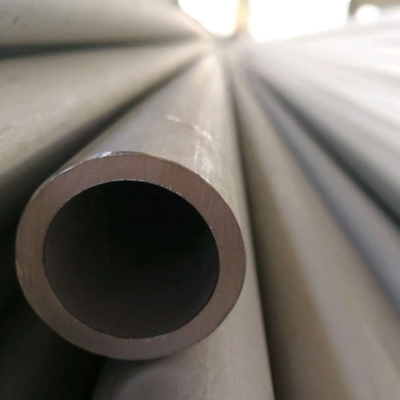

Hairline 25mm Stainless Steel Pipe For Boiler Water Heater SCH5S 0



Application

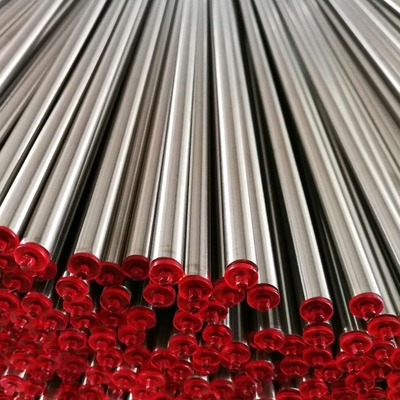

Hairline 25mm Stainless Steel Pipe For Boiler Water Heater SCH5S 1



Product Process

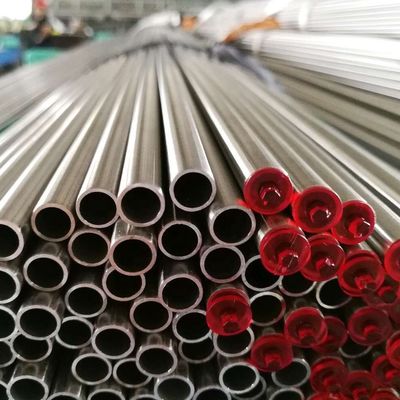

Hairline 25mm Stainless Steel Pipe For Boiler Water Heater SCH5S 2

Packing & Delivery

Packing Details:

- Packing in bundles
- Packing in wooden cases
- Bulk shipment, without packing
- Export standard package, or as customers request.


Container information:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details :

7-15 days, or according to the order quantity or upon negotiation.

Hairline 25mm Stainless Steel Pipe For Boiler Water Heater SCH5S 3



Our Factory



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 2



Certificates



Hot Rolled ASTM 4130 Seamless Round Steel Tubes Outer Diameter 17 - 1020mm 3
