ASTM A653M Galvanized Steel Tube Corrosion Resistant For Aerospace Industry
Product Details
| Grade: | JIS G3302, JIS G3312, EN10142, ASTM A653M, Etc | Surface Treatment: | Galvanized |
|---|---|---|---|
| Section Shape: | Round | Length: | 6000mm 5800mm 12000mm Or Customized |
| OD: | 10 - 1020 Mm Or Customized | Thickness: | 0.5 - 150 Mm Or Customized |
| Processing Service: | Welding, Punching, Cutting, Bending, Decoiling | Zinc Coating: | 30~600g /m2 |
| Highlight |
ASTM A653M Galvanized Steel Tube,6000mm Galvanized Steel Tube,Non oiled Galvanized Steel Tube Pipe |
||
Product Description
ASTM A653M Galvanized Steel Tube Corrosion Resistant for Aerospace Industry
Product Description
Galvanizing can increase the corrosion resistance of steel pipe and prolong its service life. Galvanized pipe USES is very wide, in addition to a general low pressure fluid such as water, gas, oil line pipe, also used as oil industry, especially the ocean oil field oil well pipe, oil pipe, chemical coking equipment of oil heater, the condensing, exchange of coal distillation wash oil cooler for tube, and trestle pile, mining tunnel supporting frame tube, etc.
|
item
|
ASTM A653M Galvanized Steel Tube Corrosion Resistant for Aerospace Industry
|
|
Section Shape
|
Round
|
|
Special Pipe
|
Thick Wall Pipe
|
|
Standard
|
JIS G3302,JIS G3312,EN10142,ASTM A653M;etc
|
|
Surface Treatment
|
Galvanized
|
|
Tolerance
|
±1%
|
|
Oiled or Non-oiled
|
Non-oiled
|
|
Invoicing
|
by actual weight
|
|
Delivery Time
|
Within 7 Days
|
|
Length
|
6000mm 5800mm 12000mm or customized
|
|
Outer Diameter
|
10 - 1020 mm or customized
|
|
Wall Thickness
|
0.5 - 150 mm or customized
|
|
Inspection
|
The Third Party Inspect
|
|
Payment Terms
|
30%TT Advance + 70% Balance
|
|
Usage
|
Fluid Pipe, Gas Pipe, OIL PIPE, Structure Pipe,etc
|
|
Package
|
Seaworthy Standard Package
|
|
PRICE TERM
|
CIF CFR FOB EX-WORK
|
Main Features:
Different color of zinc such as white, yellow, army-green, black is evenly distributed in the surface of the tube, good brightness and antirust and antisepsis could improve after zinc coated.
Length of the galvanized tubes:
in diameter <= 16 mm >=6000 + 100 mm
in diameter >= 16 mm <=24000 + 50 mm
Tolerances of the zinc coated tubes:
-tolerances of the outside diameter:
|
diameter between 4 - 30 mm |
±0,08 mm |
|
diameter between 35 - 38 mm |
±0,15 mm |
|
diameter above 42 mm |
±0,20 mm |
-tolerances of the inside diameter are according to EN 10305-4
-tolerance of the wall thickness ± 10%
Final supply conditions:
|
Designation |
Symbol |
Description |
|
Cold finished (hard) |
BK |
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
|
Cold finished (soft) |
BKW |
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding). |
|
Cold finished and stress-relieved |
BKS |
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
|
Annealed |
GBK |
The last cold forming process is followed by annealing in a controlled atmosphere. |
|
Normalized |
NBK |
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |

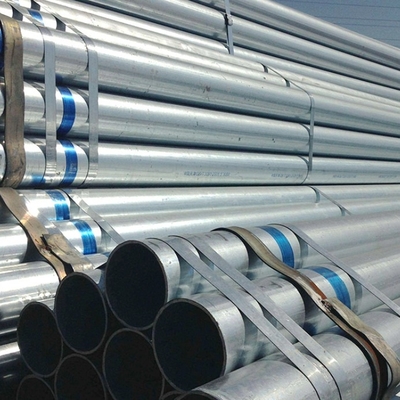

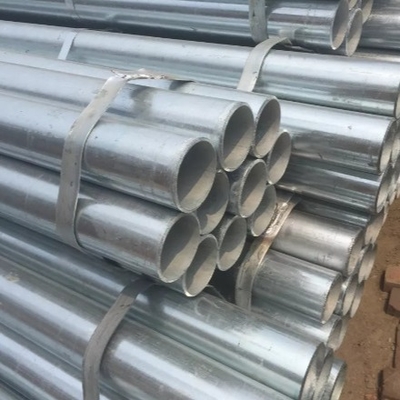

Product Show
Factroy Pictures
Pipe & Tube Processing
Application
Zinc coated precision steel tubes (galvanized tubes) are destined for hydraulic and pneumatic pressure distribution (so called HPL tubes),
production of automobile components, utility vehicles as well as for production of machine products such as fittings and joints.
Cold drawn precision tubes are used as the semi-finished product and they are made from rolled seamless tubes.
Precision tubes HPL types are made from carbon and alloyed steel.
Application areas:
Automotive, military, railway industry, with high requirement of the tubes brightness, cleanness, antirust, and antisepsis.
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time)
