| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | WUXI SYLAITH |
| Certification: | ISO |
| Model Number: | ASTM A106 |
| Minimum Order Quantity: | 1 MT |
| Price: | Negotiable |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 3~10 days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Application: | Machinery|Oil Cylinder Tube|Building|Construction | Delivery Condition: | Annealed|Normalized|Heat Treatment|BK|BKS|BKW|NBK|GBK|Tempered |
|---|---|---|---|
| Product Name: | Welded Steel Tube|Seamless Steel Tubes|Galvanized Steel Tube | Standard: | ASTM A179 |
| Surface Treatment: | Varnish|Galvanized | Technique: | Hot Rolled|Cold Rolled |
| Invoicing: | By Theoretical Weight | Sample: | Available |
| High Light: | Welded Seamless Galvanized Steel Tube,ASTM A106 Galvanized Steel Tube,1020 mm Galvanized Steel Tube |
||

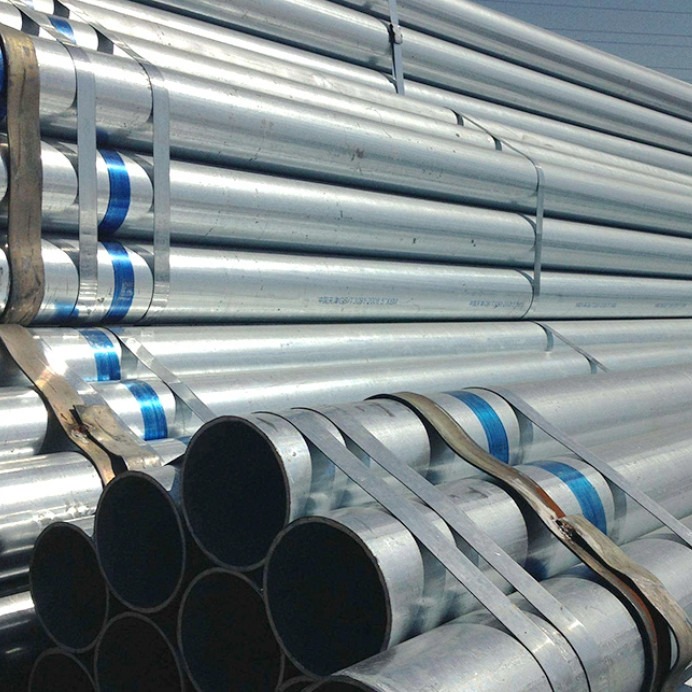

Superior ASTM A106 Galvanized Steel Tube For Oil And Gas Transportation
A106 is a material used for piping.
A106 pipeline pipe belongs to the American petroleum standard pipeline pipe, which is to pump out the ground oil, steam, water, through the pipeline pipeline to the oil and gas industry enterprises.
With the development of the pipeline steel plate technology and the progress of welded pipe forming, welding technology, the application range of the pipe with welded pipe is gradually expanding, especially in the large diameter welded pipe.
Description
|
Product Name
|
Galvanized Steel Pipe
|
|
Grade
|
Q195, Q235
|
|
SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570
|
|
|
SGHC SGH340 SGH400 SGH440 SGH490 SGH540
|
|
|
DX51D DX52D DX53D DX54D
|
|
|
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
|
|
|
Standard
|
ISO,JIS,ASTM,AS EN
|
|
Zinc coated
|
40-300g/m2,as Your Request
|
|
Fabrication
|
Plain ends, cutting, threading, etc.
|
|
Surface Treatment
|
Transparent oil,anti-rust oil, According to clients requirement
|
|
Thickness
|
1.2 ~ 12 mm,as Your Request
|
|
OD
|
20 - 508 mm,as Your Request
|
|
Tolerance
|
Thickness: ±0.01 mm
|
Factory test and other terms
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Delivery condition
|
Designation |
Symbol |
Description |
|
Cold finished (hard) |
BK |
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
|
Cold finished (soft) |
BKW |
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding). |
|
Cold finished and stress-relieved |
BKS |
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
|
Annealed |
GBK |
The last cold forming process is followed by annealing in a controlled atmosphere. |
|
Normalized |
NBK |
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
All other tubes applicable for boiler and heat exchanger tube we can produce
|
Chinese Standard |
Steel Grade/ No. |
American Standard |
Steel Grade/ No. |
|
GB5310 |
20G,15MoG,12CrMoG, |
ASTM A106 |
GR. A,B,C |
|
GB9948 |
10,20,12CrMo,15CMo |
ASTM A53 |
GR.A,B |
|
GB3087 |
10,20 |
ASTM A192 |
|
|
|
|
ASTM A179 |
|
|
|
|
ASTM A210 |
A-1,C |
|
|
|
ASTM A333 |
GR.1,GR3,GR6 |
|
|
|
ASTM A334 |
GR.1,GR3,GR6 |
|
|
|
ASTM A209 |
T1, Ta, Tb |
|
German standard |
Steel Grade/ No. |
Japanese standard |
Steel Grade/ No. |
|
DIN17175 |
ST35.8, ST45.8 |
JIS G3454 |
STPG370,STPG410 |
|
DIN1629 |
ST37.0, ST44.0, ST52.0 |
JIS G3461 |
STB340, STB410, STB440 |
|
British Standard |
Steel Grade/ No. |
European standard |
Steel Grade/ No. |
|
BS3059-Ⅰ |
320 |
EN10216-1 |
P195TR1/TR2,P235TR1/TR2, |
|
BS3059-ⅡS1/S2; TC1/TC2 |
360,440, |
EN10216-2 |
195GH,P235GH, |
Applications
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Product Photo
Pipe & Tube Processing
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
