| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | WUXI SYLAITH |
| Certification: | ISO |
| Model Number: | ASTM A106 |
| Minimum Order Quantity: | 1 MT |
| Price: | Negotiable |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 3~10 days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Application: | Machinery|Oil Cylinder Tube|Building|Construction | Delivery Condition: | Annealed|Normalized|Heat Treatment|BK|BKS|BKW|NBK|GBK|Tempered |
|---|---|---|---|
| Outer Diameter: | 20MM~508MM | Tolerance: | ±0.01mm |
| Surface Treatment: | Varnish/Galvanized | Technique: | Hot Rolled|Cold Rolled |
| Invoicing: | By Theoretical Weight | Packing: | Standard Export Seaworthy Package Suit For All Kinds Of Transport,or As Required |
| High Light: | Hot Rolled Galvanized Steel Pipe,100mm Galvanized Steel Pipe,Gi A53 Galvanized Steel Pipe |
||

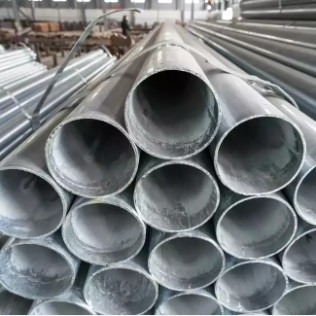

ASTM 100mm Length 6m Gi A53 Hot Rolled Galvanized Steel Pipe High Density For Construction Industry
A106 is a material used for piping.
A106 pipeline pipe belongs to the American petroleum standard pipeline pipe, which is to pump out the ground oil, steam, water, through the pipeline pipeline to the oil and gas industry enterprises.
With the development of the pipeline steel plate technology and the progress of welded pipe forming, welding technology, the application range of the pipe with welded pipe is gradually expanding, especially in the large diameter welded pipe.
Description
|
Product Name
|
Galvanized Steel Pipe
|
|
Standard
|
BS, ASTM, DIN, GB, BS 1387, BS EN10025, ASTM A106-2006, ASTM A213-2001, ASTM A312-2001, DIN 1626, DIN 1629/3, SEW680, GB 5310-1995
Grade:10MoWVNb, STPA25, 15Mo3, 10Cr9Mo1VNb, STBA25, 15MnV, 10MoWVNb, STPA22-STPA26, MO, 10Cr9Mo1VNb, STBA20-STBA26, Mn-V alloy |
|
Grade
|
SGCC,CGCC,SGCH,DX51D+Z/DX53D+Z/S220GD-550GD/Q195-Q345,etc
|
|
Model Number
|
DX51D+AZ, SGCC, HDGI, DC51D+AZ,etc
|
|
Technique
|
Hot Dip/Cold rolled/Hot rolled
|
|
Type
|
Welded/Seamless
|
|
Section Shape
|
Round/square/rectangular
|
|
Surface Treatment
|
Galvanized, Clean,Coated or as required
|
|
Outer Diameter
|
19-660mm/custom
|
|
Length
|
1-12m/custom
|
|
Thickness
|
1-12mm/custom
|
|
Processing Service
|
Bending, Welding, Decoiling, Punching, Cutting
|
|
Delivery Time
|
within 7 days,According to the quantity ordered by the customer
|
|
Application
|
Fence, greenhouse, door pipe,greenhouse.Low pressure liquid, water, gas, oil, line pipe
|
Factory test and other terms
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Delivery condition
|
Designation |
Symbol |
Description |
|
Cold finished (hard) |
BK |
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
|
Cold finished (soft) |
BKW |
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding). |
|
Cold finished and stress-relieved |
BKS |
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
|
Annealed |
GBK |
The last cold forming process is followed by annealing in a controlled atmosphere. |
|
Normalized |
NBK |
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
All other tubes applicable for boiler and heat exchanger tube we can produce
|
Chinese Standard |
Steel Grade/ No. |
American Standard |
Steel Grade/ No. |
|
GB5310 |
20G,15MoG,12CrMoG, |
ASTM A106 |
GR. A,B,C |
|
GB9948 |
10,20,12CrMo,15CMo |
ASTM A53 |
GR.A,B |
|
GB3087 |
10,20 |
ASTM A192 |
|
|
|
|
ASTM A179 |
|
|
|
|
ASTM A210 |
A-1,C |
|
|
|
ASTM A333 |
GR.1,GR3,GR6 |
|
|
|
ASTM A334 |
GR.1,GR3,GR6 |
|
|
|
ASTM A209 |
T1, Ta, Tb |
|
German standard |
Steel Grade/ No. |
Japanese standard |
Steel Grade/ No. |
|
DIN17175 |
ST35.8, ST45.8 |
JIS G3454 |
STPG370,STPG410 |
|
DIN1629 |
ST37.0, ST44.0, ST52.0 |
JIS G3461 |
STB340, STB410, STB440 |
|
British Standard |
Steel Grade/ No. |
European standard |
Steel Grade/ No. |
|
BS3059-Ⅰ |
320 |
EN10216-1 |
P195TR1/TR2,P235TR1/TR2, |
|
BS3059-ⅡS1/S2; TC1/TC2 |
360,440, |
EN10216-2 |
195GH,P235GH, |
What is Galvanised steel tube?
Our Cut To Size Galvanised Mild Steel Tube is a strong, durable and specially treated metal tubing material
for many outdoor applications. Our galvanised mild steel tube is available cut to size to suit your unique
project requirements and can be used alongside our tube clamp range to create frames and fencing.
Product Photo
Pipe & Tube Processing
Application
Packaging & Shippping
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
