| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | JIANGSU HUACHENG |
| Certification: | ISO9001 14001 BV TUV PED DNV etc |
| Model Number: | HC |
| Minimum Order Quantity: | 5MT |
| Packaging Details: | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time: | 25~35days |
| Payment Terms: | 30%T/T in advance or 100% L/C at sight |
| Supply Ability: | 8000MT/Month |
| Standard: | DIN2391,En 10305-1, JIS G3445, ASTM A519 | Application: | Machinery|Oil Cylinder Tube|Building|Construction |
|---|---|---|---|
| Certificate: | PED|ISO|BV|TUV | Delivery Condition: | Annealed|Normalized|Heat Treatment|BK|BKS|BKW|NBK|GBK|Tempered |
| Material: | Carbon Steel|Alloy Steel | Product Name: | Cold Drawn Seamless Tube|Seamless Steel Tubes|Galvanized Steel Tube |
| Section Shape: | Round | HS Code: | 7304319000 |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting | Technique: | Seamless|Cold Drawn|ERW |

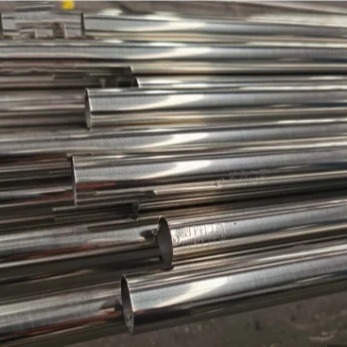

SS304 50mm Cold Drawn Precision 2.5 Inch Stainless Seamless Hydraulic Steel Pipe Boiler Oil Pipe
Cold-drawn precision seamless steel tubes are precision cold-drawn seamless tubes with high dimensional accuracy and good surface finish used in mechanical structures and hydraulic equipment. The selection of precision seamless tube manufacturing mechanical structures or hydraulic equipment, etc., can greatly save machining hours, improve material utilization, while helping to improve product quality.
Description:
Product name: Heat Exchanger Tubes / Cold Drawn / ERW
Standard executived: ASTM / DIN / EN / GOST / SAE / JIS etc
(ASTM A179,ASTM A199, ASTM A200, ASTM A213, DIN 17175,JIS G3462,JIS G3458 )
Outside diameter:12.7mm
Wall Thickness:1.24mm
Length:6m-25m,also can be manufactured according to customers' requirements
Type:Cold Drawn or ERW
Ends:Plain ends or bevel ends
Delivery Conditions: BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. AS per Standard.
Coating for protection:black painting,anti-rust oiled or varnish,also can be required according to customers' requirements
Factory test and other terms:
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
5.Sampling:flattening,flaring,grain size,Marking
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
service.
Main Specification Details:
| Production Range | Outer Diameter:10-120mm (0.4 inch - 4.7 inch) |
| Wall Thickness:1-20mm (0.04 inch - 0.78 inch) | |
| Material / Grade |
Carbon Steel: GB/T 8162 & 8163 & 3639: 10#, 20#, 35#, 45#, 55#, Q235B, Q235C, CF53, A105 ASTM A519: 1010, 1020, 1026, 1035, 1045, 1050 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: C10/CK10, C22/CK22, C35/CK35, C45/CK45, CF53 JIS3441/JIS3444/JIS3445: STKM11A, STKM12A/STKM12B/STKM12C, STKM13A/STKM13B/STKM13C JIS G4051: S10C, S20C, S25C, S35C, S45C, S55C |
|
Alloy Steel: GB/T 8162 & 8163 & 3639: 16Mn(Q345B), 20Cr, 40Cr, 15CrMo, 20CrMo, 28CrMo, 30CrMo, 35CrMo, 42CrMo, 20CrMnTi, 40MnMoV, 20Mn2, ZF6, 16MnCr5, 20MnCr5, 38Mn2V, 09CrCuSb(ND) ASTM A519: 5120, 5140, 4130, 4135, 4140 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: ST52, EN10084-1998 20Cr4, 41Cr4, 15CrMo4, 25CrMo4, 35CrMo4, 42CrMo4, 16MnCr5 JIS3441/JIS3444/JIS3445: SCM432/SCRRM3, SCM4 JIS G4053: JIS SCr420, JIS SCr440, SCM415, SCM420 |
|
| Tolerance | Tolerance ±0.15mm,Superior products ±0.05mm, Can be customized according to customer's requirements |
| Technique | Cold Drawn / Cold Rolled |
| Shape | Round |
| Further Processing for Steel Tubes | Final Annealing, Cutting, Chamfer, Threading, Inner diameter or Outer Diameter Lathe, Surface Shot Blasting, Laser Marking |
Delivery condition:
|
Designation |
Symbol |
Description |
|
Cold finished (hard) |
BK |
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation. |
|
Cold finished (soft) |
BKW |
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding). |
|
Cold finished and stress-relieved |
BKS |
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree. |
|
Annealed |
GBK |
The last cold forming process is followed by annealing in a controlled atmosphere. |
|
Normalized |
NBK |
The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere. |
Applications:
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
All other tubes applicable for boiler and heat exchanger tube we can produce ,
|
Chinese Standard |
Steel Grade/ No. |
American Standard |
Steel Grade/ No. |
|
GB5310 |
20G,15MoG,12CrMoG, 12Cr2MoG,15CrMoG, 12Cr1MoVG, |
ASTM A106 |
GR. A,B,C |
|
GB9948 |
10,20,12CrMo,15CMo |
ASTM A53 |
GR.A,B |
|
GB3087 |
10,20 |
ASTM A192 |
|
|
|
|
ASTM A179 |
|
|
|
|
ASTM A210 |
A-1,C |
|
|
|
ASTM A333 |
GR.1,GR3,GR6 |
|
|
|
ASTM A334 |
GR.1,GR3,GR6 |
|
|
|
ASTM A209 |
T1, Ta, Tb |
|
German standard |
Steel Grade/ No. |
Japanese standard |
Steel Grade/ No. |
|
DIN17175 |
ST35.8, ST45.8 |
JIS G3454 |
STPG370,STPG410 |
|
DIN1629 |
ST37.0, ST44.0, ST52.0 |
JIS G3461 |
STB340, STB410, STB440 |
|
British Standard |
Steel Grade/ No. |
European standard |
Steel Grade/ No. |
|
BS3059-Ⅰ |
320 |
EN10216-1 |
P195TR1/TR2,P235TR1/TR2, |
|
BS3059-ⅡS1/S2; TC1/TC2 |
360,440, |
EN10216-2 |
195GH,P235GH, |
Competitive Advantage:
Huacheng Industry Pipe Making Corporation
Asia Leading Steel Pipe & Tube Manufacturer with more than 250,000Tons/Year, >60% shipped to more than 35 Countries.We aims at manufacturing quality pipes & tubes with reasonable and competitive price, good quality for our global customers.
Factroy Pictures:
Pipe & Tube Processing
Factory Equipments:
