20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: Wuxi Sylaith
Certification: SGS ISO ROHS
Model Number: ASTM A178 SCH10 SCH30
Minimum Order Quantity: 1MT
Price: Negotiable
Packaging Details: standard waterproof package
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T
Supply Ability: 8000MT/Month
Detail Information
Application: Boiler|Chemical|Fluid Pipe Delivery Condition: Annealed|BK|BKS|Normalized|Tempered|Heat Treatment|BKW|NBK|GBK
Ends Type: Bevel Ends|Plain Ends Type: Seamless Steel Pipe
Product Name: Seamless Carbon Steel Tube Section Shape: Round
Standard: ASTM A178|ASME SA178 Invoicing: By Theoretical Weight
Technique: Weld
High Light:

Seamless Carbon Steel Tube Piping

,

20mm SCH60 Seamless Carbon Steel Tube

,

A355 Seamless Carbon Steel Tube


Product Description

20mm SCH60 ASTM A355 4041 A106 Gr.B Seamless Carbon Steel Piping For Bridge Ship





Product Description:



Carbon steel pipes are divided into two categories: hot-rolled and cold-rolled (drawn) steel pipes.
Hot-rolled carbon steel pipe is divided into general steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, geological steel pipe and other steel pipe.
Cold rolled (dial) carbon steel pipe in addition to the general steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, other steel pipe, also includes carbon thin-walled steel pipe, alloy thin-walled steel pipe, stainless thin-walled steel pipe, shaped steel pipe. Hot-rolled seamless tube outer diameter is generally greater than 32mm, wall thickness 2.5-75mm, cold-rolled seamless steel tube outer diameter can be up to 6mm, wall thickness can be up to 0.25mm, thin-walled tube outer diameter can be up to 5mm, wall thickness less than 0.25mm, cold-rolled than hot-rolled size accuracy.





Commodity
Seamless Carbon Steel Pipe
Outer Diameter
13.7mm~610mm
Thickness
2.24~30.96mm / SCH30/SCH40/SCH80/SCH160/XS/XXS
Length
Normal 5.8m, 6m, random length OEM
Tolerance
OD:+/-0.5mm

WT: +/-3%~6% (Standard) or as per customers’ request

Length: +/-20mm
Straightness
As Per Standard
Material
#20,Q355,#40,#45, Gr.B, GR.C, GR.D ,X-52,X-65(PSL1,PSL2)
Standard
API 5L, ASME B36.10M-1996,ASTM A106,ASTM A53,ISO65, GB/T8163-2018,
GB/T8162-2018,GB5310-2009,GB6479-2013,GB9948-2013,GB3087-2008,GB/T-2008, GB/T17396-2009
Certificate
ISO 9001,IS014001,ISO45001,ISO50001,API 5L,LR,ICC,SGS.BV etc
Surface Treatment
Zinc coating ,Oiled,Black Painting, Marking,
Pipe End
Plain end / Beveling end / Screwed and socked & protected by plastic caps
Products Advantage
We select billet in good quality through mechanics, physics and chemistry experiments by our own laboratory.

welding, bending, and other deep processing are allowed

Usage is very wide , building structure for airport ,bridge, Gym,vessel,fluid transport
Deep Processing Services
Threaded,sockets,flanged,end cap,painting, oiled, punching,woven bag ect.
Packing
In Bundles, Water Proof Plastic Packing ,in Bulk etc

In hexagonal seaworthy bundles packed by steel strips.
Applications
Structure pipe,boiler pipe,Special fertilizer pipe,Petroleum cracking pipe,CS Pipe,Fluid pipe,Hydraulic support pipe ect.
Technical
Cold-Drawing,Cold Rolled, Hot Rolled
Loading Port
Xin’Gang, China
Trade Term
ERW,FOB, CFR, CIF, FCA, CPT, CIP
MOQ
5 tons for each size
Shipment
20 feet container , the max length 5.85m without coupling, 5.8m with coupling

40 feet container , the max length 12.0m or 6.0m in two rows.

Bulk carrier no limits on pipe length.
Payment Term
T/T, LC, Or as discussion
Delivery Time
10-30 days (based on size & quantity) after receiving down payment by T/T or LC .If customers inquiry pipes in stock, delivery time in 5days





Pipe Diameter:



SIZE TOLERANCE





NAME





Scope (mm)





GB Series (mm)





DIN series (mm)

Enterprise internal control standards (mm)



Special high-precision (mm)



Out diameter



2-30 ±0.10 ±0.08 ±0.05 ±0.03
31-40 ±0.15 ±0.15 ±0.05 ±0.03
41-50 ±0.20 ±0.20 ±0.08 ±0.03
51-60 ±0.25 ±0.25 ±0.08 ±0.03
Wall thickness 0.3-10 ±10%; MIN±0.15 ±10% ±10%; MIN±0.05 ±10%; MIN±0.03





Mechanical Properties:



ensileRequirements



GradeC

GradeD

Tensilestrength,min,ksi[MPa]

Yieldstrength,min,ksi[MPa]

Elongationin2in.or50mm,min,%

For longitudinal strip tests a deduction for

Each1⁄32-in[0.8mm]decreaseinwallthicknessbelow5⁄16in.[8mm]

From the basic minimum elongation of the following percentage points shall be made

60[415]

37[255]

30

1.50A

70[485]

40[275]

30

1.50A

Grade A

Tensilestrength,min,ksi[MPa]

Yieldstrength,min,ksi[MPa]

Elongationin2in.or50mm,min,%

47[325]

26[180]

35





Factory test and other terms:



1. Hydrostatic or Nondestructive Electric Test

2. Heat Treatment: according to Standard
3. Surface Condition:According to Standard.
4. Grain Size:According to standard
5. Sampling:flattening,flaring,grain size,Marking

6. we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing

service.





Detailed Photo:

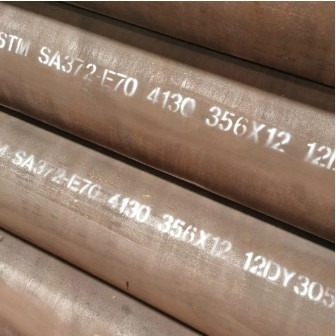

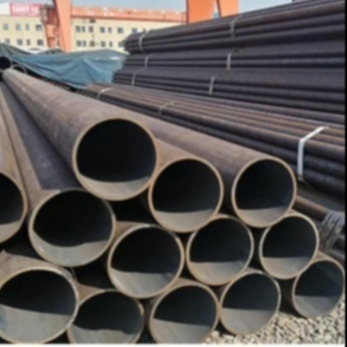

20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 0

20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 1

20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 2





Application:





20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 3



Factroy Pictures:



20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 4





Pipe & Tube Processing:





20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 5





Packaging & Shipping:





20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 6

20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 7





Certificates:



20mm SCH60 Seamless Carbon Steel Tube Piping ASTM A355 4041 A106 Gr.B For Bridge Ship 8





FAQ:


Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
