Heat Resisting Seamless Stainless Steel Tube OD2.5Inch 0.240Inch For Boiler Superheater
Product Details
| Application: | Heat Exchanger,Condenser | Outer Diameter: | 20mm~500,mm |
|---|---|---|---|
| MOQ: | 2 TONS | Processing Service: | Bending, Welding, Decoiling, Punching, Cutting, Mo |
| Tolerance: | ±0.5% | Uses: | Construction Engineering, Shipbuilding |
| Highlight |
Heat Resisting Seamless Stainless Steel Tube,OD2.5Inch Stainless Steel Tube,Stainless Steel pipe Tube 20mm |
||
Product Description
SA-213-TP310H T11 Heat-resisting Seamless Stainless Steel Tube OD2.5Inch Thickness 0.240Inch For Boiler Superheater
SA213 high pressure boiler tube series is a series of high pressure boiler tubes.
SA213 High Pressure Boiler Tube Executive Standard: ASTM A213---American Society for Testing and Materials Standard, ASME SA213---American Society of Mechanical Engineers Standard
SA213 High Pressure Boiler Tube Application: Suitable for seamless ferritic and austenitic steel tubes with minimum wall thickness for boilers and superheaters and austenitic steel tubes for heat exchangers.
SA213 high pressure boiler tube grade: A213T11, A213T12, A213T22, etc.
| Boiler Pipe Standard |
Grade
|
C
|
Si
|
Mn
|
P,S
|
Cr
|
Mo
|
V
|
Cu
|
Ni
|
|
ASTM A213ASME SA213
|
T11
|
0.05~0.15
|
0.50~1.00
|
0.30~0.60
|
≤0.025
|
1.00~1.50
|
0.44~0.65
|
/
|
/
|
/
|
|
T12
|
0.05~0.15
|
≤0.50
|
0.30~0.61
|
≤0.025
|
0.80~1.25
|
0.44~0.65
|
/
|
/
|
/
|
|
|
T22
|
0.05~0.15
|
≤0.50
|
0.30~0.60
|
≤0.025
|
1.90~2.60
|
0.87~1.13
|
/
|
/
|
/
|
|
Product name
|
SA-213-TP310H T11 Heat-resisting Seamless Stainless Steel Tube OD2.5Inch Thickness 0.240Inch For Boiler Superheater | |||
|
Specification
|
Round
|
OD: 5mm~500mm
|
||
|
WT: 0.2mm~50mm
|
||||
|
Square
|
OD: 4mm*4mm*~2000mm*2000mm
|
|||
|
WT: 0.5mm~100mm
|
||||
|
Rectangular
|
OD: 2mm*4mm~1500mm*2000mm
|
|||
|
WT: 0.3mm~120mm
|
||||
|
Length
|
2m,3m,5m, 5.8m,6m,11.8m,12m,or as required
|
|||
|
Standard
|
ASTM B338, ASME SB338, ASTM B861, DIN 17861, DIN17869, EN10204 etc.
|
|||
|
Processing
|
Seamless titanium tube: Titanium sponge-Compacting electrodes-melting-Forge-Bar billets-Extruding-Rolled-Straightening-Seamless tube
Welded titanium tube: Titanium sponge-Compacting electrodes-melting-Forge-Plate billets-Hot rolled-Cold rolled-Titanium scrap-Welded-Welded tube |
|||
|
Payment term
|
T/T, L/C, Western Union, Cash, PayPal, etc
|
|||
|
Applications
|
Petrochemical, Heat Exchanger, Condenser, Medical, Chemical, Aerospace, Subsea, Oil, Sports, Bike and other Industries etc.
|
|||
|
Material
|
ASTM:
Pure Ti: Gr.1 Gr.2 Gr.3 Gr.4 Ti
Alloy: Gr.5 Gr.7 Gr.9 Gr.11
JIS:
Pur Ti: Class 1 Class 2 Class 3 Class 4;
Ti Alloy: Class 60 Class 12 Class 61 Class 11 Class 60 E
GOST:
BT1-00,BT1-0,BT1-2
GB:
Pure Ti:TA1 TA2 TA3 TA4;
Ti Alloy: TC4 TA9 TC2 TC4 ELI
|
|||

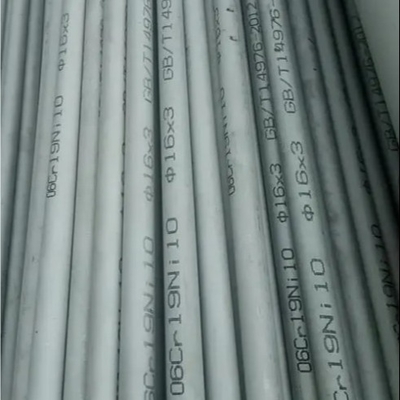

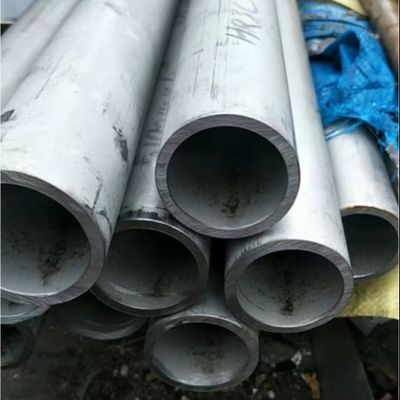

Product Photo
Packing & Shipping
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time)
