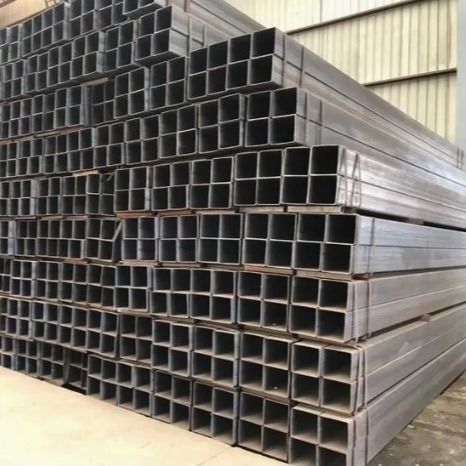

S235jr S275jr 355jr Black Mild Steel Rectangular Steel Pipe For Building
Product Details
| Alloy Or Not: | Non-Alloy | Usage: | Fluid Transportation |
|---|---|---|---|
| Special Pipe: | Thick Wall Pipe | Ends: | Plain/Beveled/Threaded |
| Technique: | ERW/HFW/Hot Rolled/Cold Rolled | Transport Package: | By Bundle, Water Proof Wrapped |
| Surface Treatment: | Bared / Black Varnish/Galvanized | Application: | Construction/ Structure/ Decoration |
| Highlight |
S235jr Rectangular Steel Tube,Building Rectangular Steel Tube,S275jr rectangular metal tubing |
||
Product Description
Product Description:
A rectangular tube is a hollow strip of steel, also known as a flat tube, flat square tube or square flat tube (as the name suggests). At the same time of bending and torsional strength, the weight is light, so it is widely used in the manufacture of mechanical parts and engineering structures. Rectangular pipe is a hollow square cross-section of light thin-wall steel pipe, also known as steel cooling curved profile. It is made of Q235 hot rolled or cold rolled strip or coil as the base material by cold bending processing and then high frequency welding made of square section shape and size of the section steel. In addition to the thickening of the wall, the corner size and the flatness of the edge of the hot rolled special thick wall square pipe reach or even exceed the level of the resistance welding cold formed square pipe.
Features:
- Product Name: Rectangular Steel Tube
- Zinc Coated: 30-275g
- Application: Construction/ Structure/ Decoration
- Technique: ERW/HFW/Hot Rolled/Cold Rolled
- Usage: Fluid Transportation
- Alloy Or Not: Non-Alloy
- Shape: Square/Rectangular Tubing
Technical Parameters:
| Size | 20*20mm~800*800mm; 20*40~800*1000mm |
| Wall Thickness | 0.5~50mm |
| Length | 3~12M |
| Standard | ASTM A500, EN10219, EN10210, JIS3466, AS1163, GB/T6728 |
| Material | Gr.A, Gr.B, Gr.C, S195, S235, S355, STK400/SS400, C250/C350/C460 Q195, Q235, Q345 |
| Certificate | CE,ISO 9001:2008,SGS, BV, CCIC etc |
| Finish of pipe | Pre-galvanized with zinc 30-40g/m2; Hot dipped galvanized with zinc 220~260g/m2; Painted with black/varnish lacquer; Oil on the surface to prevent rust; Bare pipe without painting; |
| Pipe End | Plain end |
| Marking | As per client requirement or mill standard |
| Packing | 1. Packed by bundles and fastened by steel strips. 2. small sizes nested into big sizes. |
| Techinical | Cold formed or hot rolled |
| Trade Term | FOB, CFR, CIF, EXW, FCA |
| Payment Term | T/T, LC |
| Delivery Time | 15-45 days (based on quantity) after receiving advanced payment by T/T or LC . |
| Main Market | Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania |
Customization:
- Brand Name: Syliath
- Model Number: S235jr S275jr 355jr
- Place of Origin: Wuxi China
- Usage: Fluid Transportation
- Quality: First Grade
- Special Pipe: Thick Wall Pipe
- Pipe Type: API Pipe
- Features: Thick Wall Thin Wall
- Hot Rolled Steel Tube
- Square/Rectangular Tubing
- Seamless Rectangular Tubing
Support and Services:
We offer a wide range of technical support and service for our rectangular steel tube products, including:
- Installation assistance
- Troubleshooting tips and guidance
- Product specifications and dimensions
- Technical advice and support
- Product warranty information
If you have any questions or need assistance with your rectangular steel tube product, please contact us directly.
Packing and Shipping:
Packaging and Shipping of Rectangular Steel Tube
Rectangular steel tubes are typically packaged in bundles or individual units and are shipped in wooden cases or steel crates. Depending on the size and weight of the tubes, they can also be shipped in large wooden pallets. The tubes are usually wrapped in protective packaging such as bubble wrap or foam padding to prevent damage during transit.
Tracking information is typically provided to customers upon shipment of the tubes.
FAQ:
- Q: What is the Brand Name of the Rectangular Steel Tube?
- A: The Brand Name of the Rectangular Steel Tube is Syliath.
- Q: What is the Model Number of the Rectangular Steel Tube?
- A: The Model Number of the Rectangular Steel Tube is ASTM A29 Q235 Q345 Q255 AISI 1020.
- Q: Where is the Rectangular Steel Tube made?
- A: The Rectangular Steel Tube is made in Wuxi, China.
- Q: What material is the Rectangular Steel Tube made of?
- A: The Rectangular Steel Tube is made of ASTM A29 Q235 Q345 Q255 AISI 1020.
- Q: What kind of product is the Rectangular Steel Tube?
- A: The Rectangular Steel Tube is a kind of steel tube.
