E355 ST52 Seamless Cold Rolled Honing H8 Tolerance Hydraulic Cylinder Pipe For Piston Tube
Product Details
| Application: | Hydraulic Pipe, OIL PIPE, Structure Pipe | Processing Service: | Punching, Bending, Decoiling |
|---|---|---|---|
| Transport Package: | Customized Or Regular Shipping According To Custom | Production Capacity: | 300 Ton Per Month |
| HS Code: | 7304399000 | Technique: | Cold Drawn |
| Product Name: | Seamless Precision Steel Tube/Pipe | ||
| Highlight |
H8 tolerance hydraulic cylinder pipe,cold rolled seamless piston tube,ST52 honing hydraulic pipe |
||
Product Description
E355 ST52 Seamless Cold Rolled Honing H8 Tolerance Hydraulic Cylinder Pipe For Piston Tube
Honing tube is a high-precision seamless steel tube, which is processed by grinding and rolling. It has the advantages of no oxide layer on the inner surface, no leakage under high pressure, high precision, high finish, cold bending, and no deformation when expanding. It is flat and crack-free. It is widely used in hydraulic cylinder systems, automotive parts, boiler equipment and mechanical performance industries.
Product Detail
| Table 1- Chemical composition | ||||||
| Steel Grade | C% | Si% | Mn% | P% | S% | AL% |
| E215 | ≤0.10 | ≤0.05 | ≤0.7 | ≤0.025 | ≤0.025 | ≥0.025 |
| E235 | ≤0.17 | ≤0.35 | 0.4-1.2 | ≤0.025 | ≤0.025 | |
| E255 | ≤0.21 | ≤0.35 | 0.4-1.1 | ≤0.025 | ≤0.025 | |
| E355 | ≤0.22 | ≤0.55 | ≤1.6 | ≤0.025 | ≤0.025 | |
| Item | Honed Tube (steel pipe) |
| Raw material | DIN ST52, SAE1020,ST52 |
| Pressure & Temperature Classification | High pressure & temperature piping |
| Inner Diameter | 40mm-320mm |
| Outer Diameter | 50-400mm |
| Thickness | 5-40mm |
| Length | 7000mm |
| Straightness | Max 0.5/1000mm |
| Inside Surface Roughness (Ra) | 0.2-0.4um |
| Tolerance INT | DIN2391 H8 |
Popular standard and steel grade:
| EN10305-1 | E355 E235 E410 E470 C45E |
| DIN2391-1 | ST52 ST45 ST52.3 |
| ASTM A519 | SAE1020 SAE1045 SAE1026 |
| GB/T | 20# 45# 16Mn Q345B Q345D Q345E 42CrMo 27SiMn |
Chemical Properties:
| Material | C% | Mn% | Si% | S% | P% |
| 20# | 0.17-0.23 | 0.35-0.65 | 0.17-0.37 | ≤0.035 | ≤0.035 |
| ST45 | ≤0.21 | ≥0.4 | ≤0.35 | ≤0.025 | ≤0.025 |
| E255 | ≤0.21 | 0.4-1.1 | ≤0.35 | ≤0.025 | ≤0.025 |
| 45# | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 |
| Q345B | ≤0.20 | ≤1.70 | ≤0.50 | ≤0.035 | ≤0.035 |
| E355 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.025 | ≤0.025 |
| ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 |
| 25Mn | 0.22-0.29 | 0.70-1.0 | 0.17-0.37 | ≤0.035 | ≤0.035 |
| 27SiMn | 0.24-0.32 | 1.10-1.40 | 1.10-1.40 | ≤0.035 | ≤0.035 |
|
Processing method
|
ID
|
Length
|
Straightness
|
Tolerance for ID
|
Tolerance for thickness
|
ID Roughness
|
|
Cold drawn
|
40-320
|
≤12m
|
0.2-0.5
|
H8-H10
|
±5%
|
0.8-1.6
|
|
Cold drawn-Honing
|
40-500
|
8m
|
0.2-0.3
|
H8-H9
|
±5%
|
0.2-0.8
|
|
Cold drawn-Rolling
|
40-400
|
7m
|
0.2-0.3
|
H8-H9
|
±5%
|
0.2-0.4
|
|
Deep Hole Boring-Honing
|
320-1200
|
8m
|
0.2-0.3
|
H8-H9
|
±8%
|
0.2-0.8
|
|
Deep Hole Boring-Rolling
|
320-1200
|
7m
|
0.2-0.3
|
H8-H9
|
±8%
|
0.2-0.4
|

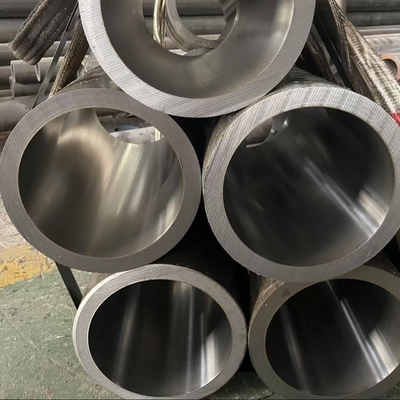

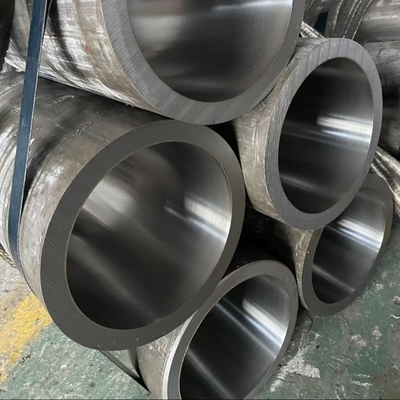

Product Photo
Appliction
Packing & Delivery
Our Factory
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010.
We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
