Brand Name: | WUXI SYLAITH |
Model Number: | Lconel 625 |
MOQ: | 0.1 MT |
Price: | Negotiable |
Payment Terms: | T/T, L/C |
Supply Ability: | 200MT/Month |
Lconel 625 Corrosion Resistance Seamless Stainless Steel Tube For Marine Engineering
Nickel-based alloy tubes are made of high-performance alloys that consist of nickel (Ni) as the main component (with a content typically exceeding 50%), along with other elements such as chromium (Cr), molybdenum (Mo), iron (Fe), niobium (Nb), and cobalt (Co). They are pipe materials.
It is not a single material but a family of materials. By adjusting its alloy composition, excellent performance for specific extreme environments can be achieved. In simple terms, when stainless steel (such as 304, 316, etc.) cannot meet the requirements, nickel-based alloys are the solution.
Seamless Pipes & Tubes Size | 1 / 8" NB - 24" NB |
Specifications | ASTM B516 |
Grade | 600 601 625 B2 B3 C22 C276 etc. |
Techniques | Hot-rolled, cold-drawn |
Length | 5.8M,6M & Required Length |
Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB |
Thickness | 0.3mm - 50 mm |
Schedule | SCH40,SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Types | Seamless Pipes |
Form | Round, Square, Rectangle, Hydraulic, Honed Tubes |
End | Plain End, Beveled End, Treaded |
Mill Test Certificate | EN 10204 3.1 or EN 10204 3.2 |
Chemical Composition
Chemical Analysis of ALLOY 625 | ||||||||||||||||||||
C | MN | P | S | Si | Cr | Ni | Mo | Cu | Co | Cb+Ta | Ti | Al | Fe | Nb | Other | |||||
. 10 | . 50 max | . 015 max | . 015 max | . 50 max | 20.0 -23.0 | 58.0 min | 8.0 - 10.0 | 1.0 max | 0.40 max | 0.40 max | 5.0 max | 3.15 - 4.15 | ||||||||
Specifications for Inconel 625 | ||||||||||||||||||||
Sheet/Plate | Round Bar/Wire | Pipe | Tube | Fittings | Forgings | |||||||||||||||
ASME SB-443 AMS 5599 AMS 5869 |
ASME SB-446 AMS 5666 AMS 5837 |
ASME SB-444 ASME SB-829 ASME SB-775 ASME SB-751 |
ASME SB-705 ASME SB-751 ASME SB-775 ASME SB-704 |
ASME SB-366 | ASME SB-564 AMS 5666 |

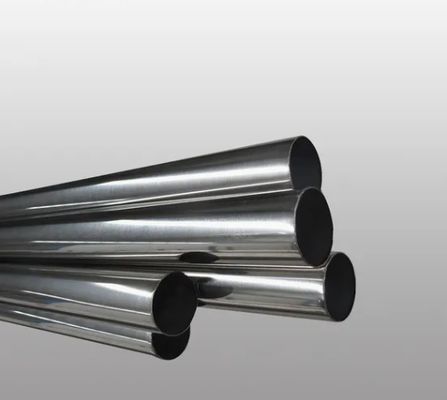

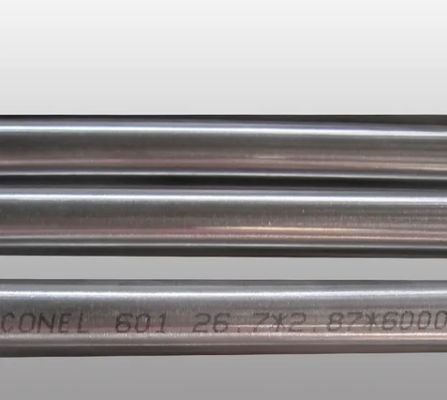

Product Photo
Packing & Shipping
Our Factory
Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
