Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: WUXI SYLAITH
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: ASTM A106 SA106
Minimum Order Quantity: 1 MT
Price: Negotiable
Packaging Details: Standard Waterproof Package
Delivery Time: 3~10 days
Payment Terms: 30%T/T in advance , T/T
Supply Ability: 8000 MT/Month
Detail Information
Application: Fluid Pipe Delivery Condition: Annealed|Normalized|Tempered
Grade: Grade A|Grade B|Grade C Material: Carbon Steel
Product Name: Seamless Steel Tubes Standard: ASTM A106|ASME SA106
Surface Treatment: Oil-dip|Varnish|Phosphating|Passivation|Shot Blasting Technique: Seamless|Cold Drawn
High Light:

seamless stainless steel tube

,

Seamless Steel Tubing


Product Description

Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106



Seamless stainless steel pipe is referred to as seamless pipe. The surface of the seamless stainless steel pipe is rough and the length is not fixed. Seamless stainless steel pipes are used for: boilers, central air conditioners, steel structures, machining, pipeline gas, fire protection, etc.

Product Name Temperature-resistant seamless steel pipe for high-pressure boiler
Standards ASTM A106 , ASME SA106
Technique bending, curling and similar forming processes
Available steel grades GradeA GradeB and GradeC.
Diameter 6mm to 350mm
Thickness 1 mm to 30 mm;
Length 5m~25m
Application seamless carbon steel pipe for high temperature sevice
Packing Beveled / black painting / plastic caps / in bundles / steel strips / wooden protection
Inspection and Test Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test.
Surface treatment Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark As requested
Delivery Condition Annealed, Normalized, Normalized and Tempered



Grade and Chemical Composition




Grade

C≤

Mn

P≤

S≤

Si≥

Cr≤

Cu≤

Mo≤

Ni≤

V≤

A

0.25

0.27-0.93

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

B

0.30

0.29-1.06

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08

C

0.35

0.29-1.06

0.035

0.035

0.10

0.40

0.40

0.15

0.40

0.08



Mechanical Properties



Grade

Rm Mpa Tensile Strength

Mpa
Yield Point

Elongation

Delivery Condition

A

≥330

≥205

20

Annealed

B

≥415

≥240

20

Annealed

C

≥485

≥275

20

Annealed


Dimension Tolerances



Pipe Type

Pipe Sizes

Tolerances

Cold Drawn

OD

≤48.3mm

±0.40mm

≥60.3mm

±1%mm

WT

±12.5%



Applications



For petroleum/ natural gas pipeline , for conveying water,drainage,coal gas, mineral slurry and other low-middle

pressure liquids.  Also for chemical industry, building structure,heat-supply and  pile driving projects.



Product Photo

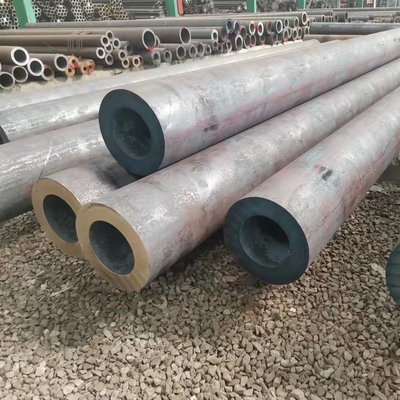

Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106 0



Factroy Pictures

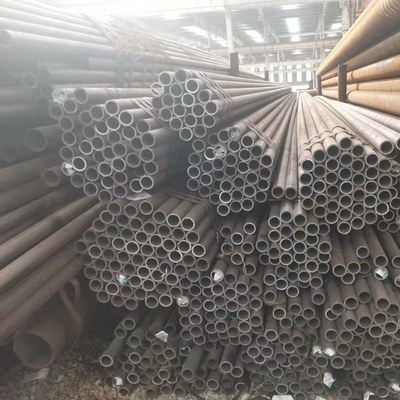

Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106 1

Quality Control



Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106 2



Steel Pipe & Tube Application



Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106 3

Package



Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106 4



Main Certificates



Round Annealed Seamless Stainless Steel Tube For High-pressure Boiler ASTM A106 SA106 5
