| Place of Origin: | Jiangsu China (Mainland) |
|---|---|
| Brand Name: | WUXI SYLAITH |
| Certification: | ISO9001 14001 BV TUV PED DNV etc |
| Model Number: | A192M |
| Minimum Order Quantity: | 1 MT |
| Price: | Negotiable |
| Packaging Details: | Standard Waterproof Package |
| Delivery Time: | 3~10 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 8000MT/Month |
| Application: | Fluid Pipe | Delivery Condition: | Annealed|Normalized|Tempered |
|---|---|---|---|
| Grade: | Grade A|A179|A192|Grade A1 | Material: | Carbon Steel |
| Product Name: | Seamless Steel Tubes | Section Shape: | Round |
| Standard: | ASTM A192|A192M | Surface Treatment: | Oil-dip|Varnish|Phosphating|Passivation|Shot Blasting |
| High Light: | round steel tubes,Seamless Steel Tubing |
||
A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick
The seamless steel pipe is made of perforated whole round steel, and the steel pipe without weld seam on the surface is called seamless steel pipe.
| Product Name | Seamless Carbon Steel Boiler Tubes For High-Pressure Service. |
| Steel Grade | Grade A192 |
| Standard | ASTM A192, A192M |
| Out Dimensions | 12.7mm – 114.3mm |
| Wall Thickness | 0.8mm - 15mm |
| Length | Fixed(6m,9m,12,24m) or normal length(5-12m) |
| Packing | Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection |
| Inspection and Test: | Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test. |
| Surface treatment | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
| Mark | As requested |
| Delivery Condition | Annealed, Normalized, Normalized and Tempered |
Chemical composition
Product | Ttem | Grade | Chemical composition | |||||||
C | Si | Mn | P.≤ | S.≤ | Cr | Ni | others | |||
Carbon steel | 1 | 10 | 0.07/0.13 | 0.17/0.37 | 0.35/0.65 | 0.03 | 0.03 | ≤0.15 | ≤0.30 | Cu≤0.25 |
2 | 20 | 0.17/0.23 | 0.17/0.37 | 0.35/0.65 | 0.03 | 0.03 | ≤0.25 | ≤0.30 | Cu≤0.25 | |
3 | A179 | 0.06/0.18 | - | 0.27/0.63 | 0.03 | 0.03 | - | - | - | |
4 | A192 | 0.06/0.18 | ≤0.25 | 0.27/0.63 | 0.03 | 0.03 | - | - | - | |
Mechanical properties
Item | Mark | Tensile property | Hardness | ||||
Extension strength Rm Mpa | Lower Yield strength Rel or Rp0.2 MPa | lower Yield strength ReL or Rp0.2 Mpa | |||||
Thickness | Thickness | ||||||
≤16 | >16 | <5.1 | ≥5.1 | ||||
≥ | ≤ | ||||||
1 | 10 | 335~475 | 205 | 195 | 24 | - | - |
2 | 20 | 410~530 | 245 | 235 | 20 | - | - |
3 | A179 | ≥325 | 180 | 35 | - | - | |
4 | A192 | ≥325 | 180 | 35 | 77HRB | 137HB | |
Applications
1. For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2. Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3. Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4. The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5. Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc

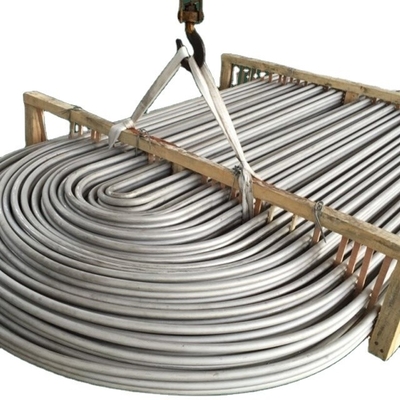

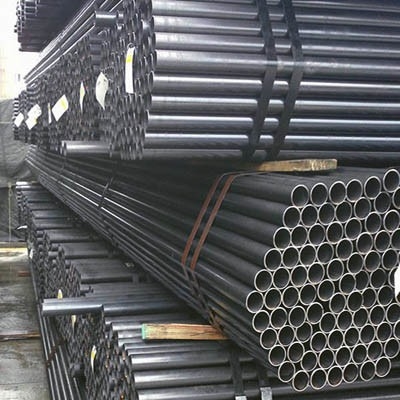

Product Photo
