Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM

Basic Information
Place of Origin: Jiangsu China (Mainland)
Brand Name: JIANGSU HUACHENG
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: HC
Minimum Order Quantity: 5MT
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Detail Information
Features: Thin Wall Application: Machinery
Certificate: PED|ISO|BV|TUV Delivery Condition: Heat Treatment
Product Name: Bearing Steel Tube Section Shape: Round
Standard: GB|SKF|ASTM|DIN|JIS|BS Technique: Seamless|Hot Rolled|Cold Drawn
High Light:

steel round tube

,

carbon steel tubing


Product Description

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM







Quick Detail:



Products: DIN 17230 100Cr2 Stainless Bearing Steel Tube
Standard: GB / SKF/ ASTM / DIN / JIS / BS
Size(mm):

OD:8mm ~ 101.6mm

WT:1.0mm ~ 10mm

Length: Fixed(6m,9m,12,24m) or normal length(5-12m)





Description:



Equivalent Grades:



Standard

GB/T 18254

CNS3014

GOST 801

JIS G4805

DIN 17230

ASTM A295

Grade

GCr4

SUJ1

SH4

SUJ1

100Cr2

K19526



Chemical Composition:

100Cr2

C

Si

Mn

P

S

Cr

Ni

Cu

%

0.90-1.25

0.15-0.35

0.25-0.45

≤0.030

≤0.025

0.40-0.60

<0.25

≤0.30


Raw Materail Processing

EAF+LF+VOD+ Hot Rolled/forged+Cut+Heat Treatment(optional)+UT+package.



Delivery Condition

Cold drawn, Hot rolled, Hot forged,Heat treatment.



Surface:

Black, Peeled (K12), Turned & Polished (H10, H11), Precision Ground (H9, H8).



Ultrasonic Test:

According to SEP 1921-84 3C/c.





High Carbon Chromium Alloy Bearing Steel Bar 100Cr2 Features:



1. Cleanliness and freedom from objectionable microscopic slag type inclusions.

2. Shallow decarburized surface.

3. Good surface quality.

4. Excellent micro-structure uniformity.

5. Tight tolerances, resulting in reduced machine time.

6. Wear resistance, long service life.





Applications:



1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.





Competitive Advantage:



Huacheng Pipe Making Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.





Factroy Pictures:

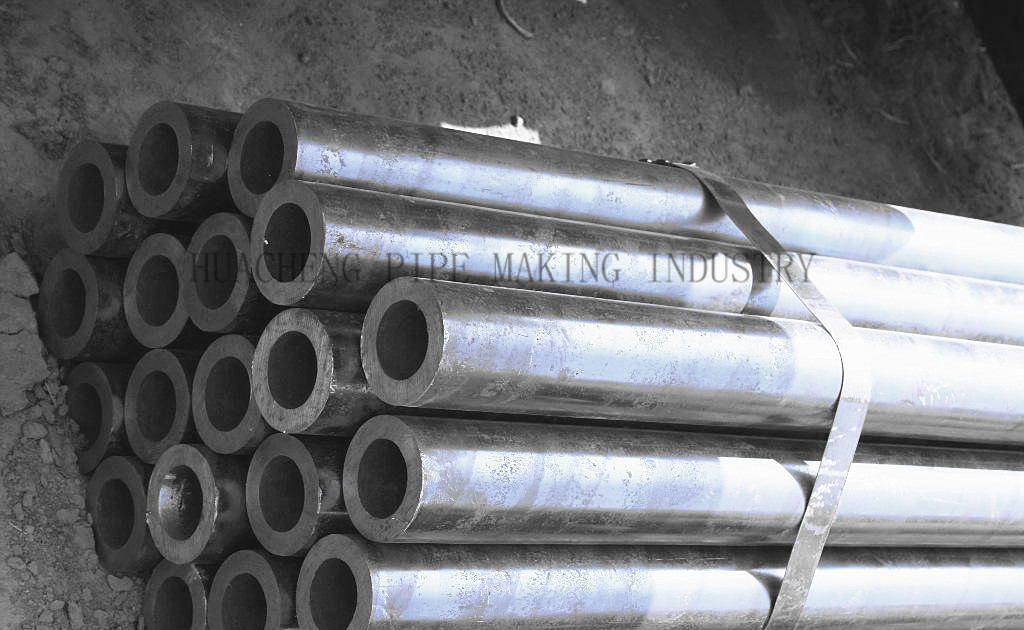

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 0



Pipe & Tube Processing

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 1

Factory Equipments:

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 2



Production Line:

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 3

Quality Control:



Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 4



Steel Pipe & Tube Application:

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 5

Package:

Export Standard / Wooden Box

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 6

Main Certificates:

PED ISO BV TUV etc.

Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 7

Main Customers:



Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 8Cold Drawn Polished Stainless Steel Tube Bearing DIN 17230 100Cr2 GB ASTM 9
